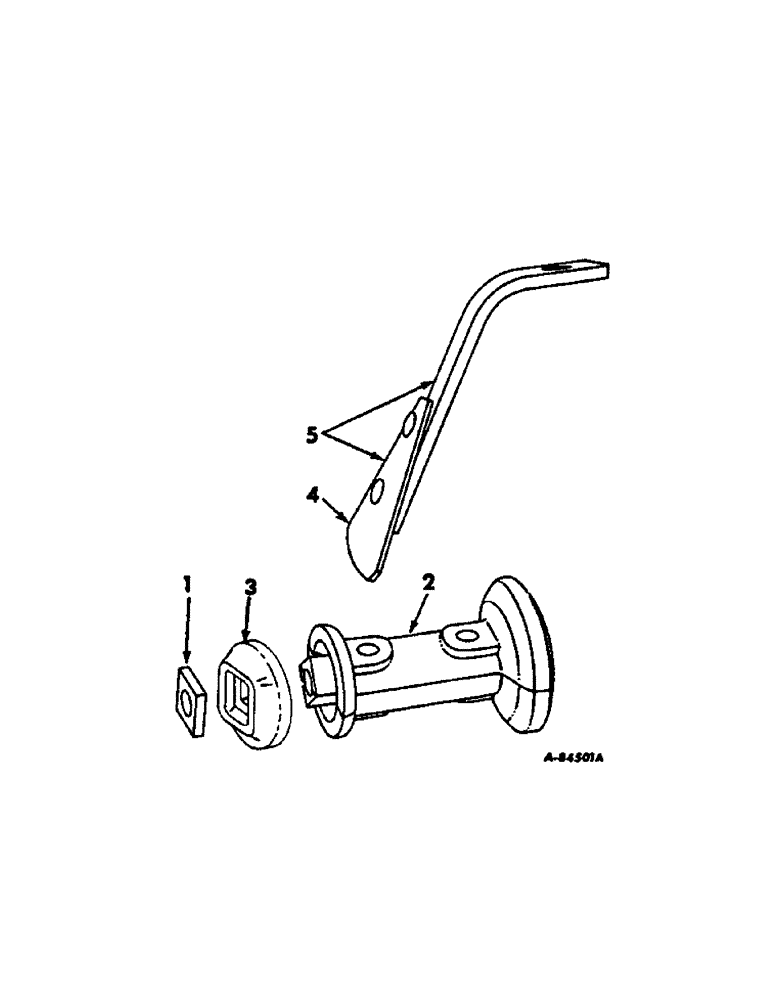

Запчасти Case IH 46 (G-10) - FURROW FILLER & FURROW FILLER DISK SCRAPER

1

466986R1

BLOCK

SPACER, arbor bolt head washer

2шт.

2

482970R2

SPOOL

furrow filler, will work for 466949R1

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2-13 x 3-1/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

18174R1

BOLT,Hex, 3/4"-10 x 2 1/2", G2

3/4-10 x 2-1/2 cd-pltd hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

3

P4165

WASHER, arbor bolt head

2шт.

4

465062R1

BLADE

scraper

2шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd

4шт.

5

465060R92

SCRAPER

ASSY, LH

1шт.

5

465061R92

SCRAPER

ASSY, RH

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, , Scrapers to scraper bar 1/2"

2шт.
