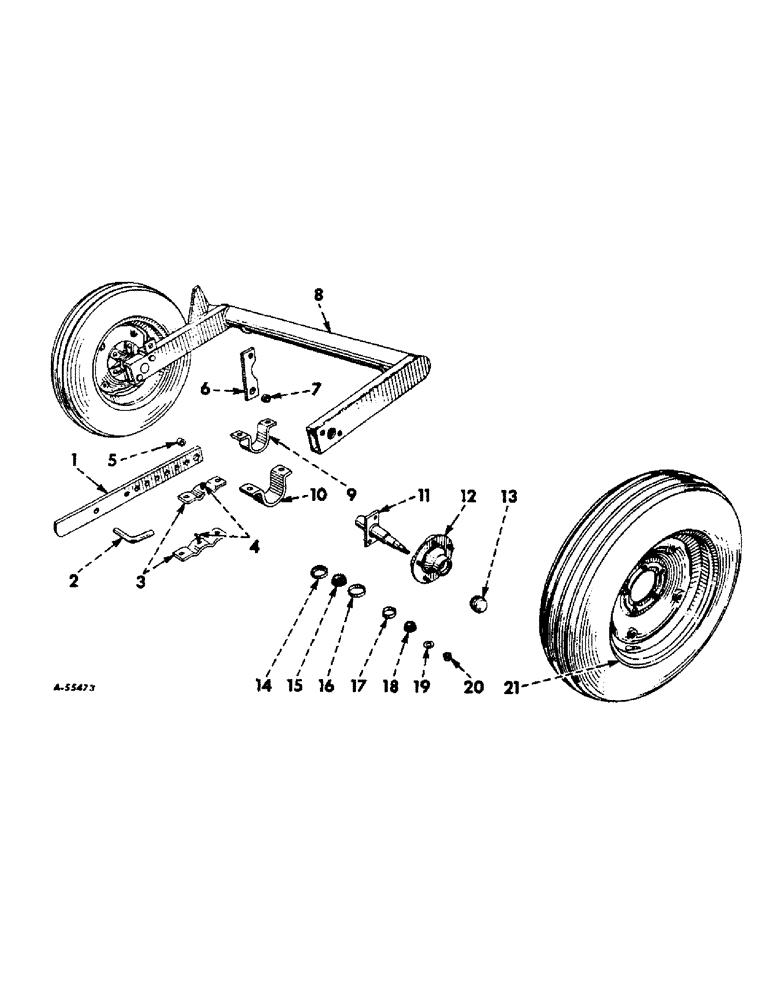

Запчасти Case IH 45V (F-5) - WHEEL SHAFT ASSEMBLY

1

653577R91

BAR ASSY, transport

1шт.

.

BOLT, 7/8 x 2-1/2 hex-hd mach

1шт.

.

NUT, 7/8

1шт.

.

WASHER, 7/8 lock

1шт.

2

653592R91

PIN ASSY, transport

1шт.

3

653499R1

BEARING, top axle

2шт.

4

1688B

FITTING, 1/8 45 deg elbow lub

2шт.

5

653560R1

BUSHING, transport bar

1шт.

6

653528R1

LEVER, cylinder

1шт.

.

BOLT, 1 x 3 hex-hd mach

1шт.

.

WASHER, 1 in. lock

1шт.

7

653557R1

BUSHING, cylinder lever

1шт.

8

653590R91

SHAFT ASSY, wheel

1шт.

9

653517R1

BEARING, axle bottom left

1шт.

.

BOLT, 3/4 x 2-1/2 hex-hd mach

2шт.

.

NUT, 3/4

2шт.

.

WASHER, 3/4 lock

2шт.

10

653504R1

BEARING, axle bottom right

1шт.

.

BOLT, 3/4 x 2-3/4 hex-hd mach

2шт.

.

NUT, 3/4

2шт.

.

WASHER, 3/4 lock

2шт.

11

653588R91

SPINDLE ASSY, wheel

2шт.

.

BOLT, 5/8 x 3-1/2 hex-hd mach

2шт.

.

NUT, 5/8

4шт.

.

WASHER, 5/8 lock

4шт.

12

653651R91

HUB, bolt, cup and nut assy, wheel

2шт.

13

651194R1

CAP

hub

2шт.

14

653632R91

SEAL

grase

2шт.

15

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, inner

2шт.

16

651817R1

BEARING CUP

CUP, inner

2шт.

17

651814R1

BEARING CUP

CUP, outer

2шт.

18

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer

2шт.

18

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

19

615168R1

WASHER

25/32 x 1-1/2 x 11 ga flat

2шт.

20

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16NF slotted hex.

2шт.

21

453767R92

DISK AND RIM ASSY

2шт.
