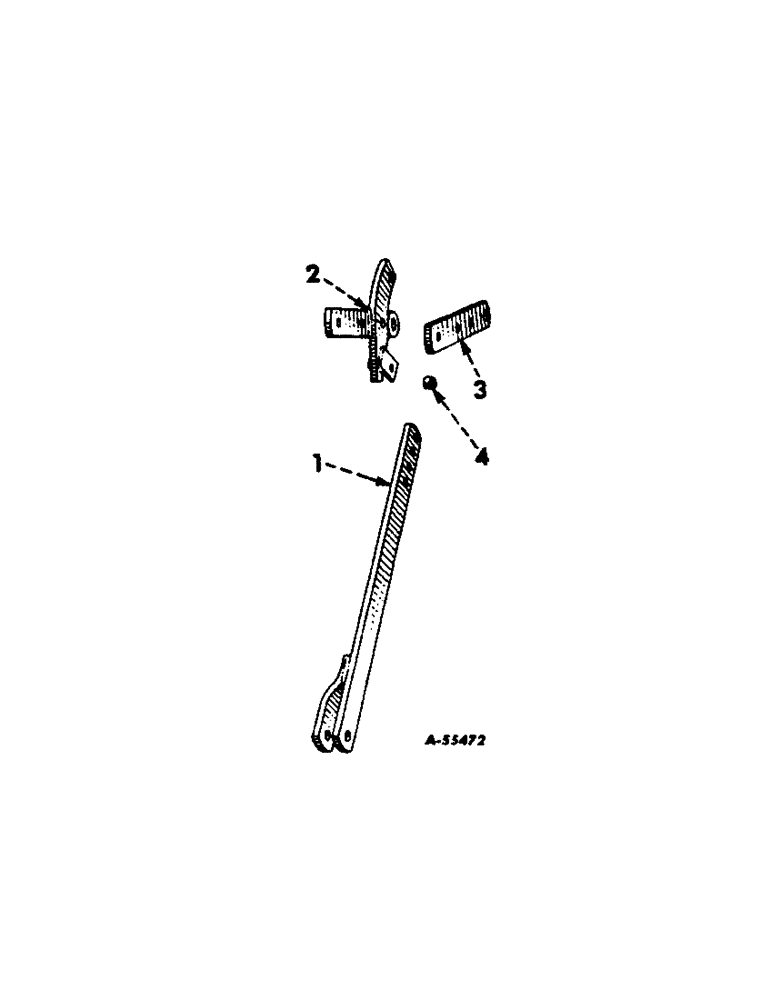

Запчасти Case IH 45 (F-4) - CYLINDER ANCHOR AND ADJUSTING BAR

1

653631R91

BAR ASSY, adjusting

1шт.

P14608

AXLE PIN

PIN, 3/4 x 2-3/4 dld-std-hd

1шт.

PIN, 1/4 x 1-3/4 cotter

1шт.

2

653569R91

LEVER ASSY, cylinder anchor

1шт.

457696R1

PIN

1 x 2-7/16 dld-std-hd

1шт.

PIN, 1/4 x 1-3/4 cotter

1шт.

Q1237

PIN,3/4" x 2 1/2"

3/4 x 2-1/2 dld-std-hd

1шт.

520175R1

CLIP

PIN, 3/16 x 2-7/8 qa cotter

1шт.

BOLT, 3/4 x 3 hex-hd mach

2шт.

NUT, 3/4

2шт.

WASHER, 3/4 lock

2шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 dld-std-hd

2шт.

PIN, 3/16 x 2-1/8 qa cotter

1шт.

3

653512R1

LEVER, cylinder anchor

1шт.

4

653557R1

BUSHING, cylinder lever

1шт.
