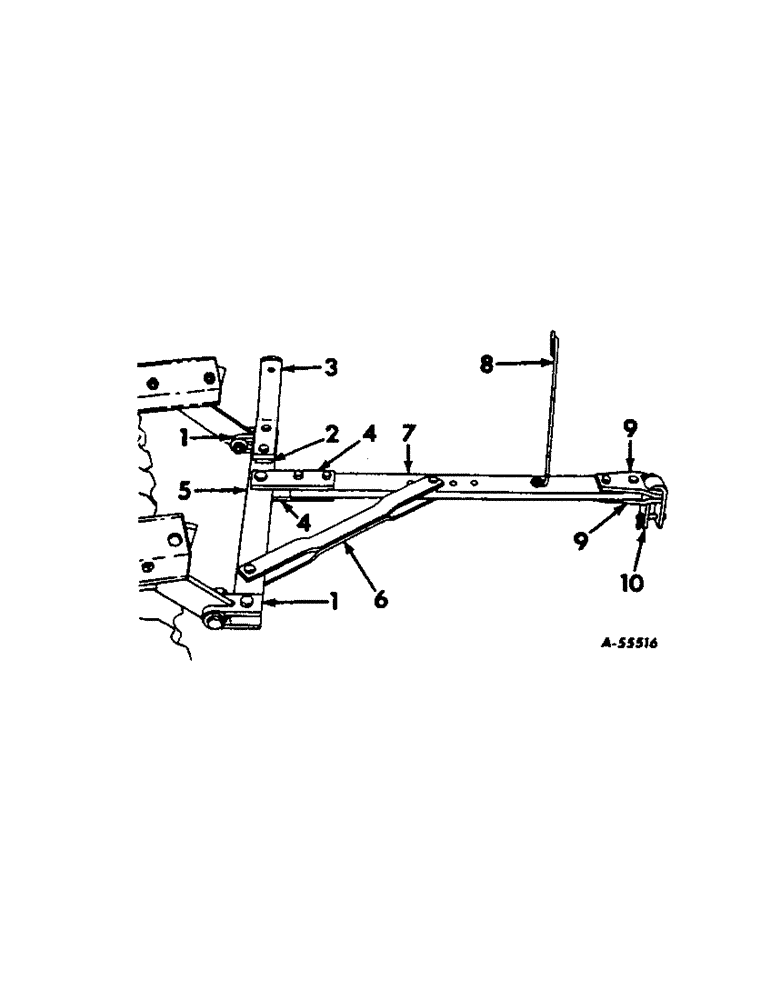

Запчасти Case IH 45 (F-4[A]) - TONGUE ASSEMBLY

1

653518R1

CLEVIS, hitch bar

2шт.

BOLT, 7/8 x 3-1/2 hex-hd mach

1шт.

BOLT, 7/8 x 4-1/2 hex-hd mach

1шт.

NUT, 7/8

2шт.

BOLT, 1 x 4-1/2 hex-hd mach

2шт.

NUT, 1 in.

2шт.

WASHER, 1 in. lock

2шт.

615231R1

WASHER

1-1/32 x 2-1/4 x 11 ga flat

4шт.

2

653513R1

SPACER, adjusting lever

1шт.

BOLT, 7/8 x 4 hex-hd mach

1шт.

NUT, 7/8

1шт.

WASHER, 7/8 lock

1шт.

3

653529R1

LEVER, adjusting

1шт.

4

653519R1

PLATE, rear tongue

2шт.

653495R1

SHIM, rear tongue plate, not illustrated

1шт.

BOLT, 3/4 x 3-1/2 hex-hd mach

2шт.

NUT, 3/4

2шт.

WASHER, 3/4 lock

2шт.

BOLT, 1 x 3-3/4 dld hex mach

1шт.

427648

NUT

1 in. slotted

1шт.

PIN, 1/8 x 2 cotter

1шт.

5

653538R1

BAR, hitch

1шт.

6

653570R92

BRACE ASSY, tongue

1шт.

Q964

HEADED PIN,7/8" x 2.734"

PIN, 7/8 x 3 headed

2шт.

PIN, 1/4 x 1-3/4 cotter

1шт.

7

653539R1

TONGUE

1шт.

8

651793R1

SUPPORT

flexible hose

1шт.

BOLT, 5/8 x 2-1/2 hex-hd mach

1шт.

NUT, 5/8

1шт.

WASHER, 5/8 lock

1шт.

WASHER, 21/32 x 1-1/2 x ga flat

1шт.

9

653526R1

PLATE, hitch

2шт.

BOLT, 3/4 x 3-1/2 hex-hd mach

2шт.

NUT, 3/4

2шт.

WASHER, 3/4 lock

2шт.

10

653514R1

CLEVIS, hitch

1шт.

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN, 3/4 x 3-1/4 dld-std-hd

1шт.

520175R1

CLIP

PIN, 3/16 x 2-7/8 qa cotter

1шт.
