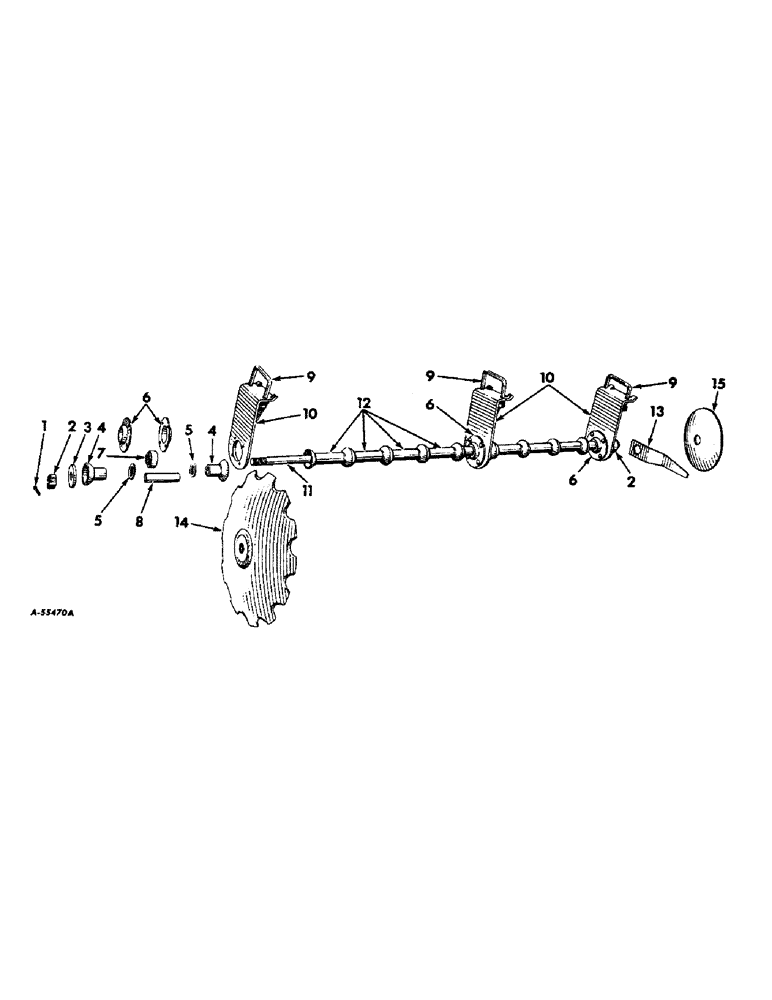

Запчасти Case IH 45 (F-2) - GANGS

1

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

2

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT, 1-1/2-6NC slotted hex.

4шт.

3

961618R1

WASHER, gang bolt large, 1960 and since

2шт.

4

653568R91

SPOOL, bearing end long, Serial Range: 1959-1960

12шт.

4

462598R2

SPOOL, bearing end large, 1960 and since

6шт.

4

462599R2

SPOOL, bearing end small, 1960 and since

6шт.

5

465280R1

WASHER, anti-wrap, 1961 and since

12шт.

5

653497R2

WASHER, anti-wrap, order 465280R1

12шт.

6

465281R1

RETAINER, bearing, 1961 and since

12шт.

6

653496R1

RETAINER, bearing, order 465281R1

12шт.

BOLT, 1/2 x 1-1/2 crg

24шт.

NUT, 1/2

24шт.

WASHER, 1/2 lock

24шт.

7

ST424

BEARING

ASSY, ball

6шт.

8

653562R1

BUSHING, arbor bolt filler, Serial Range: 1959-1960

6шт.

8

462604R1

SPACER

BUSHING, arbor bolt filler, 1960 and since

6шт.

9

653486R1

U-BOLT, gang

6шт.

NUT, 7/8

12шт.

WASHER, 7/8 lock

12шт.

10

653587R92

STANDARD ASSY, bearing

6шт.

11

653490R2

BOLT, arbor, 2 used for 6 ft. 9 in.

2шт.

11

653491R2

BOLT, arbor, 2 used for 7 ft. 6 in.

2шт.

11

653492R2

BOLT, arbor, 2 used for 8 ft. 3 in.

2шт.

11

653493R2

BOLT, arbor, 2 used for 9 ft.

2шт.

11

653494R2

BOLT, arbor, 2 used for 9 ft. 9 in.

2шт.

958279R1

WASHER

gang nut, 1960 and since

2шт.

12

956850R1

SPOOL, spacing, 1960 and since, 10 used for 6 ft. 9 in., 12 used for 7 ft. 6 in., 14 used for 8 ft. 3 in., 16 used for 9 ft., and 18 used for 9 ft. 9 in.

1шт.

13

653509R1

WRENCH, gang

1шт.

14

960702R2

DISC

DISK, 22 in. 9 ga solid

1шт.

14

960703R2

DISC

DISK, 22 in. 9 ga notched

1шт.

14

960704R2

DISC

DISK, 22 in. 9 ga solid

1шт.

14

956735R2

DISC

DISK, 22 in. 9 ga notched

1шт.

14

961679R2

DISC

DISK, 24 in. 8 ga solid

1шт.

14

960718R2

DISC

DISK, 24 in. 8 ga solid

1шт.

14

960705R2

DISC

DISK, 24 in. 8 ga notched

1шт.

14

956736R2

DISC

DISK, 24 in. 8 ga notched

1шт.

14

960968R4

DISC

DISK, 22 IN. 8 ga solid

1шт.

14

961526R4

DISC

DISK, 22 in. 8 ga notched

1шт.

14

956702R4

DISK HARROW

24SR4

1шт.

14

961529R2

DISC

DISK, 24 in. 7 ga notched, W-1-1/2 rd hole, 18 used for 6 ft. 9 in., 20 used for 7 ft. 6 in., 22 used for 8 ft. 3 in., 24 used for 9 ft., 26 used for 9 ft. 9 in.

1шт.

15

961730R1

LARGE PLATE

PLATE, disk blade back-up, 1960 and since

2шт.

465277R91

SUPPORT, bearing standard, for use with ST424 bearing

6шт.
