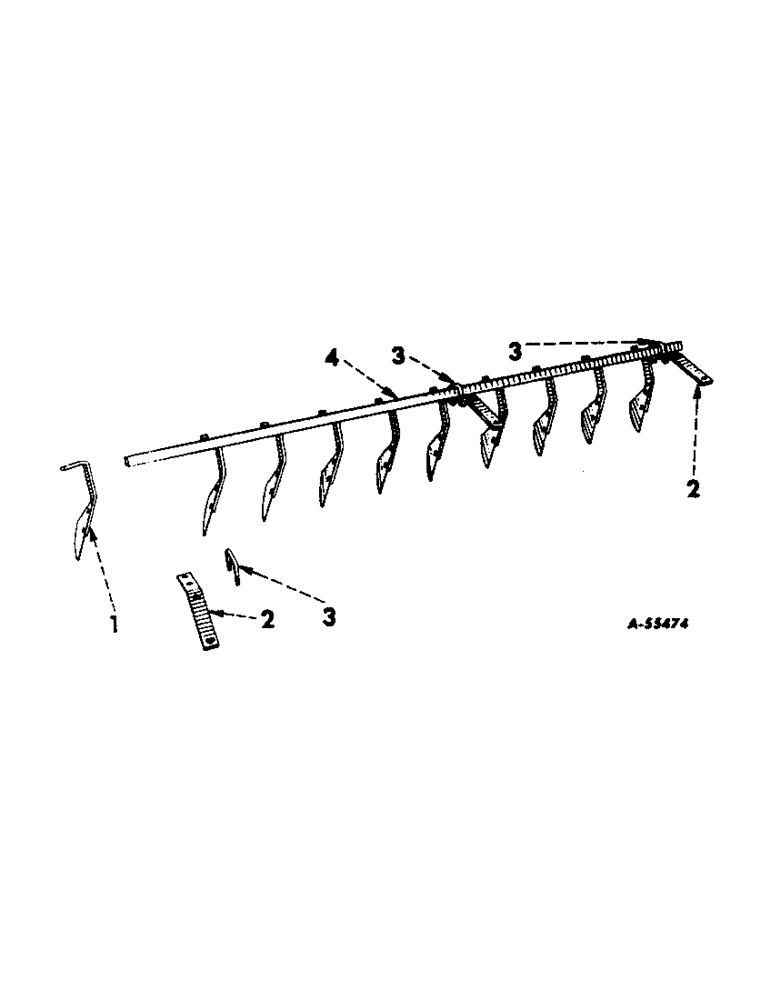

Запчасти Case IH 45 (F-7) - SCRAPERS

1

653604R92

SCRAPER ASSY, left, 8 for 6 ft. 9 in., 9 for 7 ft. 6 in. 10 for 8 ft. 3 in., 11 for 9 ft., 12 for 9 ft. 9 in.

1шт.

1

653605R92

SCRAPER ASSY, right, 8 for 6 ft. 9 in., 9 for 7 ft. 6 in., 10 for 8 ft. 3 in., 11 for 9 ft., 12 for 9 ft. 9 in.

1шт.

RIVET, 3/8 x 1-1/8 truss hd, 32 for 6 ft 9 in., 36 for 7 ft. 6 in., 40 for 8 ft. 3 in., 44 for 9 ft., 48 for 9 ft. 9 in.

1шт.

BOLT, 5/8 x 1-1/2 crg, 16 for 6 ft. 9 in., 18 for 7 ft. 6 in., 20 for 8 ft. 3 in., 22 for 9 ft., 24 for 9 ft. 9 in

1шт.

NUT, 5/8, 16 for 6 ft. 9 in., 18 for 7 ft. 6 in., 20 for 8 ft. 3 in., 22 for 9 ft., 24 for 9 ft. 9 in.

1шт.

WASHER, 5/8 lock, 16 FR, 16 for 6 ft., 18 for 7 ft. 6 in., 20 for 8 ft. 3 in., 22 for 9 ft., 24 for 9 ft. 9 in.

1шт.

2

653597R1

BRACKET, scraper bar

6шт.

3

653595R1

U-BOLT, scraper bar

6шт.

NUT, 5/8

12шт.

WASHER, 5/8 lock

12шт.

4

653599R1

BAR, scraper, 2 for 6 ft. 9 in.

1шт.

4

653600R1

BAR, scraper, 2 for 7 ft. 6 in.

1шт.

4

653601R1

BAR, scraper, 2 for 8 ft. 3 in.

1шт.

4

653602R1

BAR, scraper, 2 for 9 ft.

1шт.

4

653603R1

BAR, scraper, 2 for 9 ft. 9 in.

1шт.
