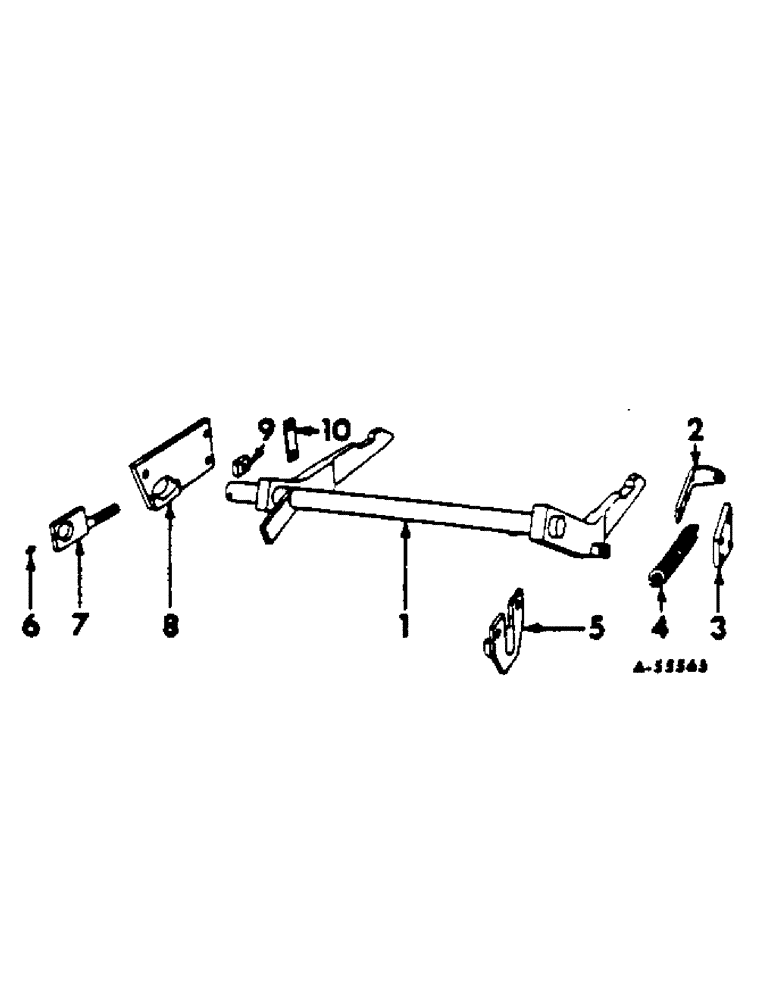

Запчасти Case IH 312 (U-03) - COUPLING BEAM

1

526832R91

BEAM, coupling

1шт.

5/16 x 2-1/2 SELF-OPENING COT PIN

1шт.

1-25/32 x 2-1/2 x 11 GA WASHER

1шт.

2

526828R1

RETAINER, hold-up spring

1шт.

3

526829R1

STOP, coupling beam right

1шт.

4

PO27

SPRING

coupling beam hold-up

1шт.

5

526823R11

SPRING, right

1шт.

5/8 x 3 CAP SCREW

1шт.

3/4 x 3-1/2 CAP SCREW

1шт.

5/8 NUT

1шт.

3/4 NUT

1шт.

5/8 LOCK WASHER

1шт.

3/4 LOCK WASHER

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

1шт.

7

526830R11

SCREW, landing adjusting

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

8

526826R11

SUPPORT, left

1шт.

3/4 x 3-1/2 CAP SCREW

1шт.

3/4 NUT

1шт.

3/4 LOCK WASHER

1шт.

9

526850R1

STOP, coupling beam left

1шт.

10

526851R1

CLIP, left coupling beam stop

1шт.

5/8 x 2-3/4 CAP SCREW

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.
