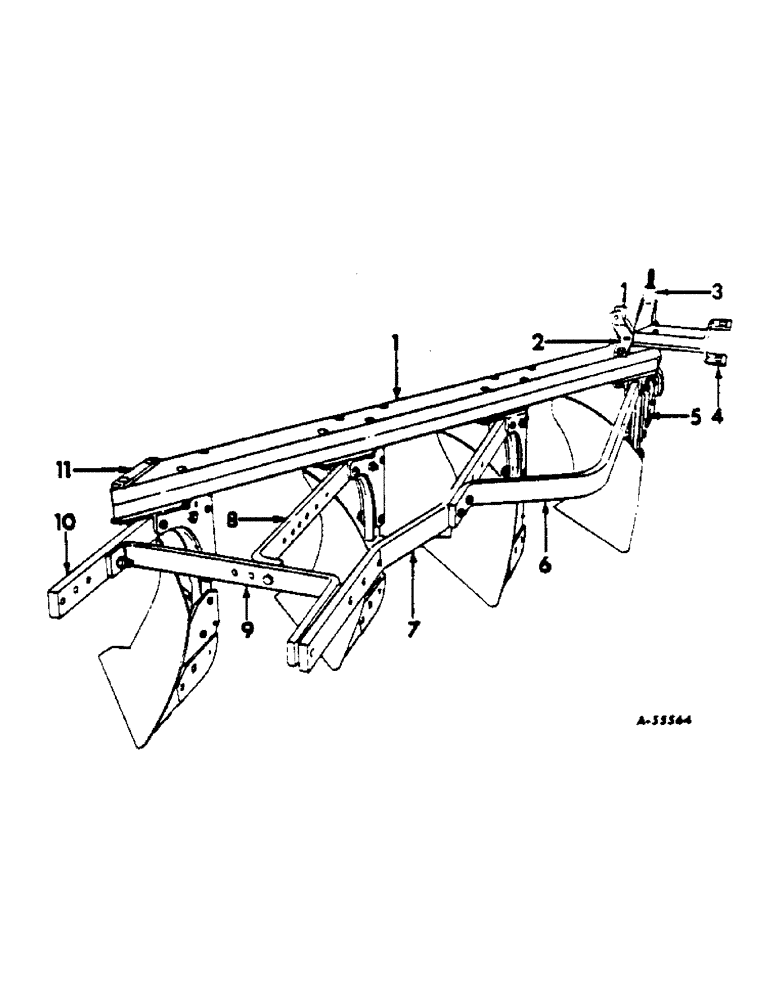

Запчасти Case IH 312 (U-02) - FRAME

1

464190R91

FRAME, 12 in. main, 312 plow

1шт.

1

464187R91

FRAME, 14 in. main, 312 plow

1шт.

1

464193R91

FRAME, 16 in. main, 312 plow

1шт.

1

526849R91

FRAME, 12 in. main, 412 plow

1шт.

1

525387R91

FRAME, 14 in. main, 412 plow

1шт.

1

525388R91

FRAME

16 in. main, 412 plow

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

10шт.

521530R1

5/8 x 5-3/4 CRG BOLT

1шт.

5/8 NUT

11шт.

5/8 LOCK WASHER

11шт.

2

526445R1

STOP, rear wheel transport axle

1шт.

526453R1

5/8 x 6 CRG BOLT

2шт.

3/4 x 2 HEX-HD CAP SCREW

1шт.

5/8 NUT

2шт.

218443

NUT

3/4 JAM NUT

1шт.

5/8 LOCK WASHER

2шт.

3

WHEEL, transport, for components see list of parts under details of transport wheels

1шт.

4

WHEEL, gauge, for components see list of parts under details of gauge wheels

1шт.

5

BEAMS, for components see list of parts under details of rigid or trip beams

1шт.

6

526848R1

RAIL, 12 in. frame 4th

1шт.

6

525366R1

RAIL, 14 in. frame 4th

1шт.

6

525367R1

RAIL, 16 in. frame 4th

1шт.

5/8 x 2-3/4 CAP SCREW

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

7

525984R2

RAIL, 12 in. frame 3rd

1шт.

7

526816R1

RAIL, 14 in. frame 3rd

1шт.

7

526817R1

RAIL, 16 in. frame 3rd

1шт.

5/8 x 3-3/4 CAP SCREW

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

8

524464R1

RAIL, frame 2nd

1шт.

5/8 x 2-3/4 CAP SCREW

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

9

524466R2

SPREADER, front

1шт.

10

524463R1

RAIL, frame 1st

1шт.

11

525159R1

STRAP, 12 in. frame reinforcing front

1шт.

11

524469R1

STRAP, 14 and 16 in. frame reinforcing front, also rear when gauge wheel is not used

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

524597R1

BAR

SPACER, 1st rail

1шт.

5/8 x 3-1/4 CAP SCREW

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

524465R1

SUPPORT

SPACER, frame rail

1шт.

5/8 x 3-1/4 CAP SCREW

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit

1шт.
