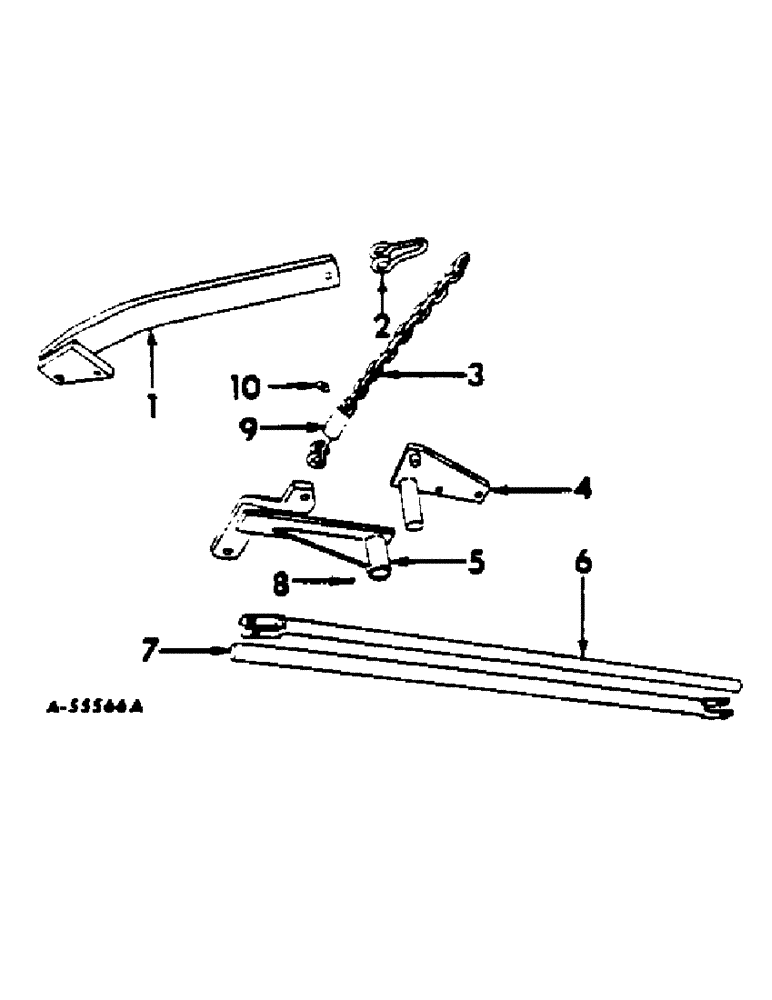

Запчасти Case IH 312 (U-13) - TRANSPORT WHEEL LIFT ROD

1

461688R11

ARM, lift

1шт.

5/8 x 1-3/4 CAP SCREW

2шт.

5/8 NUT

2шт.

2

526571R1

CLEVIS, chain

1шт.

618964R1

5/8 x 2-1/8 DLD-STD-HD PIN

1шт.

520175R1

CLIP

SELF-OPENING COT PIN

1шт.

21/32 x 1-1/4 x 16 GA WASHER

1шт.

3

526853R91

CLEVIS W/CHAIN

1шт.

KI156

5/8 x 2-1/8 DLD-STD-HD PIN, HEAT-TREATED

1шт.

3/16 x 1 SELF-OPENING COT PIN

1шт.

21/32 x 1-1/4 x 16 GA WASHER

1шт.

4

526840R91

PIVOT, bellcrank

1шт.

5/16 x 2-1/2 SELF-OPENING COT PIN

1шт.

5/8 x 2-1/2 CAP SCREW

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

1-17/32 x 2-1/4 x 11 GA WASHER

1шт.

5

526818R91

BELLCRANK, transport wheel rear raising

1шт.

6

526504R91

ROD, lift

1шт.

PG141

PIN

1/2 x 2 DLD-STD-HD PIN

1шт.

Q1335

AXLE PIN

3/4 x 2 DLD-STD-HD-PIN

1шт.

3/16 x 1 SELF-OPENING COT PIN

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

7

526839R11

PIPE, lift

1шт.

Q1335

AXLE PIN

3/4 x 2 DLD-STD-HD PIN

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub, in bellcrank

1шт.

9

461689R1

PIPE, chain stiffener

1шт.

10

PO25868A

WASHER, chain indicator

2шт.
