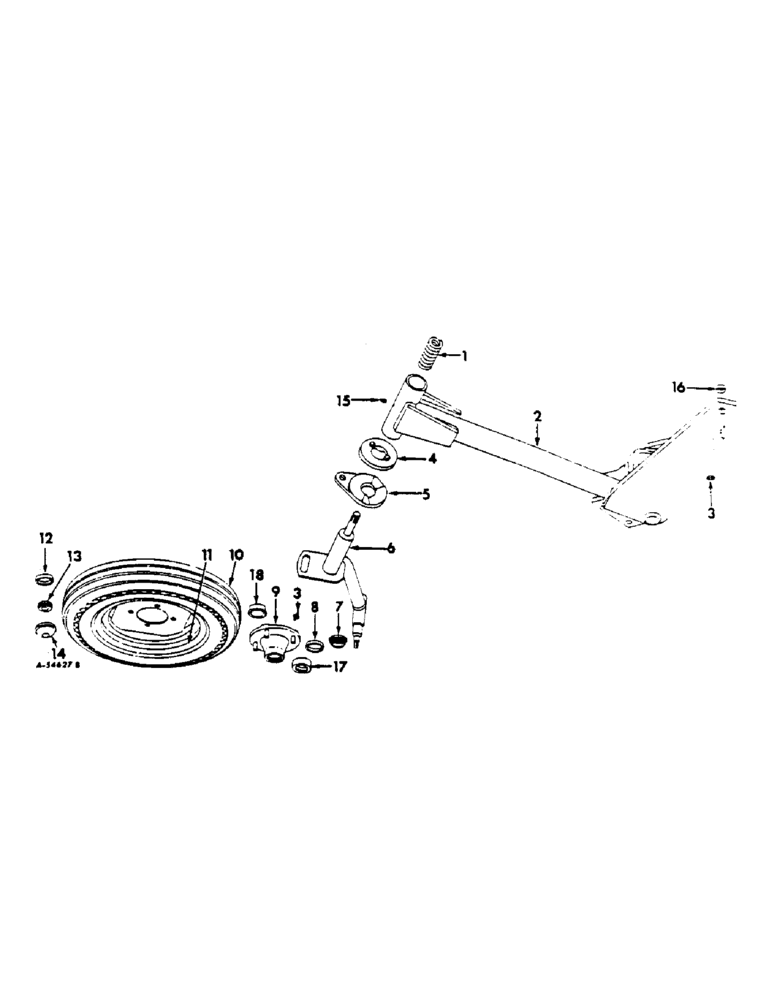

Запчасти Case IH 312 (U-12) - TRANSPORT WHEEL

1

C13263

SPRING

transport axle

1шт.

2

526407R91

BRACKET, rear axle, order 463060R19 and 463061R1, 1959 & up

1шт.

2

463060R91

BRACKET, rear axle, 1960 & up

1шт.

.

5/8 NUT

2шт.

.

5/8 x 4-1/2 HEX-HD CAP SCREW

2шт.

.

5/8 LOCK WASHER

2шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub

1шт.

4

526425R1

LOCK-OUT, transport wheel top

1шт.

.

5/8 x 1-1/4 HEX-HD MACH BOLT

1шт.

.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

.

21/32 x 1-1/4 x 11 GA WASHER

1шт.

5

526426R1

LOCK-OUT, transport wheel bottom

1шт.

6

526420R91

AXLE, transport wheel, Serial Range: 1959-1960

1шт.

6

467482R92

AXLE, transport wheel, 1961 & up

1шт.

.

69442D

NUT

3/4-16UNF SLT NUT

1шт.

.

218443

NUT

3/4 JAM NUT

2шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

.

615168R1

WASHER

25/32 x 1-1/2 x 11 GA WASHER

1шт.

.

575814R1

WASHER

25/32 x 2 x 11 GA WASHER

1шт.

7

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, transport wheel hub, inner cone, 1959 to 1962

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, transport wheel hub inner cone, 1963 & up

1шт.

8

651817R1

BEARING CUP

BEARING, transport wheel hub inner cup

1шт.

8

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

9

472220R11

HUB

W/SET SCREW, 1963 & up

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 x 15/16 CONICAL-HD BOLT

4шт.

9

461892R31

HUB W/BOLT, cups and nuts, Serial Range: 1961-1962

1шт.

9

652381R91

HUB

W/BOLT, cups and nuts, Serial Range: 1959-1960

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2UNF x 1-5/8 SPECIAL BOLT

4шт.

.

453770R1

WHEEL NUT

1/2UNF SLT NUT

4шт.

10

TIRE, 4 ply ribbed implement pneumatic, 4.00 x 12

1шт.

11

525286R92

WHEEL, transport

1шт.

12

651814R1

BEARING CUP

BEARING, transport wheel hub outer cup

1шт.

13

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, transport wheel hub outer cone

1шт.

13

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

14

651194R1

CAP

hub cap

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

16

463061R1

BUSHING, for use with mechanical lift

1шт.

17

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

18

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.

.

TUBE, pneumatic, 4.00 x 12

1шт.
