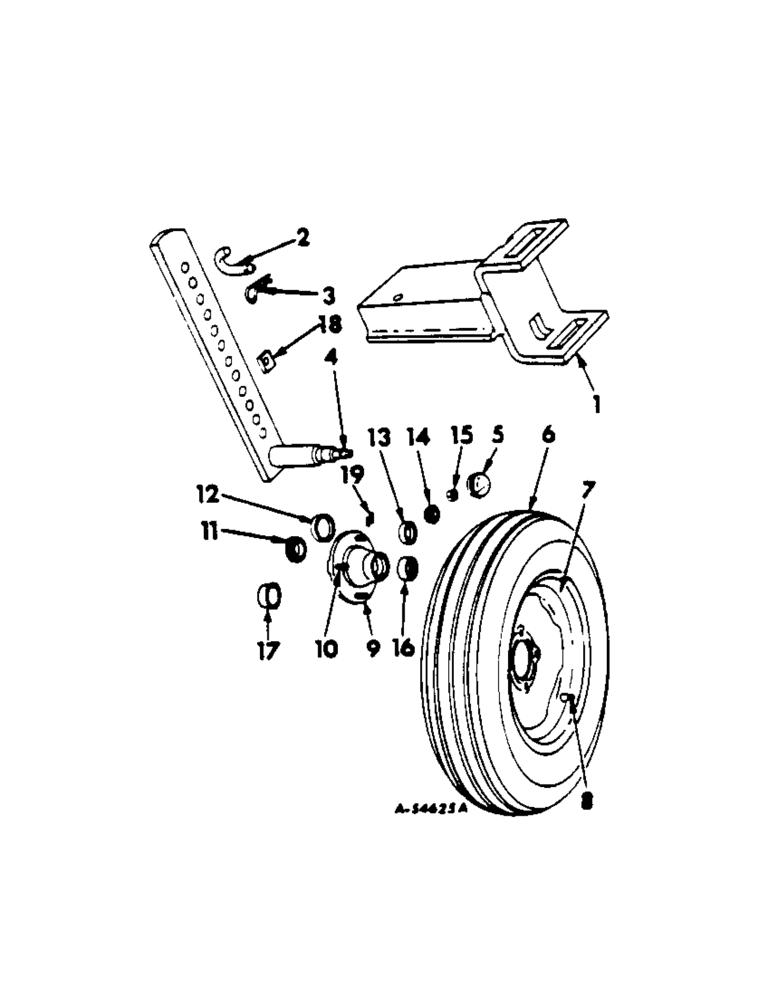

Запчасти Case IH 312 (U-11[A]) - GAUGE WHEEL AND BRACKET

1

526503R91

BRACKET, for 312 plows

1шт.

.

5/8 NUT

1шт.

.

3/8 x 7-1/2 CAP SCREW

1шт.

.

5/8 LOCK WASHER

1шт.

2

520620R1

AXLE PIN

PIN, retaining

1шт.

3

520175R1

CLIP

PIN, quick-attachable cot

1шт.

4

467474R92

SUPPORT ASSY.

STANDARD W/SPINDLE, 1961 & up

1шт.

4

526499R11

SUPPORT ASSY.

STANDARD W/SPINDLE, Serial Range: 1959-1960

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

5

651194R1

CAP

hub

1шт.

6

TIRE, ribbed implement pneumatic, 6.70 x 15

1шт.

6

TIRE, pneumatic, 7.00 x 14 in.

1шт.

6

TIRE, pneumatic, 7.50 x 14 in.

1шт.

6

TIRE, pneumatic, 8.00 x 14 in.

1шт.

7

455169R92

WHEEL

15 x 4-1/2 KB, for 6.70 x 15 tire

1шт.

7

463036R1

WHEEL (STEERING)

WHEEL, 14 x 5 KB, for 14 tire

1шт.

8

TUBE, pneumatic, 6.70 x 15

1шт.

8

TUBE, pneumatic, 7.00 x 14

1шт.

8

TUBE, pneumatic, 7.50 x 14

1шт.

8

TUBE, pneumatic, 8.00 x 14

1шт.

9

652381R91

HUB

W/BOLTS, cups and nuts, Serial Range: 1959-1960

1шт.

9

461892R31

HUB W/BOLTS, cups and nuts, Serial Range: 1961-1962

1шт.

9

472220R11

HUB

ASSY, wheel, 1963 & up

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2UNF x 5/16 CONICAL-HD BOLT

4шт.

10

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2UNF x 1-5/8, SPECIAL, 1959 TO 1962

4шт.

.

453770R1

WHEEL NUT

1/2UNF CONICAL NUT

4шт.

11

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, inner cone, 1959 to 1962

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone, 1963 & up

1шт.

12

651817R1

BEARING CUP

BEARING, inner cup

1шт.

12

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

13

651814R1

BEARING CUP

BEARING, outer cup

1шт.

14

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

14

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

15

69442D

NUT

3/4 unf slt

1шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

17

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.

18

473155R1

SPACER, gauge wheel bracket

1шт.

19

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, 1963 & up

1шт.
