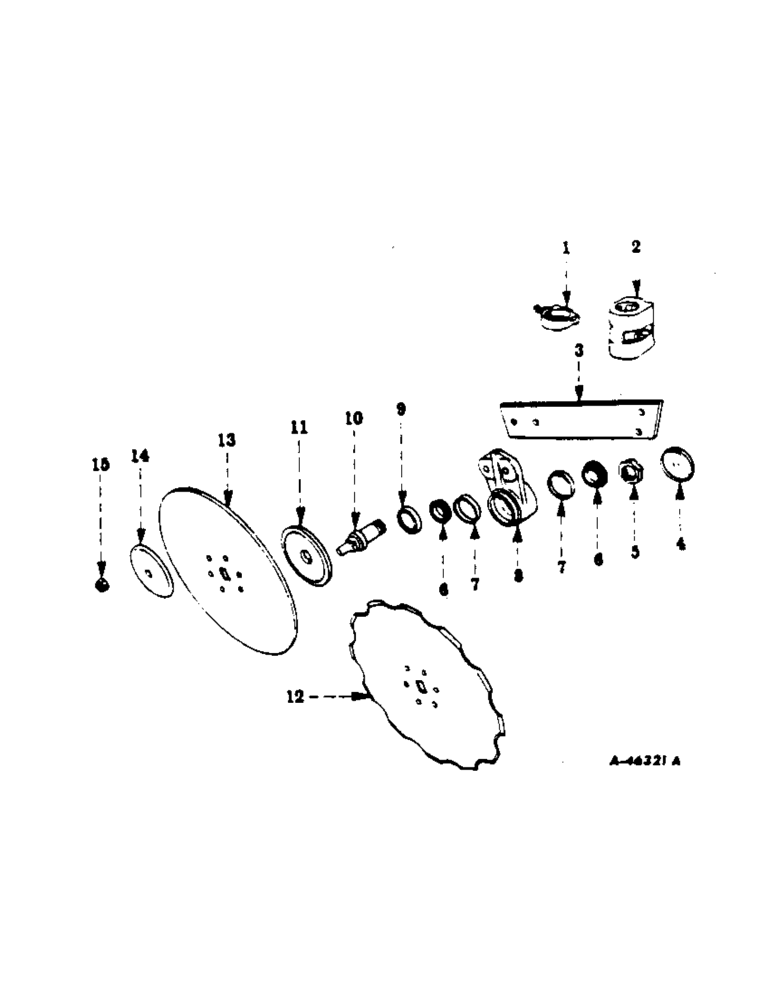

Запчасти Case IH 312 (U-06) - HEAVY-DUTY ROLLING COLTERS, ONE PER FURROW

1

523345R11

NO LONGER SERVICED

COLLAR W/SET SCREW, stop

1шт.

.

102908

BOLT

7/16 x 1-1/4 CUP-PT SQ-HD SET SCREW

1шт.

2

523022R2

BEARING

colter arm, order, brg, 462273R1 & attaching parts

1шт.

.

1/2 NUT

4шт.

.

526350R1

1/2 x 1-1/2 SPECIAL CAP SCREW

4шт.

.

1/2 LOCK WASHER

4шт.

2

462273R1

NO LONGER SERVICED

BEARING, colter arm

1шт.

.

7/16-20UNF NUT

1шт.

.

19508R1

LOCK NUT,5/8"-11, GB

5/8 STOP NUT

1шт.

.

7/16-20 x 1-3/4 HEX-HD CAP SCREW

1шт.

.

5/8 x 1-3/4 HEX-HD CAP SCREW

1шт.

.

7/16 LOCK WASHER

1шт.

3

462274R1

BAR

ARM, colter, 17 in.

1шт.

3

523024R3

ARM, colter, 17 in., without shear bolt feature

1шт.

3

471167R2

BAR

ARM, colter, 20 in.

1шт.

4

518842R1

CAP

housing

1шт.

5

519250R1

SLOTTED NUT

1-1/4 unf slotted

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING, housing cup

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

523019R3

HOUSING

bearing

1шт.

.

1/2 NUT

2шт.

.

1/2 x 2-1/4 CAP SCREW

2шт.

.

1/2 LOCK WASHER

2шт.

9

523027R91

OIL SEAL

oil

1шт.

10

523023R1

SPINDLE

1шт.

.

1/8 x 1-3/4 COT PIN

1шт.

11

523020R2

SUPPORT ASSY.

SUPPORT, blade inside

1шт.

12

523026R2

DISC

BLADE, 17 in. colter notched

1шт.

12

471166R1

COULTER

BLADE, 20 in. colter notched

1шт.

13

523025R2

HALF BLADE

BLADE, 17 in. colter plain

1шт.

13

474251R1

DISC

BLADE, 20 in. colter plain

1шт.

13

469191R2

COULTER

BLADE, 17 in. rippled edge

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

523021R1

WASHER

SUPPORT, blade outside

1шт.

15

361011R1

NUT

3/4unf stop

1шт.
