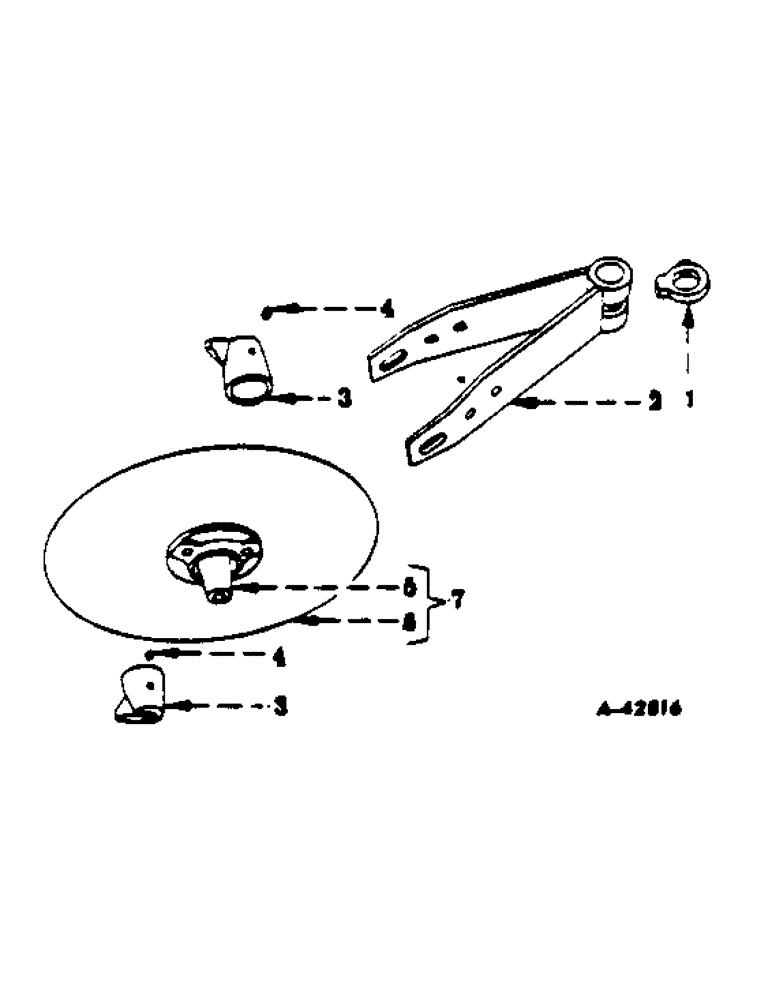

Запчасти Case IH 312 (U-05) - ROLLING COLTERS, ONE PER FURROW

1

519345R21

COLLAR

W/SET SCREW, stop

1шт.

102907

SET SCREW,Sq Hd, 7/16"-14 x 1"

9/16 x 1 CUP-PT SQ-HD SET SCREW

1шт.

2

522252R93

YOKE

colter

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

1/2 NUT

1шт.

1/2 x 7-3/4 CAP SCREW

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 GA WASHER

2шт.

3

521157R1

BUSHING,13.49mm ID x 52.39mm OD x 69.85mm L

left

1шт.

3

521158R1

BUSHING

right

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive lub

2шт.

REF NO 4 - A 5/16 FITTING IS PART NO. 219-15

1шт.

5

468727R1

HUB

1962 & up

2шт.

5/16 x 1-3/4 RD-HD RIVET

6шт.

6

PO19619

BLADE, notched, 16 in. dia, Serial Range: 1959-1961

1шт.

6

468724R1

BLADE

notched, 16 in. dia, Serial Range: 1962-1963

1шт.

6

523026R2

DISC

BLADE, notched, 17 in. dia, 1964 & up

1шт.

6

PO15788

BLADE, notched, 18 in. dia, Serial Range: 1959-1961

1шт.

6

468726R1

COULTER

BLADE, notched, 18 in. dia, 1962 & up

1шт.

6

PO11601

BLADE

plain, 16 in. dia, Serial Range: 1959-1961

1шт.

6

468723R1

COULTER

BLADE, plain, 16 in. dia, Serial Range: 1962-1963

1шт.

6

523025R2

HALF BLADE

BLADE, plain, 17 in. dia, 1964 & up

1шт.

6

523025R2

HALF BLADE

BLADE, plain, 18 in. dia, Serial Range: 1959-1961

1шт.

6

468725R1

COULTER

BLADE, plain, 18 in. dia, 1962 & up

1шт.

6

469191R2

COULTER

BLADE, rippled edge, 17 in. dia, Serial Range: 1962-1963

1шт.

7

PO20280

BLADE W/HUBS, notched, 16 in. dia, Serial Range: 1959-1961

1шт.

7

478721R91

BLADE

W/HUBS, notched, 17 in. dia, 1964 & up

1шт.

7

PO15789

BLADE W/HUBS, notched, 18 in. dia, Serial Range: 1959-1961

1шт.

7

468726R11

NO LONGER SERVICED

BLADE W/HUBS, notched, 18 in. dia, 1962 & up

1шт.

7

PO20274

BLADE W/HUBS, plain, 16 in. dia, Serial Range: 1959-1961

1шт.

7

468723R11

COULTER

BLADE W/HUBS, plain, 16 in. dia, Serial Range: 1962-1963

1шт.

7

478720R92

BLADE W/HUBS, plain, 17 in. dia, 1964 & up

1шт.

7

PO14912

BLADE

W/HUBS, plain, 18 in. dia, Serial Range: 1959-1961

1шт.

7

468725R11

COULTER

BLADE W/HUBS, plain, 18 in. dia, 1962 & up

1шт.

7

469191R21

BLADE W/HUBS, rippled edge, 17 in. dia, 1962 & up

1шт.
