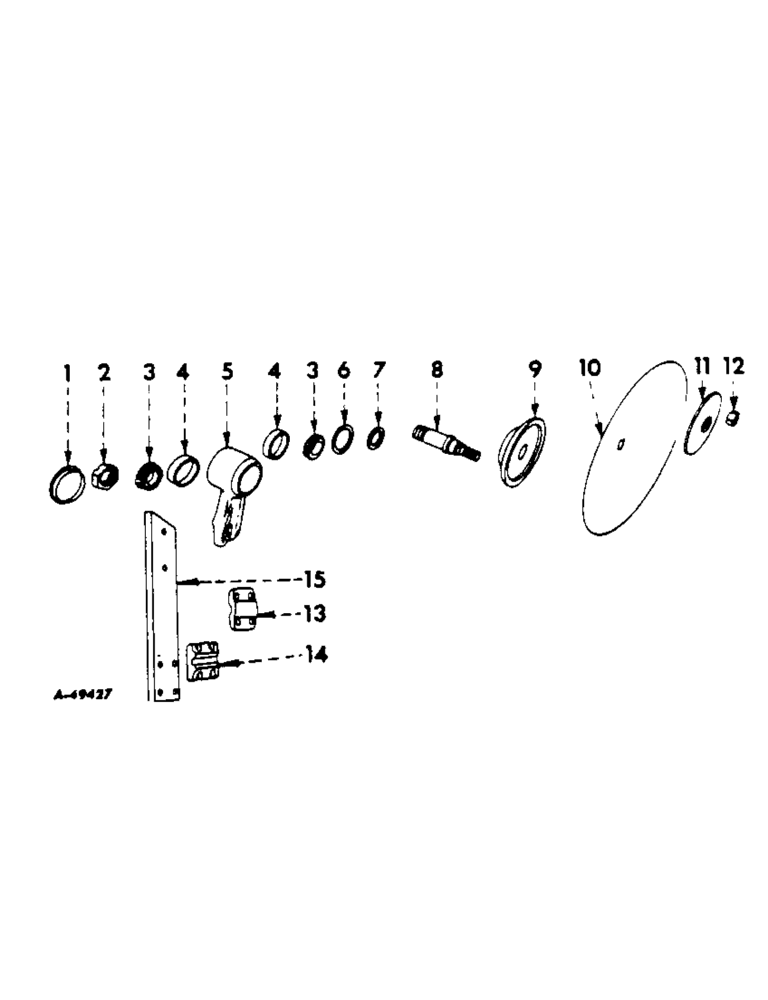

Запчасти Case IH 309A (M-10) - DISK COLTERS JOINTERS, ONE PER FURROW

1

518842R1

CAP

bearing housing

1шт.

2

519250R1

SLOTTED NUT

1-1/4 hex, slt

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, cone

2шт.

4

651817R1

BEARING CUP

BEARING, cup

2шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

5

521779R1

HOUSING, bearing

1шт.

6

518820R91

OIL SEAL

bearing oil

1шт.

7

518654R1

SPACER

oil seal

1шт.

8

521780R1

SPINDLE

1шт.

.

1/8 X 1-3/4 COT PIN

2шт.

9

519084R1

HUB

BEARING, spindle

1шт.

10

519093R1

DISC

DISK, 16 in.

1шт.

11

519086R2

SUPPORT

disk

1шт.

12

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 hex, slt

1шт.

13

519087R1

CAP, colter arm clamp

1шт.

14

519088R1

CLAMP, colter arm

1шт.

15

521781R2

ARM, colter

1шт.

.

1/2 x 2 MACH BOLT

2шт.

.

1/2 NUT

6шт.

.

1/2 x 3-1/2 CAP SCREW

4шт.

.

1/2 LOCK WASHER

6шт.
