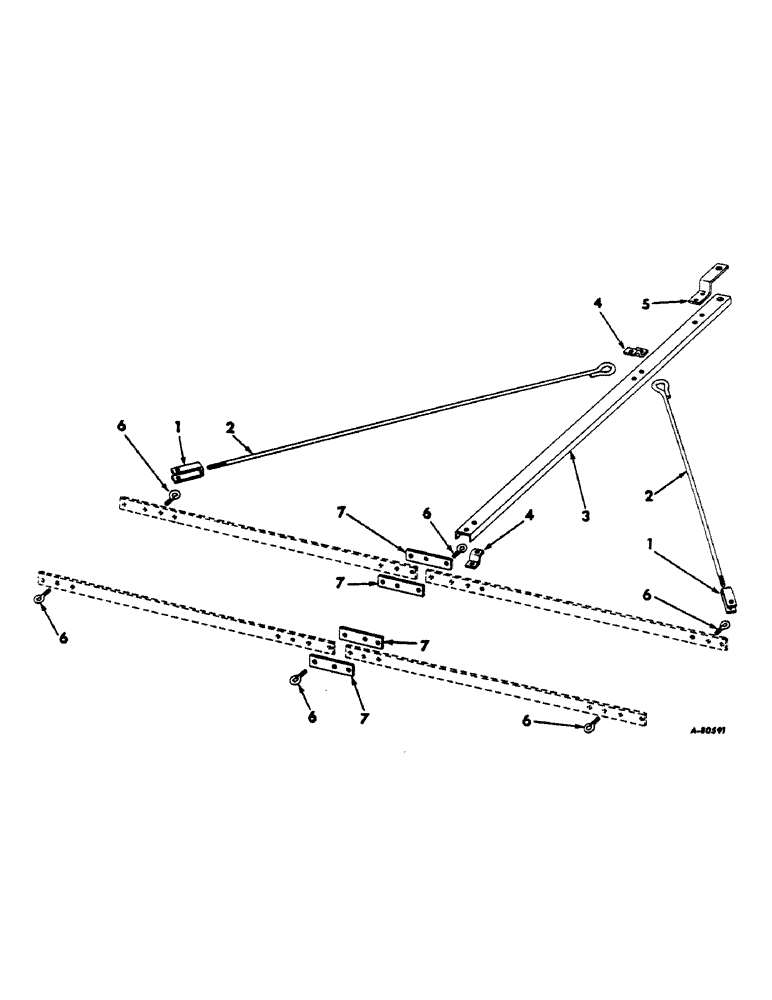

Запчасти Case IH 3 (A-06) - DRAWBARS, TWO 42 INCH SECTIONS

1

472842R1

CLEVIS, bail adjusting

2шт.

455388R1

NUT

1/2-13 MF hex. lock

2шт.

618020R1

PIN, 7/16 x 2-1/8 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Self-opening 3/16" x 1"

1шт.

2

472841R1

LINK, bail

2шт.

3

472830R1

CHANNEL, center

1шт.

4

472840R1

STRAP, hammer

2шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

618020R1

PIN, 7/16 x 2-1/8 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Self-opening 3/16" x 1"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

472835R1

STRAP, hitch

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 x 1-1/2 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

472813R1

BOLT

EYEBOLT

6шт.

16038R1

WASHER

17/32 x 1 x 11 ga

12шт.

7

472848R1

BAR, hinge

4шт.
