(A-04) - 18 INCH WHEELS, SHAFT AND BEARINGS, 3 ROTARY HOE

Запчасти Case IH 3 (A-04) - 18 INCH WHEELS, SHAFT AND BEARINGS, 3 ROTARY HOE

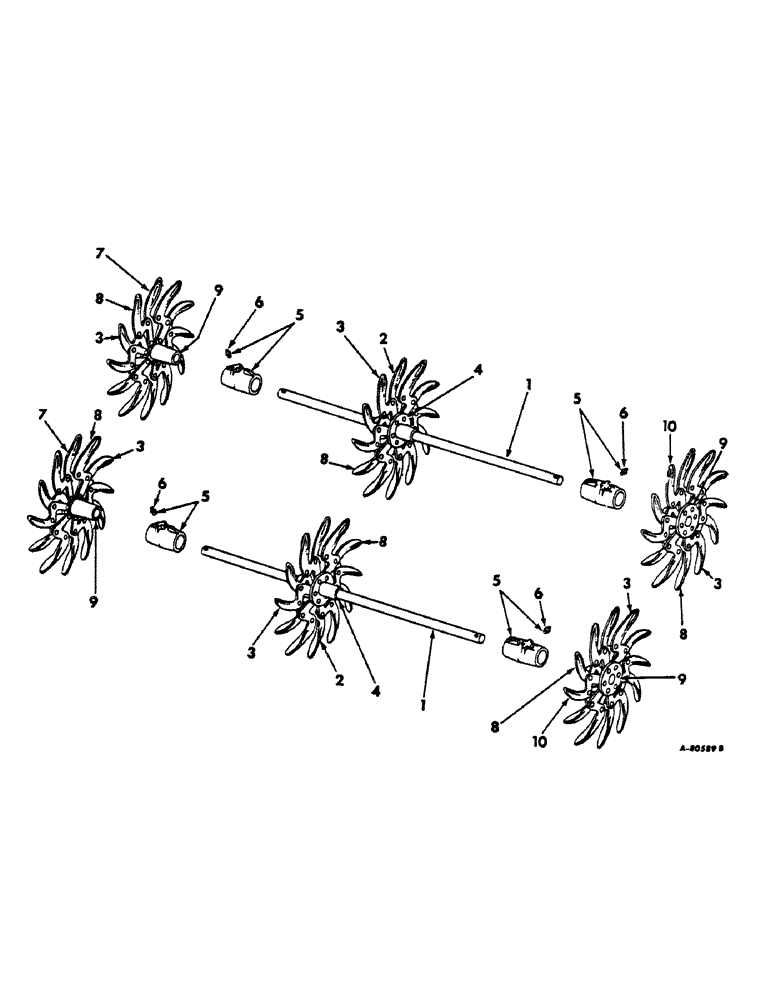

Схема запчастей Case IH 3 - (A-04) - 18 INCH WHEELS, SHAFT AND BEARINGS, 3 ROTARY HOE
5
6
3
4
6
2
9
8
9
2
3
10
9
10
8
9
5
8
4
7
3
3
7
5
3
5
8
8
1
6
6
8
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

472814R1

SHAFT, wheel, for 3 rotary hoe w/42 inch section

2шт.

13122R1

PIN, 5/16 x 1-1/2 self-opening cot

4шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .134

4шт.

1

487283R1

SHAFT, wheel, for 3 rotary hoe w/48 inch section

2шт.

13122R1

PIN, 5/16 x 1-1/2 self-opening cot.

4шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .134

4шт.

2

472821R91

WHEEL

ASSEMBLY, 18 in. center, 42 inch section 10 used, 48 inch section 12 used

1шт.

3

472819R1

TOOTH, 18 in. wheel inner 6 per wheel

1шт.

104099

RIVET,But Hd, 5/16" x 1"

5/16 x 1 small b-hd, 2 per tooth

1шт.

104102

RIVET, 5/16 x 1-3/8 small b-hd, 6 per wheel

1шт.

4

472822R1

HUB, 18 in. wheel center, 42 inch section 10 used, 48 inch section 12 used

1шт.

104102

RIVET, 5/16 x 1-3/8 small b-hd, 6 per wheel

1шт.

5

472815R21

TURNBUCKLE

BEARING, w/lub fitting, wheel hub

4шт.

6

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type str lub, wheel hub bearing

4шт.

7

472816R92

WHEEL

ASSEMBLY, 18 in outer LH, for 3 rotary hoe w/42 and 48 inch section

1шт.

8

472820R1

TOOTH, 18 in. wheel outer, 6 per wheel

1шт.

104102

RIVET, 5/16 x 1-3/8 small b-hd, 6 per wheel

1шт.

104099

RIVET,But Hd, 5/16" x 1"

5/16 x 1 small b-hd, 2 per tooth

1шт.

9

472818R2

HUB

18 in. wheel outer, for 3 rotary hoe w/42 and 48 inch section, 6 per wheel

1шт.

10

472817R92

WHEEL ASSEMBLY, 18 in. outer RH, for 3 rotary hoe w/42 and 48 inch section

1шт.
