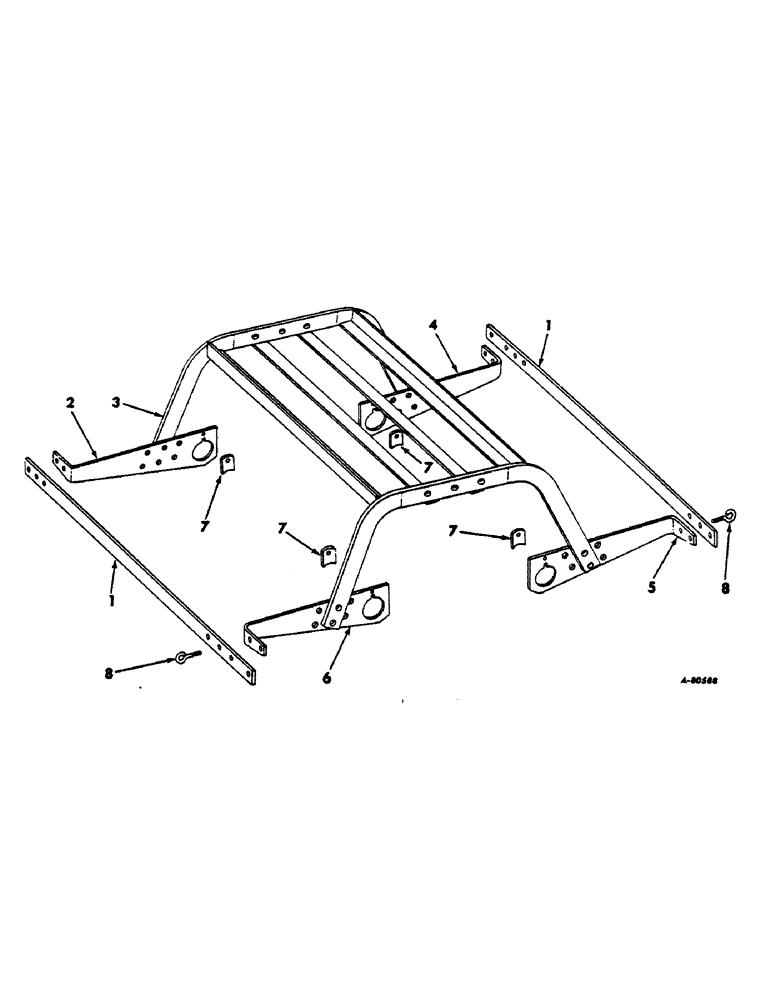

Запчасти Case IH 3 (A-02) - FRAME, BAR AND BEARING SUPPORTS

1

472812R1

BAR, frame, for 3 and 4 rotary hoe w/42 inch sections

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

3шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach

3шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 C-Z hex. lock

6шт.

1

487284R1

BAR, frame, for 3 and 4 rotary hoe w/48 inch sections

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/8 x 1-1/2 C-Z hex-hd mach

3шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

3шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 C-Z hex. lock

7шт.

2

472805R1

SUPPORT, rear bearing LH, 3 rotary hoe

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

472809R1

SUPPORT, rear bearing LH, 4 rotary hoe

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

472799R91

FRAME ASSY, 18 in. wheel hoe, 3 rotary hoe w/42 or 48 inch section

1шт.

3

472803R91

FRAME ASSY, 21 in. wheel hoe, 4 rotary hoe w/42 or 48 inch section

1шт.

4

472807R1

SUPPORT, front bearing LH, 3 rotary hoe

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

472805R1

SUPPORT, front bearing LH, 4 rotary hoe

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

472808R1

SUPPORT, front bearing RH, 3 rotary hoe

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 CD or zn-pltd hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

472806R1

SUPPORT, front bearing RH, 4 rotary hoe

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

472806R1

SUPPORT, rear bearing RH, 3 rotary hoe

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

472810R1

SUPPORT, rear bearing RH, 4 rotary hoe

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

472811R1

LOCK, bearing

4шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

472813R1

BOLT

EYEBOLT

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 C-Z hex. lock

2шт.

477299R1

PIN, 7/16 x 2-1/8 C-Z std-hd

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.
