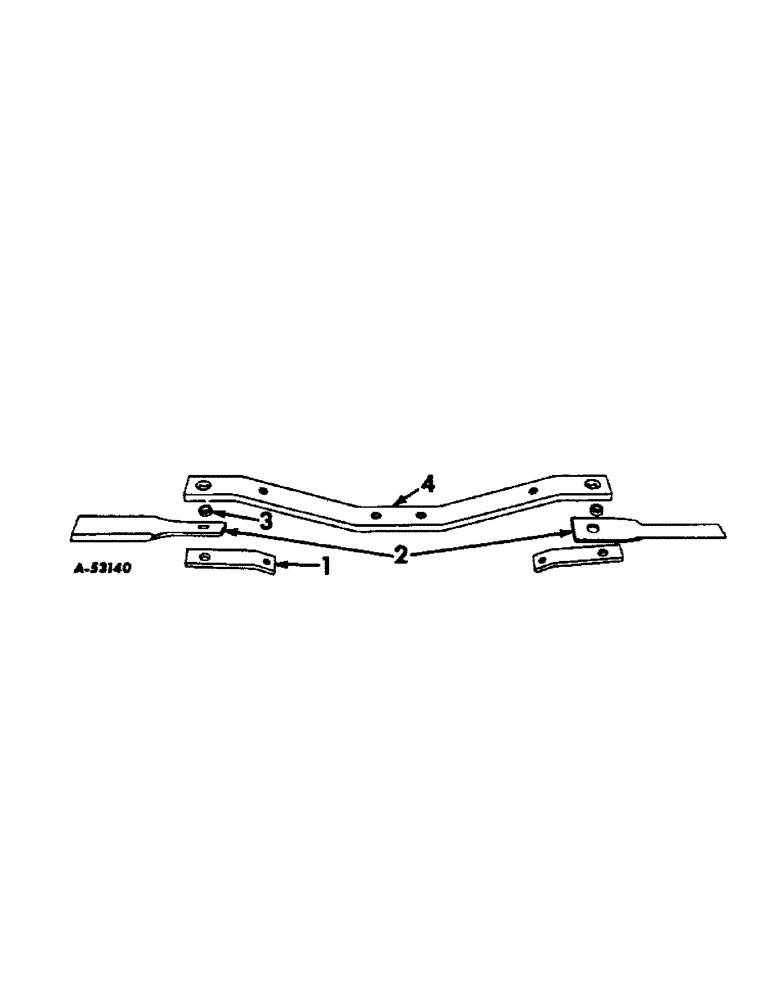

Запчасти Case IH 210 (D-04) - ROTOR BAR AND BLADES

1

664017R1

STRAP

HAMMERSTRAP, rotor

2шт.

BOLT, 1/2 x 1-3/4" hex-hd. mach.

1шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2" ESNA stop nut

2шт.

WASHER, 1/2" lock

2шт.

2

663999R11

HALF BLADE

BLADE, twisted swinging (pair)

1шт.

BOLT, 3/4 x 2-1/2" no. 3 plow

2шт.

18444R1

NUT,3/4"-10, GB

3/4" ESNA stop

2шт.

3

664023R1

BUSHING

swinging blade

2шт.

4

664019R2

BAR, rotor

1шт.

19647R1

LOCK NUT,5/8"-11, GC

NUT, 5/8" ESNA stop nut

2шт.

SCREW, 5/8 x 2" hex-hd. cap

2шт.

COUPLING BEAM PACKAGE 664024R91 (for 2-1/2" beam)

1шт.

COUPLING BEAM PACKAGE 664066R91 (for 3" beam)

1шт.
