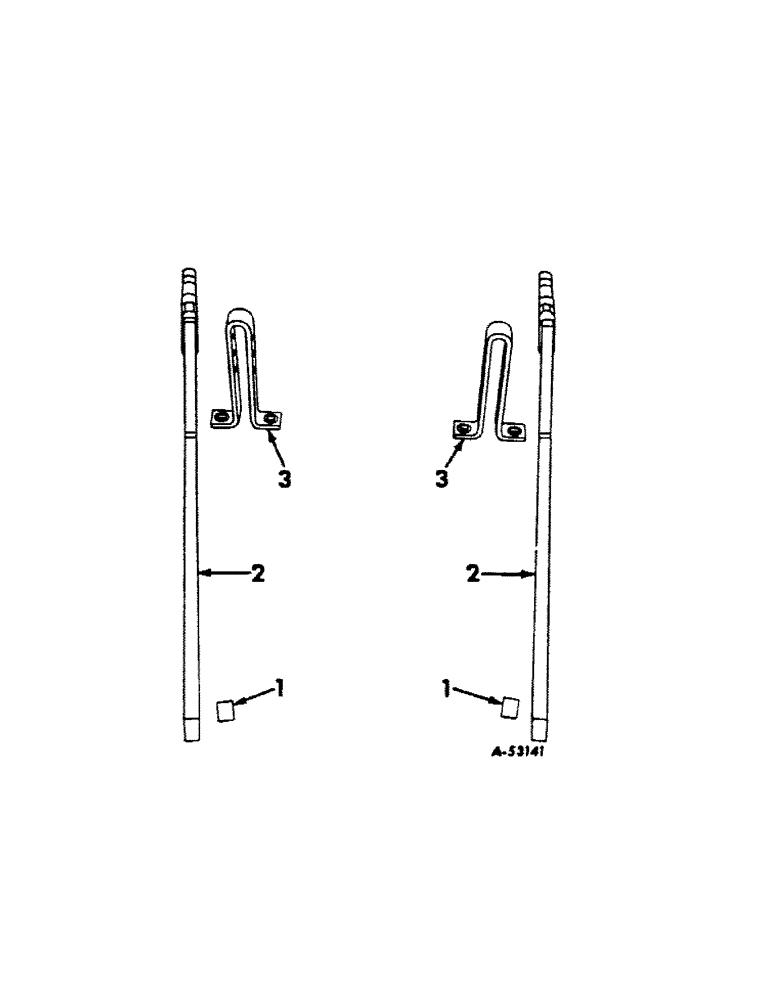

Запчасти Case IH 210 (D-04[A]) - COUPLING BEAMS

1

664034R1

SPACER, coupling beam

2шт.

BOLT, 3/4 x 2-1/4" hex-hd. mach.

2шт.

NUT, 3/4"

2шт.

WASHER, 3/4" lock

2шт.

575814R1

WASHER

25/32 x 2" x 11 ga.

2шт.

2

664025R91

BEAM, coupling (for 2-1/2" beam)

2шт.

2

664035R91

BEAM, coupling (for 3" beam)

2шт.

3

664028R1

BRACKET, coupling beam attaching

2шт.

BOLT, 1/2 x 1-1/2 crg

4шт.

PIN, 3/16" quick-attachable cotter

1шт.

NUT, 1/2"

4шт.

PG141

PIN

1/2 x 2" dld-std-hd.

2шт.

WASHER, 1/2" lock

1шт.
