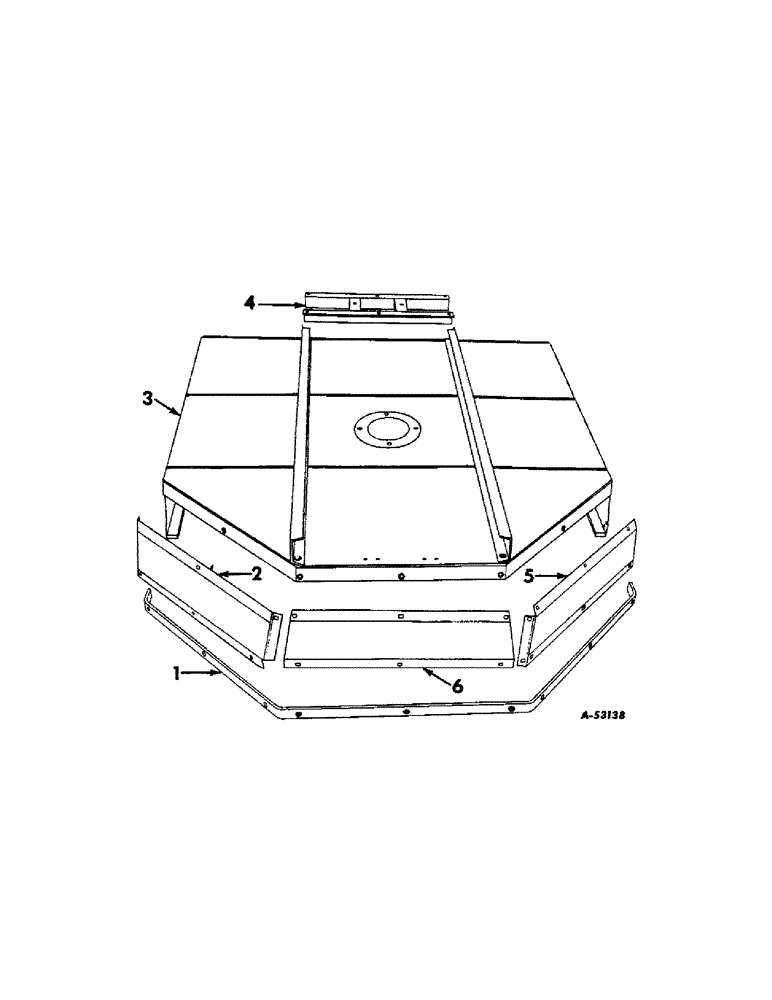

Запчасти Case IH 210 (D-02) - MAIN FRAME

1

664018R1

RAIL, lower rear

1шт.

BOLT, 3/8 x 1" crg

7шт.

NUT, 3/8"

7шт.

WASHER 3/8" lock

7шт.

2

463928R2

SHEET, left rear side (61- )

1шт.

2

664020R1

SHEET, left rear side (58-61)

1шт.

BOLT, 3/8 x 3/4" crg.

4шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

3

463915R93

FRAME, main (61- )

1шт.

3

664000R91

FRAME, main (58-61)

1шт.

4

663992R91

SUPPORT, gear case

1шт.

BOLT, 1/2 x 1-1/4" hex-hd. mach.

4шт.

NUT, 1/2"

4шт.

WASHER, 1/2" lock

4шт.

5

463929R2

SHEET, right rear side (61- )

1шт.

5

664021R1

SHEET, right rear side (58-61)

1шт.

BOLT, 3/8 x 3/4" crg.

4шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

6

463926R2

SHEET, rear center (61- )

1шт.

6

664022R1

SHEET, rear center (58-61)

1шт.

BOLT, 3/8 x 3/4" crg.

1шт.

NUT, 3/8"

1шт.

WASHER, lock

1шт.
