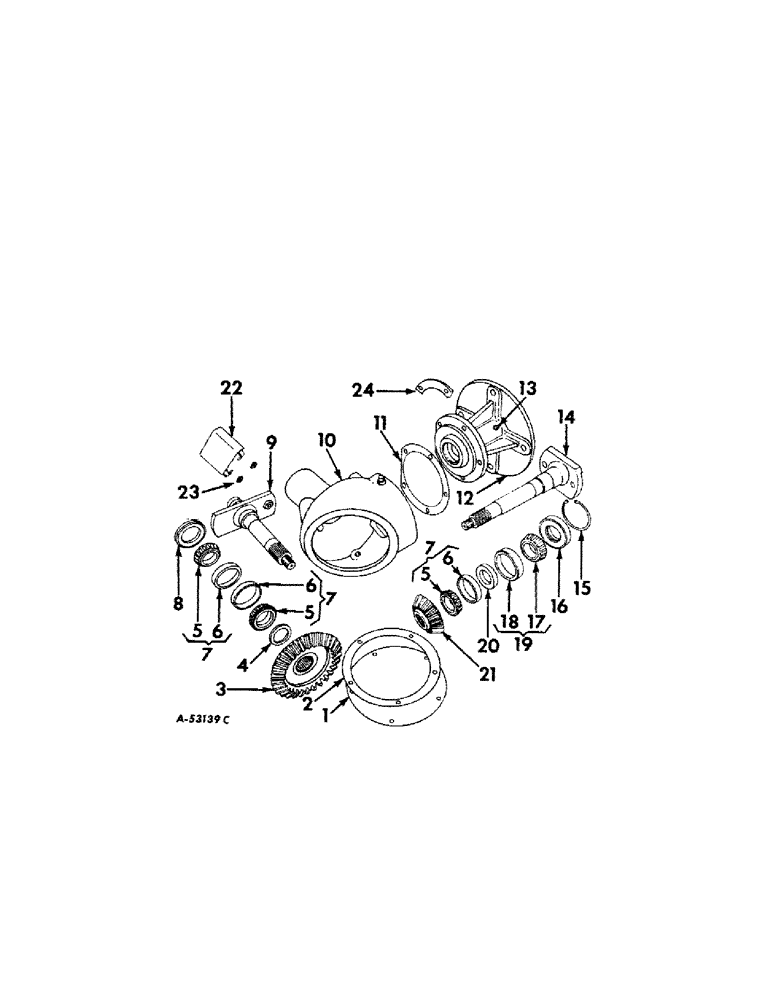

Запчасти Case IH 210 (D-02[A]) - MAIN DRIVE

1

663596R1

COVER, main drive housing

1шт.

SCREW, 5/16 x 3/4" cap

6шт.

WASHER, 5/16" lock

6шт.

2

663607R1

GASKET

main drive housing cover

1шт.

3

663588R1

GEAR, bevel drive (30-T) (for 540 RPM-PTO)

1шт.

3

470015R1

GEAR, bevel drive (20-T) (for 1000 RPM-PTO)

1шт.

4

663604R1

SHIM

.020" gear case

2шт.

4

663605R1

SHIM

.007" gear case

2шт.

4

663606R1

SHIM

.005" gear case

2шт.

5

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, roller bearing

3шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner roller

3шт.

7

NOT SERVICED AS ASSEMBLY

1шт.

8

75260H

SEAL ASSY.

OIL SEAL, horizontal shaft

1шт.

9

663995R92

SHAFT, horizontal

1шт.

BOLT, 5/16 x 2" hex-hd. mach. (shear bolt)

1шт.

NUT, 5/16"

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 NF slotted

1шт.

PIN, 1/8 x 1-1/2" cotter

1шт.

SCREW, 5/16 NF x 3/4" hex-hd. cap

2шт.

WASHER, 5/16" lock

3шт.

453599R1

WASHER

29/32 x 2 x 1/4"

1шт.

659623R1

WASHER, drive shaft

1шт.

659625R1

WASHER

WEAR WASHER (brass)

1шт.

10

663586R3

HOUSING

main drive (order housing, 478800R1)

1шт.

615537R1

BOLT, 7/16 x 1-1/2" sq-hd mach

5шт.

103867

PLUG

3/8" sq-hd pipe

2шт.

495538R1

PLUG, 3/8" recessed pipe

1шт.

PIN, 1/8 x 1-1/4 " cotter

1шт.

11

663601R1

SHIM

.020" housing

2шт.

11

663602R1

SHIM

.007" housing

2шт.

11

663603R1

SHIM

.005" housing

2шт.

12

664014R3

HOUSING, lower

1шт.

SCREW, 5/8 x 2" cap

2шт.

SCREW, 5/8 x 2-1/4" cap

2шт.

NUT, 5/8"

4шт.

WASHER, 5/8" lock

4шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

14

664016R1

SHAFT, vertical

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 NF slotted

1шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

WASHER, 29/32 x 2 x 1/4"

1шт.

15

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , vertical drive shaft (1961-1964) 3.156", Int, #315

1шт.

16

664068R91

SEAL

OIL SEAL, vertical drive shaft lower

1шт.

17

459454R91

ROLLER BEARING,1.563" ID x 1.01"

CONE, vertical drive shaft lower roller bearing

1шт.

18

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP, vertical drive shaft lower roller bearing

1шт.

19

NOT SERVICED AS ASSEMBLY

1шт.

20

20108D

SEAL

OIL SEAL, vertical drive shaft upper

1шт.

21

663589R1

GEAR, bevel driven (17-T) (for 540 RPM-PTO)

1шт.

21

470015R1

GEAR, bevel driven (20-T) (for 1000 RPM-PTO)

1шт.

22

661886R91

SHIELD, shear bolt (order 469400R91 and 471111R1)

1шт.

SCREW, 1/2 x 3/4" cap

2шт.

WASHER, 1/2" lock

2шт.

WASHER, 17/32 x 1-1/16 x .095" washer

2шт.

22

469400R91

SHIELD ASSY, shear bolt

1шт.

BOLT, 1/2 x 1" sq-hd mach

2шт.

478359R1

BOLT RETAINER

2шт.

23

471111R1

PAD

SPACER, rubber

2шт.

24

470016R1

LOCK, lower housing bolt

3шт.
