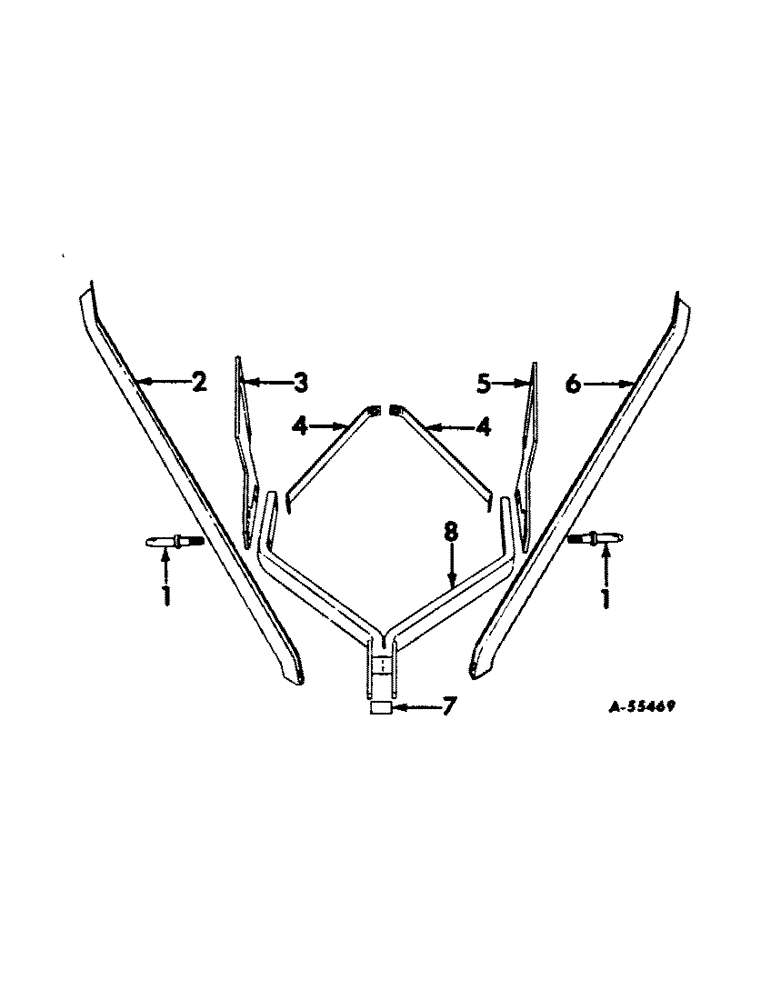

Запчасти Case IH 210 (D-08[A]) - THREE-POINT HITCH (COMPLETING PACKAGE)

1

525921R1

STUD

PIN, hitch 7/8

2шт.

NUT, 7/8 NF

2шт.

2

664272R1

BRACE, right upper link

1шт.

BOLT, 5/8 x 1-1/4" hex-hd. mach.

1шт.

BOLT, 5/8 x 3-3/4" hex-hd. mach.

1шт.

NUT, 5/8"

2шт.

WASHER 5/8" lock

2шт.

3

664269R1

PLATE, lower right attaching

1шт.

BOLT, 5/8 x 1-1/2" crg

2шт.

BOLT, 7/8 x 2-1/4" hex-hd. mach.

1шт.

NUT, 5/8"

2шт.

NUT, 7/8"

1шт.

WASHER 5/8" lock

2шт.

WASHER 7/8" lock

1шт.

4

664270R1

BRACE, lower

2шт.

BOLT, 1/2 x 1-1/4" crg.

4шт.

NUT, 1/2"

4шт.

WASHER, 1/2" lock

4шт.

5

664268R1

PLATE, lower left attaching

1шт.

BOLT, 5/8 x 1-1/2" crg.

2шт.

BOLT, 7/8 x 2-1/4" hex-hd. mach.

1шт.

NUT, 5/8"

2шт.

NUT, 7/8"

1шт.

WASHER, 5/8" lock

2шт.

WASHER, 7/8" lock

1шт.

6

664271R1

BRACE, left upper link

1шт.

BOLT, 5/8 x 1-1/4" hex-hd. mach.

1шт.

NUT, 5/8"

1шт.

WASHER, 5/8" lock

1шт.

7

PO14686

SPACER, upper link (58-61)

1шт.

7

466606R1

SPACER, upper link (61- )

1шт.

8

664251R91

SUPPORT, upper link (58-61)

1шт.

8

466603R91

SUPPORT, upper link (61- )

1шт.
