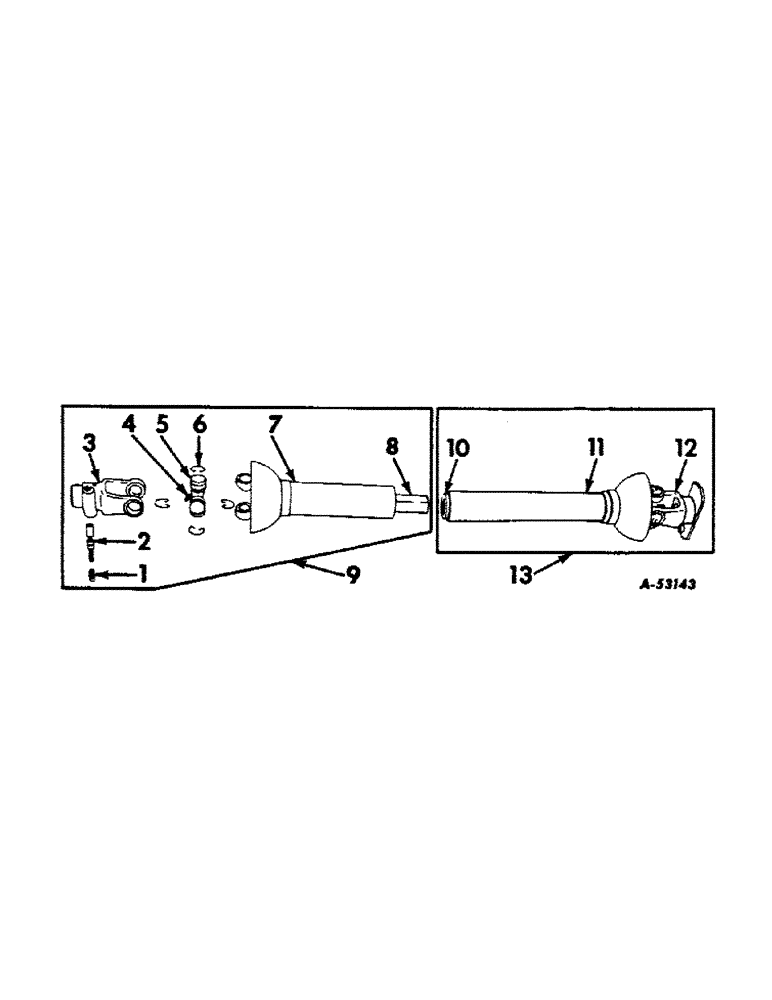

Запчасти Case IH 210 (D-07) - DRIVE SHAFT

1

587479R1

SPRING

locking pin (unit E)

1шт.

1

455347R1

VALVE SPRING

SPRING, locking pin (unit A, B, C and D)

1шт.

2

455346R21

PIN

W/SPRING AND X-WASHER, locking (unit A, B, C and D)

1шт.

2

631976R91

PIN

W/SPRING AND X-WASHER, locking (unit E)

1шт.

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

LOCKING PIN X-WASHER

1шт.

3

568100R92

YOKE

W/LOCKING PIN ASSEMLBY, spline (unit A, B, C and D)

1шт.

3

472857R91

YOKE

W/LOCKING PIN ASSY, splined (unit E)

1шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" 65 degree elbow lubrication

4шт.

5

569044R91

BEARING ASSY

CUP ASSEMBLY, needle

8шт.

5

569047R91

REPAIR KIT

CROSS W/SNAP RINGS, center cross and needle cup assembly (repair kit)

2шт.

6

576420R1

RING

SNAP RING

8шт.

7

467327R1

SHIELD, outer (unit C, D and D) (61- )

1шт.

7

465172R91

SHIELD, outer (61- )

1шт.

7

664323R91

SHIELD, outer (58-61)

1шт.

8

467326R1

YOKE

AND SHAFT (unit C, D and E)

1шт.

8

465171R91

YOKE AND SHAFT (61- )

1шт.

8

664322R91

YOKE AND SHAFT (58-61)

1шт.

9

473179R91

SHAFT ASSY, front drive (unit E)

1шт.

9

467325R91

SHAFT ASSEMBLY, front drive (unit C and D) (61- )

1шт.

9

465186R91

SHAFT ASSEMBLY, front drive (Unit A and B) (61- )

1шт.

9

662467R91

SHAFT ASSEMBLY, front drive (58-61)

1шт.

10

465167R91

YOKE, tube and sleeve assembly (unit A and B) (61- )

1шт.

10

465168R91

YOKE, tube and sleeve assembly (unit C, D and E) (61- )

1шт.

10

664314R91

YOKE, tube and sleeve assembly (unit A and B) (58-61)

1шт.

10

664316R91

YOKE, tube and sleeve assembly (unit C and D) (58-61)

1шт.

11

465169R91

SHIELD, inner (unit A and B) (61- )

1шт.

11

465170R91

SHIELD, inner (unit C, D and E) (61- )

1шт.

11

664319R91

SHIELD, inner (unit A and B) (58-61)

1шт.

11

664321R91

SHIELD, inner (unit C and D) (58-61)

1шт.

12

664030R91

YOKE

W/PLATE ASSEMBLY, flange (unit A and C)

1шт.

12

460614R21

YOKE

W/PLATE ASSEMBLY, flange (unit B and D) (refers to slip clutch for illustration)

1шт.

13

664031R91

SHAFT ASSEMBLY, rear drive (unit A) (58-61)

1шт.

13

665077R91

SHAFT ASSEMBLY, rear drive (unit B) (58-61)

1шт.

13

664033R91

ROLLER

SHAFT ASSEMBLY, rear drive (unit C) (58-61)

1шт.

13

461882R91

SHAFT ASSEMBLY, rear drive (unit D) (58-61)

1шт.

13

465941R91

SHAFT ASSEMBLY, rear drive (unit A) (61- )

1шт.

13

465944R91

SHAFT ASSEMBLY, rear drive (unit B) (61- )

1шт.

13

465942R91

SHAFT ASSEMBLY, rear drive (unit C and E) (61- )

1шт.

13

465943R91

SHAFT ASSEMBLY, rear drive (unit D and E) (61- )

1шт.

662598R91

BEARING

ASSEMBLY, ball (58-59)

2шт.

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon (61- )

2шт.

461346R1

BEARING

nylon (59-61)

2шт.

613439R1

BRACKET

BEARING, nylon support (61- )

2шт.

613436R1

CLAMP

SNAP RING (61- )

2шт.

662589R1

THRUST WASHER

thrust (59-61)

2шт.

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust (61- )

2шт.
