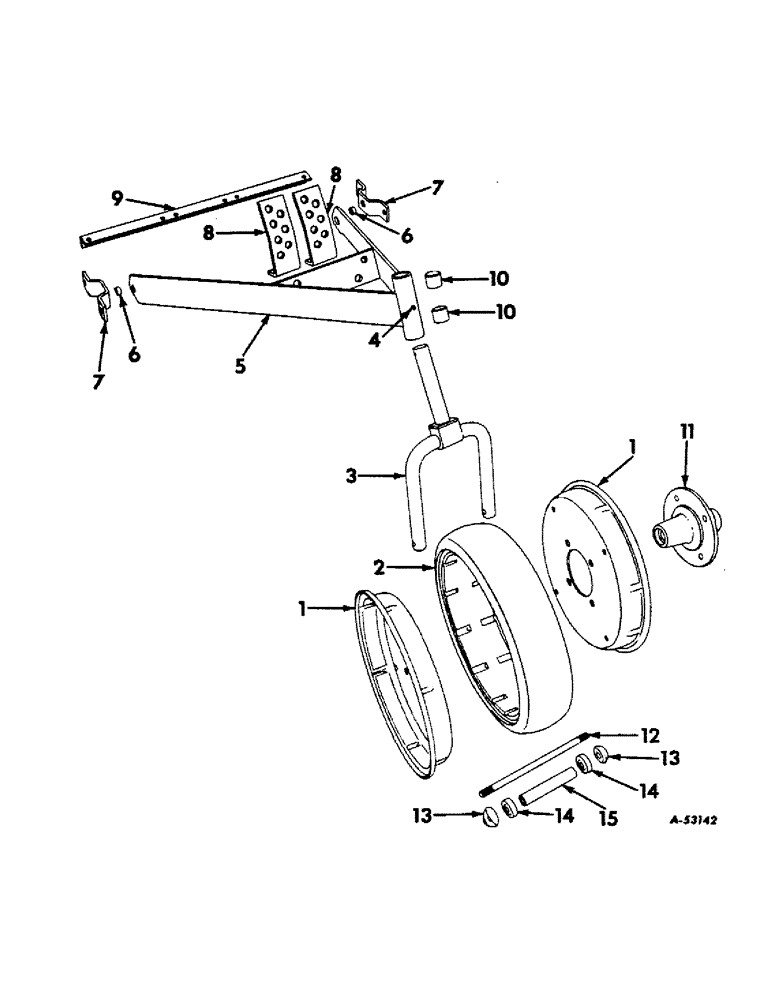

Запчасти Case IH 210 (D-05) - GAUGE WHEEL ATTACHMENT (58-62)

1

664071R1

HALVES, wheel (58-60)

2шт.

1

463442R1

HALVES, wheel (60- )

1шт.

BOLT, 3/8 x 3/4" cd-pltd. hex-hd. mach.

4шт.

NUT, 3/8"

1шт.

LOCK WASHER, 3/8"

4шт.

2

664072R1

TIRE, gauge wheel (58-60)

1шт.

2

463441R1

TIRE, gauge wheel (60- )

1шт.

3

664055R91

YOKE, gauge wheel

1шт.

COTTER PIN, 1/4 x 2"

1шт.

WASHER, 1-9/32 x 2" x 11 ga.

3шт.

4

102467

LUBE NIPPLE

FITTING, 1/4" straight lubrication

1шт.

5

664051R91

FRAME, gauge wheel

1шт.

6

PO10806

SPACER, gauge wheel frame

2шт.

7

664062R1

PIVOT, gauge wheel

2шт.

BOLT, 3/8 x 1" crg.

4шт.

BOLT, 1/2 x 1-1/2 crg. bolt

2шт.

LOCK WASHER, 3/8"

4шт.

LOCK WASHER, 1/2"

2шт.

WASHER, 17/32 x 1-1/4" x 16 ga.

2шт.

8

664063R1

STRAP, gauge wheel adjusting

1шт.

BOLT 7/16 x 1-1/2 hex-hd mach.

4шт.

NUT 7/16"

4шт.

659472R1

AXLE PIN

PIN, 5/8 x 1-5/16" dld-std-hd

2шт.

PIN, 1/4 x 2" cotter

2шт.

WASHER, 7/16" lock

4шт.

9

664064R2

BRACE, rear main frame

1шт.

BOLT, 1/2 x 1-1/4" hex-hd. mach.

2шт.

NUT, 1/2"

2шт.

WASHER, 1/2" lock

2шт.

10

664070R1

BUSHING, pivot sleeve

2шт.

11

664060R2

HUB, gauge wheel

1шт.

SCREW, 1/2 NF x 1" hex-hd cap screw

4шт.

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4" 45 degree self tapping lubrication

1шт.

WASHER, 1/2" lock

4шт.

12

664061R1

SPINDLE, gauge wheel

1шт.

NUT, 1/2"

2шт.

WASHER, 1/2" lock

2шт.

11002VA

WASHER

17/32 x 7/8" x 16 ga.

2шт.

13

664065R1

SPACER

gauge wheel

2шт.

14

664067R91

BEARING

gauge wheel (58-60)

2шт.

14

463000R91

BEARING

gauge wheel (60- )

2шт.

15

664177R1

SPACER, gauge wheel standard

1шт.
