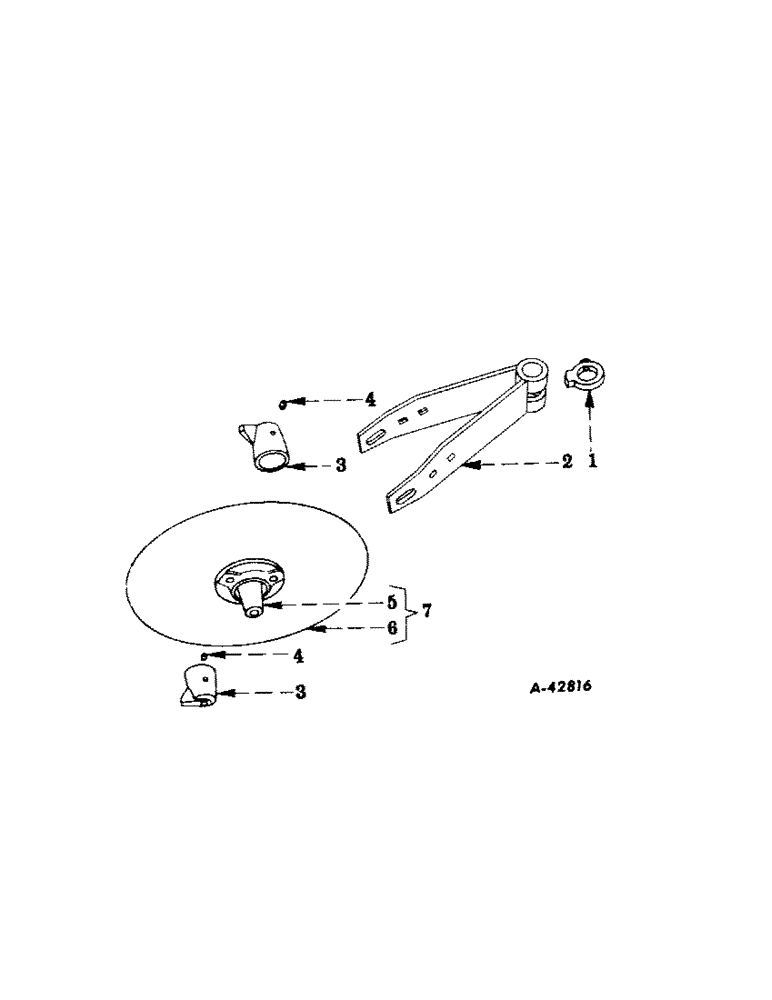

Запчасти Case IH 21 (A-11[A]) - ROLLING COLTER, BUILT 1962 AND SINCE

1

519345R31

COLLAR

W/SET SCREW, stop

1шт.

20900R1

SET SCREW

1/2 x 1 znp sq/hd c/pt set

1шт.

2

522252R93

YOKE

colter

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

21469R1

BOLT,Hex, 1/2" - 13 x 7 3/4", Gr 5

1/2 x 7-3/4 type 5

1шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

3

521157R11

BUSHING

ASSY, left, Includes fitting, 443566

1шт.

3

521158R11

BUSHING

ASSY, right, Includes fitting, 443566

1шт.

4

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole lub

1шт.

5

468727R1

HUB

Replaces SA1346

2шт.

45-528

RIVET,But Hd, 5/16" x 1 3/4"

5/16 x 1-3/4 pln but/hd sol

6шт.

6

468725R1

COULTER

BLADE, plain, 18 in. dia., Order blade, 523025R2

1шт.

6

468726R1

COULTER

BLADE, notched, 18 in. dia., Order blade, 523026R2

1шт.

6

523025R2

HALF BLADE

BLADE, plain, 17 in. diameter, Replaces 468725R1

1шт.

6

523026R2

DISC

BLADE, notched, 17 in. diameter, Replaces PO15788 & 468725R1

1шт.

7

468725R11

COULTER

BLADE W/HUBS, plain, 18 in. dia., Order blade w/hubs, 478720R91

1шт.

7

468726R1

COULTER

BLADE W/HUBS, notched, 18 in. dia., Order blade w/hubs, 478721R91

1шт.

7

478720R91

BLADE

W/HUBS, plain, 17 in. diameter

1шт.

7

478721R91

BLADE

W/HUBS, notched, 17 in. diamter

1шт.
