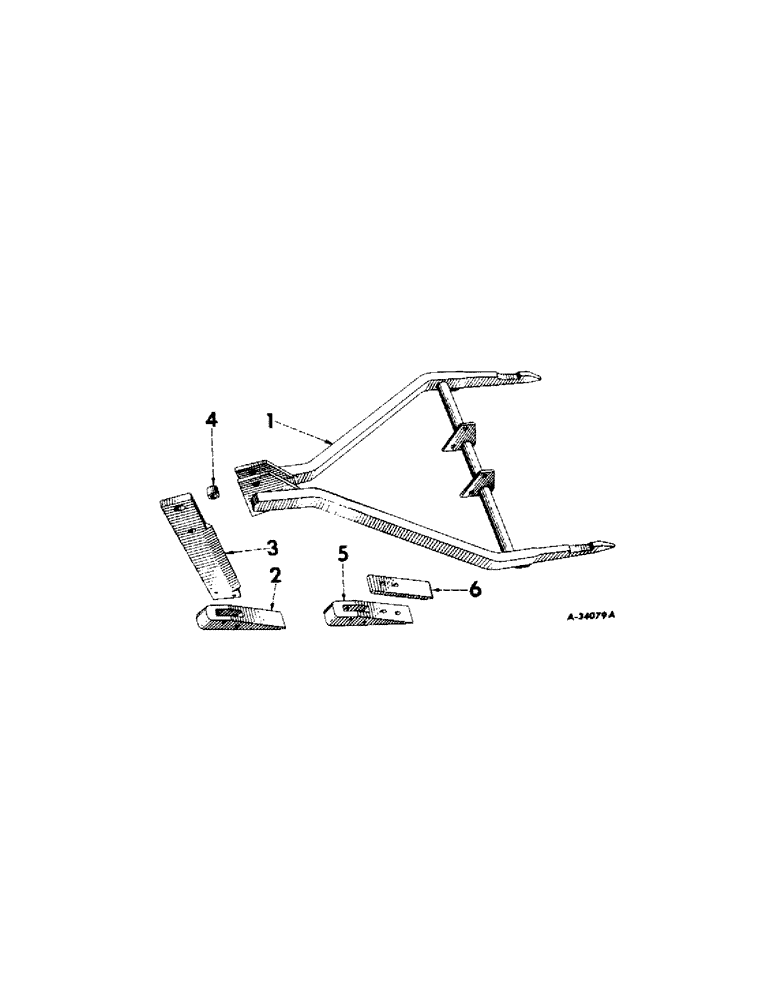

Запчасти Case IH 21 (A-10) - MAIN FRAME, SUBSOIL POINT AND STANDARD, FOR 34-F1 SUBSOILER

1

520290R91

FRAME, main

1шт.

SCREW, 7/8 x 3 hex-hd cap

1шт.

NUT, 7/8

1шт.

WASHER, 7/8 lock

1шт.

2

518590R1

POINT, subsoil, Serial Range: 1955-1960

1шт.

455238R1

LOCK PIN,1/2" x 2 1/2", Slotted

Pin, , locating 1/2" x 2 1/2", Slotted

2шт.

3

520291R1

STANDARD, See note

1шт.

PIN, 1/4 x 1-3/4 self-opening cotter

2шт.

520286R1

PIN

shear

1шт.

4

520285R1

BUSHING, standard

1шт.

5

463950R1

SUPPORT, subsoil point, 1960 and since

1шт.

455238R1

LOCK PIN,1/2" x 2 1/2", Slotted

Pin, 1/2" x 2 1/2", Slotted

2шт.

6

463949R1

TOOTH

POINT, replaceable subsoil, 1960 and since

1шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8 x 2 plow type 1

1шт.

19083R1

PLOW BOLT,#3, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 plow type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
