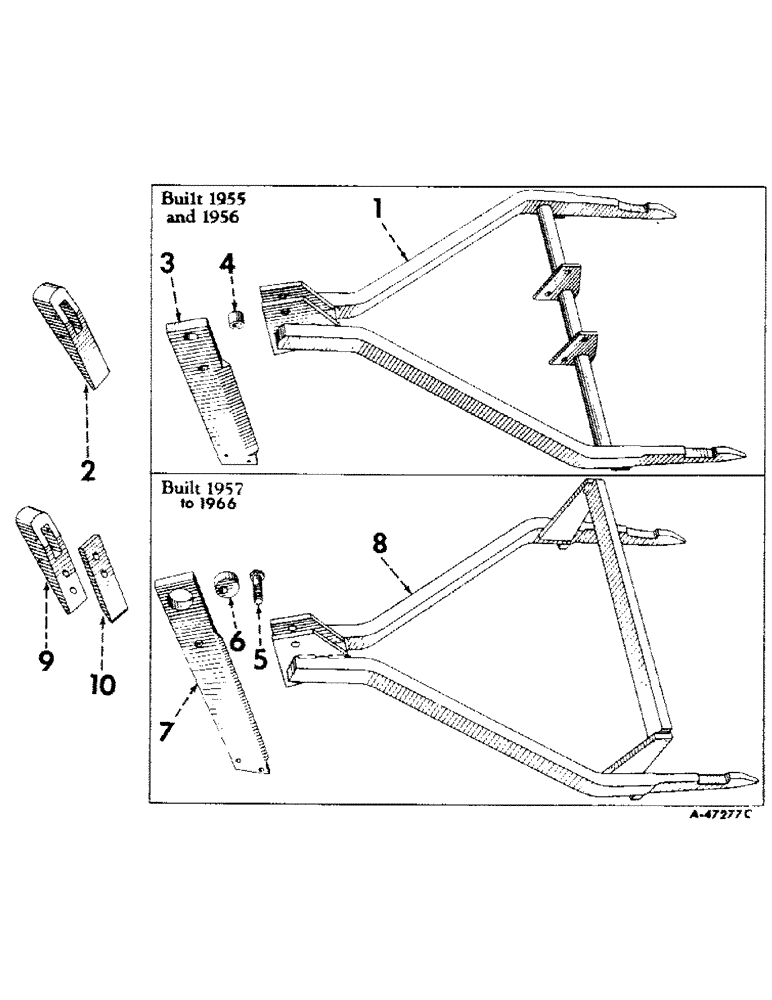

Запчасти Case IH 21 (A-09) - MAIN FRAME, SUBSOIL POINT AND STANDARD, FOR 2CK-FTC1, 2C-F1 AND NUMBER ONE SUBSOILERS

1

518597R91

FRAME, main, for 2-1/2 in. fast-hitch socket, Serial Range: 1955-1957

1шт.

BOLT, 3/4 x 3 hex-hd mach, 1955, Serial Range: -1956

1шт.

WASHER, 3/4 lock

1шт.

2

518590R1

POINT, subsoil, Serial Range: 1955-1960

1шт.

455238R1

LOCK PIN,1/2" x 2 1/2", Slotted

Pin, , point locating 1/2" x 2 1/2", Slotted

2шт.

3

518599R1

STANDARD, 1955 and 1956, See note

1шт.

PIN, 1/4 x 1-3/4 self-opening cotter

1шт.

519365R1

PIN, 3/4 x 2-3/8 hdls shear

3шт.

4

518598R1

SPACER

BUSHING, standard, 1955 and 1956

1шт.

5

523573R11

BOLT W/NUT, eccentric, 3/4 x 3 in. w/keyway, 1957 and since

1шт.

WASHER, 3/4 lock

1шт.

6

523562R1

ECCENTRIC, standard, 1957 and since

1шт.

7

523571R1

STANDARD, 1957 and since

1шт.

8

524021R91

FRAME, main, for 2-1/2 in. fast-hitch socket, 1957 and since

1шт.

8

525982R91

FRAME, main, for 3 in. fast-hitch socket, 1958 and since

1шт.

9

463950R1

SUPPORT, subsoil point, 1960 and since

1шт.

455238R1

LOCK PIN,1/2" x 2 1/2", Slotted

Pin, 1/2" x 2 1/2", Slotted

2шт.

10

463949R1

TOOTH

POINT, replaceable subsoil, 1960 and since

1шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8 x 2 plow type 1

1шт.

19083R1

PLOW BOLT,#3, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 plow type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

523573R11

BOLT W/NUT

1шт.

523562R1

ECCENTRIC

1шт.

523571R1

STANDARD

1шт.
