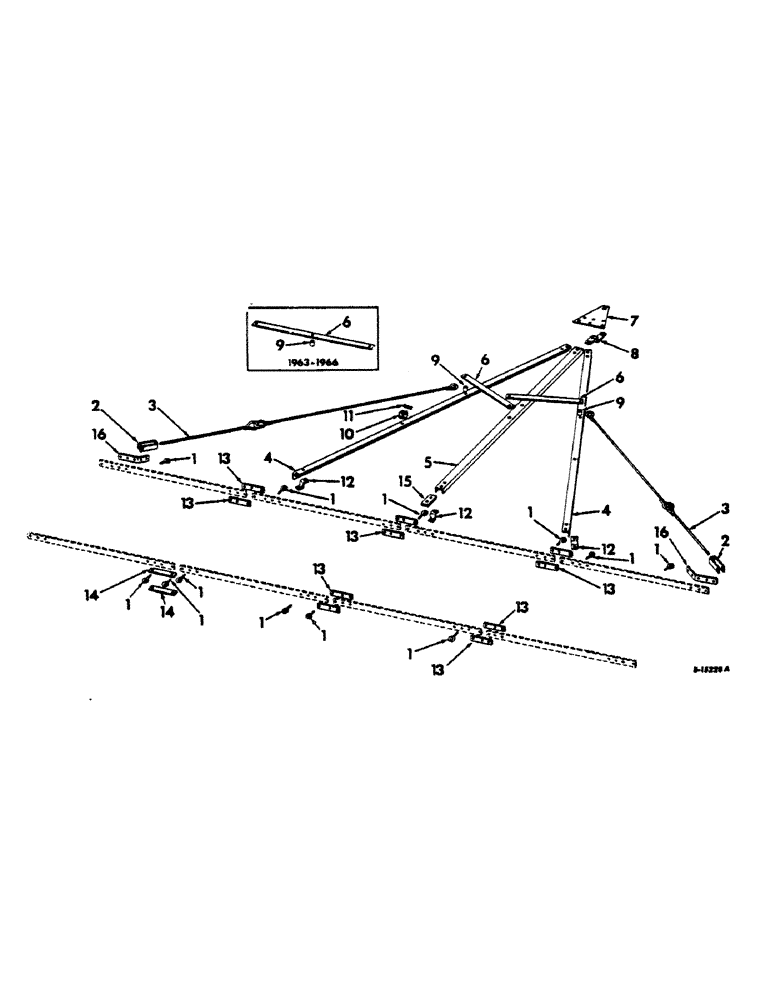

Запчасти Case IH 2 (A-08) - DRAWBARS, FOUR 42 OR 48 INCH SECTIONS, ALSO TWO 42 INCH AND TWO 48 INCH SECTIONS

1

472813R1

BOLT

EYEBOLT

12шт.

16038R1

WASHER

17/32 x 1 x 11 ga

4шт.

2

472842R1

CLEVIS, bail adjusting

2шт.

102637

NUT,1/2"-13, G5

2шт.

455388R1

NUT

1/2-13 MF hex. lock

2шт.

3

472843R91

BAIL ASSY, link

2шт.

4

472832R1

ANGLE, hitch

2шт.

5

472836R1

CHANNEL, center tie, for 42 inch sections, Serial Range: 1963-1966

1шт.

5

487285R1

CHANNEL, center tie, for 42 and 48 inch sections, 1967 and since

1шт.

6

472838R1

STRAP, brace, for 42 inch sections, Serial Range: 1963-1966

1шт.

6

487286R1

BAR, center channel brace, for 42 and 48 inch sections, 1967 and since

1шт.

7

472834R2

PLATE, hitch

1шт.

17447R1

BOLT

7/16-14 x 1-1/4 hex-hd mach

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

8

472835R1

STRAP, hitch

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 x 1-1/2 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

473321R1

SPACER, 3/8 x 1.06, for 42 inch sections, Serial Range: 1963-1966

3шт.

9

473321R1

SPACER, 3/8 x 1.06, for 42 and 48 inch sections, 1967 and since

2шт.

17522R1

BOLT, 7/16-14 x 2 hex-hd mach

3шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

10

472839R1

CLIP, transport

1шт.

17427R1

BOLT, 7/16-14 x 1 hex-hd mach

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

11

520175R1

CLIP

PIN, quick attachable cot.

1шт.

12

472840R1

STRAP, hammer

3шт.

17447R1

BOLT

7/16-14 x 1-1/4 hex-hd mach

3шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

3шт.

618020R1

PIN, 7/16 x 2-1/8 std-hd

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

13

472848R1

BAR, hinge

10шт.

604321R1

DOWEL

PIN, 1/2 x 1-3/4 std-hd

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Self-opening 3/16" x 1"

2шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

14

472847R1

BAR, rear hinge

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Self-opening 3/16" x 1"

2шт.

M801A

PIN

7/16 x 1-3/4 std-hd

2шт.

Q5028

WASHER

15/32 x 1 x 11 ga, 1967 and since

2шт.

15

487287R1

BAR, center channel extension, for 42 inch sections, 1967 and since

1шт.

16

487289R1

SUPPORT, bail link, for four 48 inch sections or two 42 and two 48 inch sections, 1967 and since

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

2шт.

21591R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1-3/4 std-hd

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

2шт.
