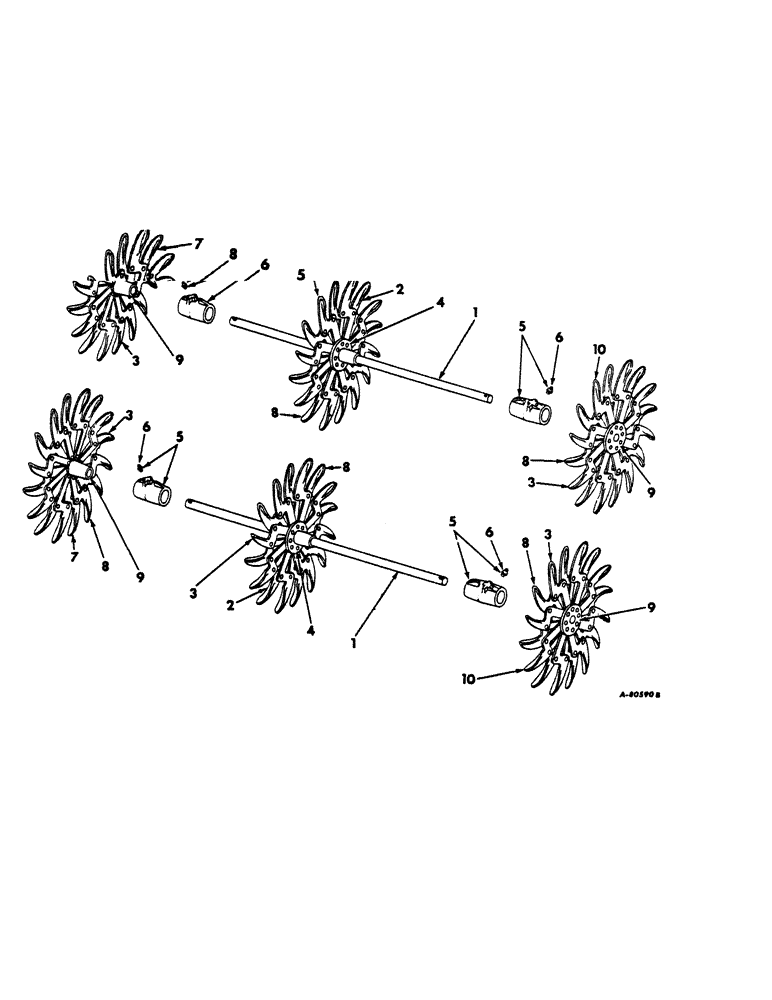

Запчасти Case IH 2 (A-05) - 21 INCH WHEELS, SHAFT AND BEARINGS, 4 ROTARY HOE

1

472814R1

SHAFT, wheel, for 4 rotary hoe w/42 in. section

1шт.

13122R1

PIN, 5/16 x 1-1/2 self-opening cot

4шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .134

4шт.

1

487283R1

SHAFT, wheel, for 4 rotary hoe w/48 inch sections

1шт.

13122R1

PIN, 5/16 x 1-1/2 self-opening cot

4шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .134

4шт.

2

472828R91

WHEEL

ASSEMBLY, 21 in. center, 42 inch section 10 used, 48 inch section 12 used

1шт.

3

472826R1

TOOTH

21 in. wheel inner, 8 per wheel

1шт.

104099

RIVET,But Hd, 5/16" x 1"

5/16 x 1 small b-hd, 2 per tooth

1шт.

104102

RIVET, 5/16 x 1-3/8 small b-hd, 8 per wheel

1шт.

4

472829R1

HUB

21 in. wheel center, 42 inch section 10 used, 48 inch section 12 used

1шт.

104102

RIVET, 5/16 x 1-3/8 small b-hd, 8 per wheel

1шт.

5

472815R21

TURNBUCKLE

BEARING, w/lub fitting, wheel hub

4шт.

6

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type str lub

4шт.

7

472823R92

WHEEL

ASSEMBLY, 21 in. outer LH, for 4 hoe w/42 & 48 in. sections

2шт.

8

472827R1

TOOTH

21 in. wheel outer, 8 per wheel

1шт.

104099

RIVET,But Hd, 5/16" x 1"

5/16 x 1 small b-hd, 2 per tooth

1шт.

104102

RIVET, 5/16 x 1-3/8 small b-hd, 8 per wheel

1шт.

9

472825R1

HUB

21 in. wheel outer, for 4 hoe w/42 & 48 in. sections

1шт.

104102

RIVET, 5/16 x 1-3/8 small b-hd, 8 per wheel

1шт.

10

472824R92

WHEEL

ASSEMBLY, 21 in. outer RH, for 4 hoe w/42 & 48 in. sections

2шт.
