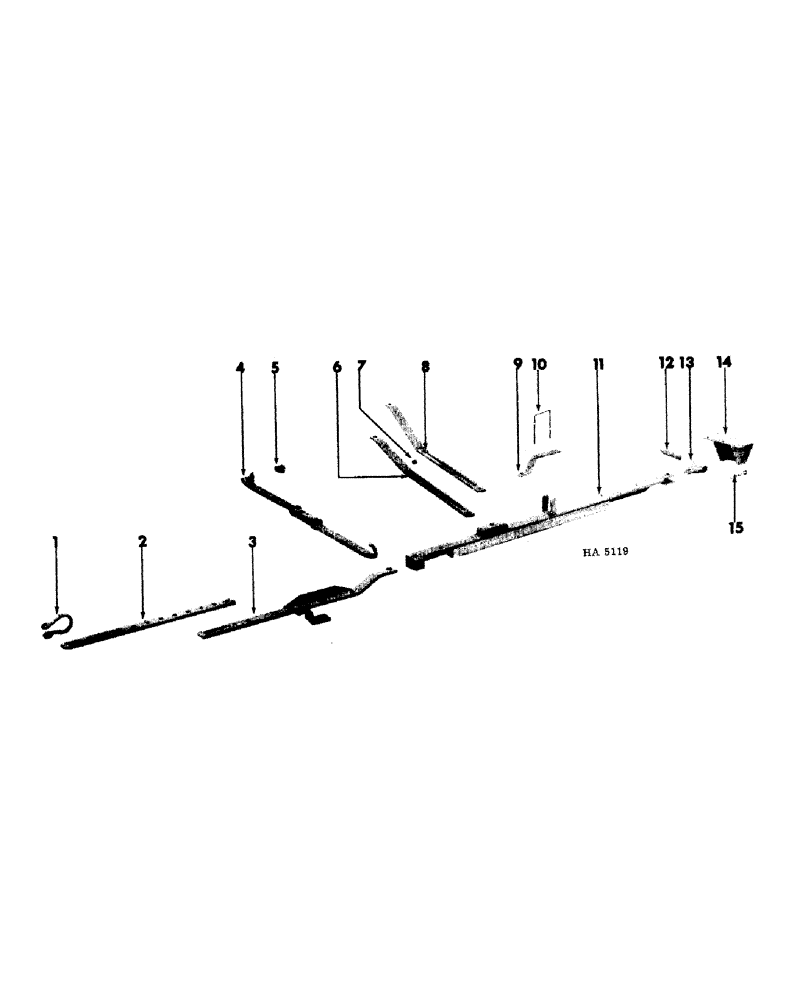

Запчасти Case IH 120 (02-04) - HITCH ASSEMBLY

1

PO13563

CLEVIS COUPLING

CLEVIS, tractor hitch

1шт.

Q1238

HEADED PIN,3/4" x 3 1/2"

3/4 X 3-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/4" COTTER PIN

1шт.

2

604677R1

EXTENSION, hitch

1шт.

3/4 X 2-1/2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

3/4" CAD-PLTD. LOCK WASHER

2шт.

3

604674R11

BAR ASSEMBLY, hitch

1шт.

604683R1

HEADED PIN,1" x 4 1/2"

1 X 4-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-3/4" COTTER PIN

1шт.

4

605273R1

LINK ASSEMBLY, guide (10 disk & 13 disk)

1шт.

K156

HEADED PIN,5/8" x 2 1/8"

5/8 X 2-1/8" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

5/16 X 1-1/2" COTTER PIN

1шт.

4

605273R1

LINK ASSEMBLY, guide (10 disk & 13 disk)

1шт.

K156

HEADED PIN,5/8" x 2 1/8"

5/8 X 2-1/8" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

5/16 X 1-1/2" COTTER PIN

1шт.

5

PO1517

STEERING KNUCKLE

KNUCKLE, front steering arm

1шт.

6

604871R1

STABILIZER, lower

1шт.

591296R1

7/8 X 5-5/8" STD-HD. DLD. PIN

1шт.

604874R1

BRACE

7/8 X 6-1/2" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

1/4 X 1-3/4" COTTER PIN

1шт.

7

F18303

V-BELT

V-BELT, Spacer, Stabilizer

1шт.

7/8 X 3-1/2" MACH. BOLT W/NUT

1шт.

7/8" LOCK WASHER

1шт.

8

604870R1

STABILIZER, upper

1шт.

591296R1

7/8 X 5-5/8" STD-HD. DLD. PIN

1шт.

604874R1

BRACE

7/8 X 6-1/2" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

1/4 X 1-3/4" COTTER PIN

1шт.

9

604869R1

BRACE, drawbar transport

1шт.

CP15696

7/8 X 3-1/4" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

10

604578R1

U-BOLT, drawbar transport brace

1шт.

1/2" HEX. NUT

2шт.

1/2" LOCK WASHER

2шт.

11

605269R12

MEMBER ASSEMBLY, main hitch front (10 disk & 13 disk)

1шт.

551681R1

7/8 X 2-1/2" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

3/16 X 1-1/2" COTTER PIN

1шт.

11

604681R12

MEMBER ASSEMBLY, main hitch front (16 disk, 19 disk & 23 disk)

1шт.

551681R1

7/8 x 2-1/2" std-hd. dld. pin

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

3/16 X 1-1/2" COTTER PIN

1шт.

11

604682R12

MEMBER ASSEMBLY, main hitch front (27 disk)

1шт.

551681R1

7/8 X 2-1/2" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

3/16 X 1-1/2" COTTER PIN

1шт.

12

604868R1

PIN, hitch trunnion

1шт.

1/4 X 1-3/4" COTTER PIN

2шт.

1-9/32 X 2-1/2 X 16 GAUGE WASHER

2шт.

13

604878R91

PLATE ASSEMBLY, hitch support

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8" - 90 DEGREE ELBOW LUBRICATION FITTING

1шт.

14

604859R91

BRACKET ASSEMBLY, hitch mounting

1шт.

1/2 X 7-1/4" CAD-PLTD. MACH. BOLT W/NUT

5шт.

1/2 X 7-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

1/2" CAD-PLTD. LOCK WASHER

6шт.

15

604876R91

CHAIN, main member front transport

1шт.

1/2 X 7-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

1/2" CAD-PLTD. LOCK WASHER

1шт.

17/32 X 1 X 11 GAUGE WASHER

2шт.
