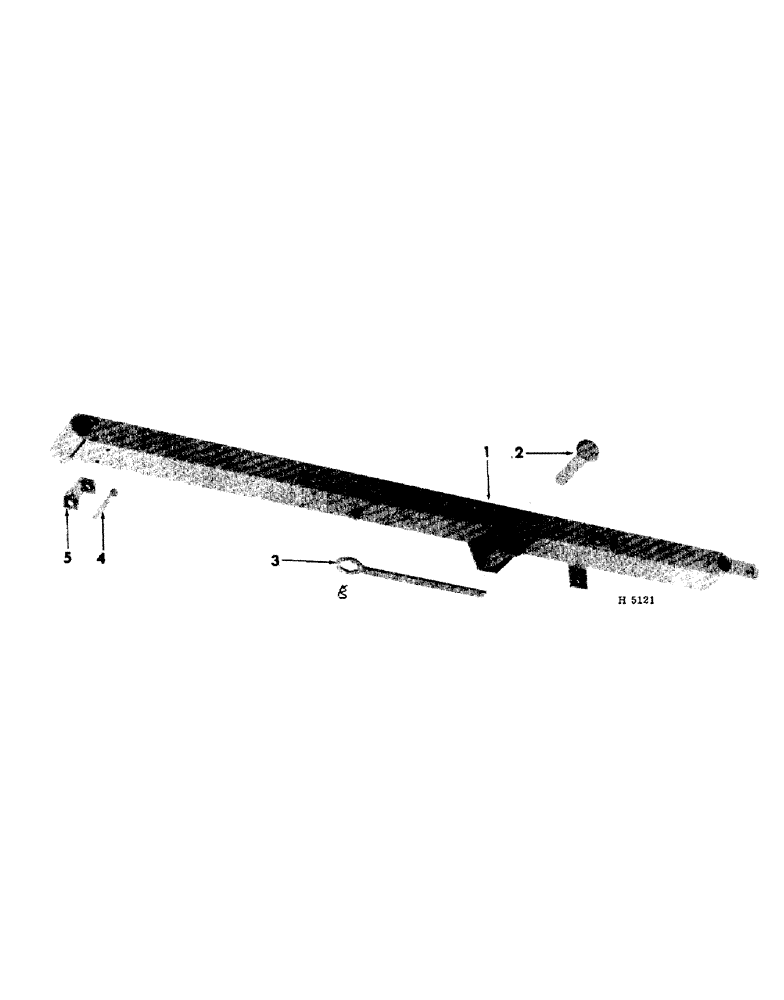

Запчасти Case IH 120 (02-03) - REAR CARRIAGE BEAM

1

604722R91

BEAM ASSEMBLY, rear carriage (1960-62)

1шт.

3/4 X 4-1/2" SQ-HD. MACH. BOLT W/NUT

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

1

607163R91

BEAM ASSEMBLY, rear carriage (1962-)

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

2

608800R11

PIN, frame connection (1964-)

1шт.

5/16 X 2-1/2" COTTER PIN

1шт.

2

604710R11

PIN, frame connection (1960-64)

1шт.

5/16 x 2-1/2" cotter pin

1шт.

3

604608R11

WRENCH, locking

1шт.

4

604721R1

PIN, locking (1960-62)

1шт.

3/16 X 1-1/4" COTTER PIN

1шт.

4

607164R1

PIN, locking (1962-)

1шт.

3/16 X 1-1/4" COTTER PIN

1шт.

5

604712R1

BRACKET, locking pin

1шт.

1/2 X 4-3/4" CAD-PLTD. CARRIAGE BOLT W/NUT

2шт.

1/2" CAD-PLTD. LOCK WASHER

2шт.

604738R1

BUSHING

rear axle (Illustrated w/dual & single rear furrow wheel)

1шт.

7/16 X 3-3/8" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.
