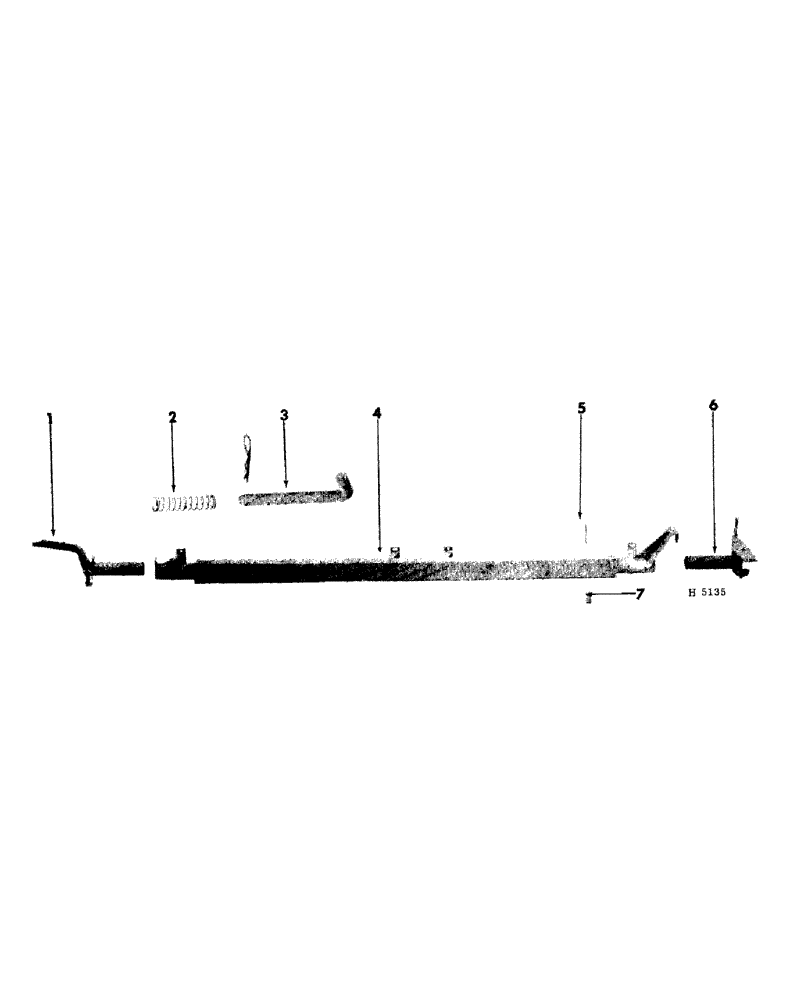

Запчасти Case IH 120 (02-02) - MAIN FRAME

1

604860R91

SUPPORT, front furrow wheel

1шт.

3/4 X 7-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

3/4" CAD-PLTD. LOCK WASHER

1шт.

2

16046D

SPRING

locking pin

1шт.

3

604829R1

PIN, frame locking

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

3/16 X 1-1/2" COTTER PIN

1шт.

29/32 X 1-1/2 X 11 GA. WASHER

1шт.

4

604862R91

FRAME ASSEMBLY, 10 disks

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

4

604863R91

FRAME ASSEMBLY, 13 disks

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

4

604864R91

FRAME ASSEMBLY, 16 disks

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

4

604865R91

FRAME ASSEMBLY, 19 disks

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

4

604866R91

FRAME ASSEMBLY, 23 disks

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

4

604867R91

FRAME ASSEMBLY, 27 disks

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

5

604578R1

"U" BOLT, hitch carrier (19, 23 and 27 disk)

1шт.

1/2" HEX. NUT

2шт.

1/2" LOCK WASHER

2шт.

6

CONNECTION ASSEMBLY, main beam rear (1960-64) (Furnish 1 - 608793R91 connection and 1 - 608800R11 - pin)

1шт.

3/4 X 7-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

7/8 X 8-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

3/4" CAD-PLTD. LOCK WASHER

1шт.

7/8" CAD-PLTD. LOCK WASHER

1шт.

6

608793R11

CONNECTION ASSEMBLY, main beam rear (1964-)

1шт.

3/4 X 7-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

7/8 X 8-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

3/4" CAD-PLTD. LOCK WASHER

1шт.

7/8" CAD-PLTD. LOCK WASHER

1шт.

7

604594R1

CARRIER, hitch (19, 23 and 27 disk)

1шт.

604842R11

HANGER, center gang (13 disk only) (Special) (Not illustrated)

1шт.
