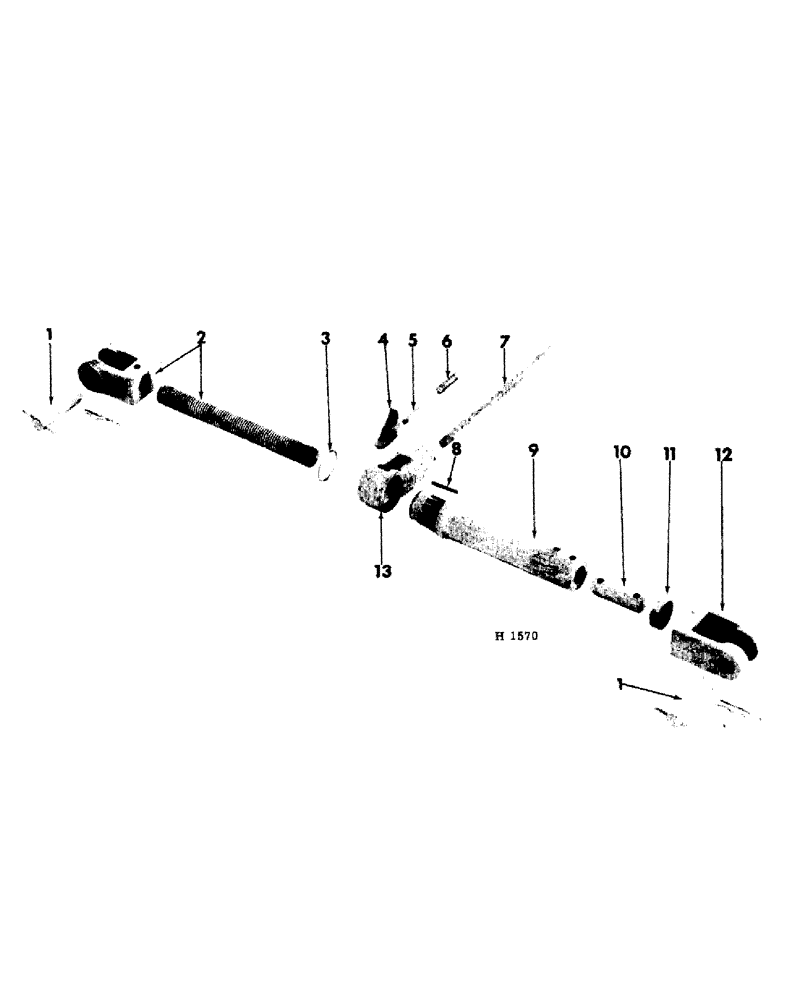

Запчасти Case IH 120 (02-13) - HAND LIFT ASSEMBLY

1

591104R1

PIN

hand lift locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

3/8 X 2-3/4" GROOVE PIN

1шт.

2

591117R91

CAPSCREW

SCREW ASSEMBLY, adjusting and cylinder head

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

3

591116R1

SNAP RING,#200, 1.909", Ext Spiral

RING, adjusting tube retaining

1шт.

4

591108R1

PAWL

RATCHET, hand lift

1шт.

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

5

591102R1

PIN

ratchet arm

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

13/32 X 3/4 X 16 GA. WASHER

2шт.

6

M296

SPRING

compression arm pin

1шт.

7

591103R1

ROD

ARM, ratchet lever

1шт.

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

8

591101R1

PIN

hand lift stop

1шт.

9

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

hand lift adjusting

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

1/8" PIPE PLUG

1шт.

2-1/32 X 2-3/4 X 14 GA. WASHER

2шт.

10

591105R1

ANCHOR

adjusting screw

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

591474R1

COLLAR

ADJUSTING SCREW COLLAR

1шт.

11

50738V

THRUST BEARING

thrust

1шт.

12

591110R1

YOKE

adjusting screw

1шт.

13

591109R1

SUPPORT

ratchet lever

1шт.
