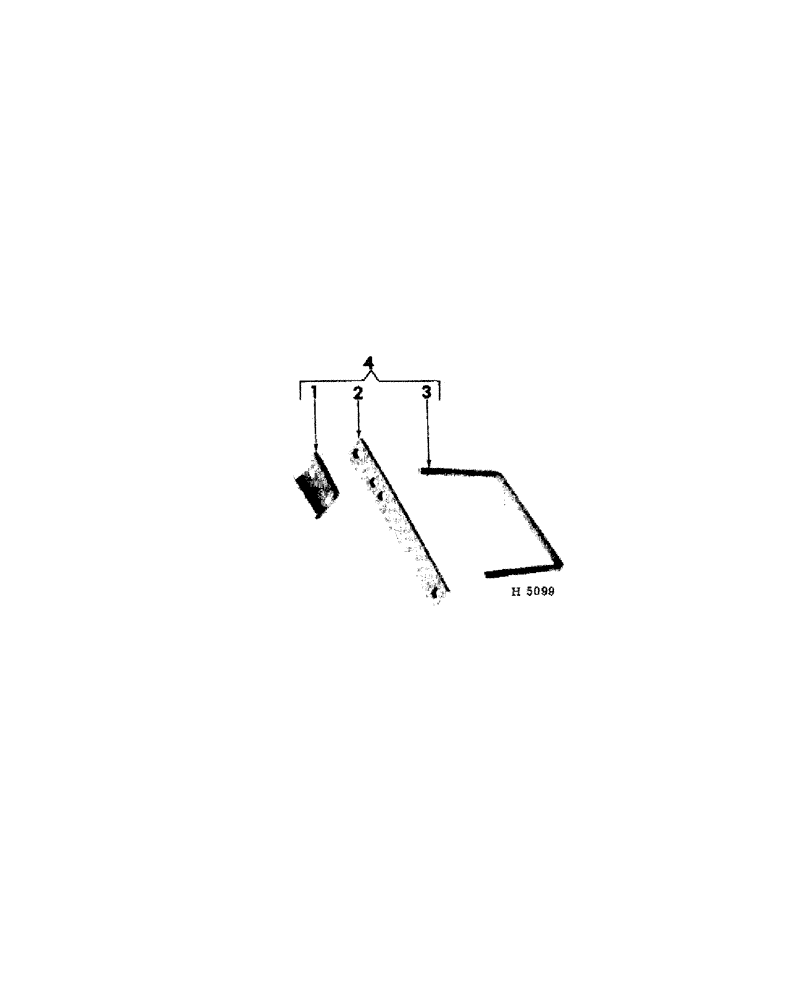

Запчасти Case IH 120 (02-13[A]) - SAFETY LIGHT MOUNTING PARTS

1

624341R1

SOCKET

mounting bracket

1шт.

2

602602R1

STRAP, lamp connection

1шт.

5/16 X 3/4" CARRIAGE BOLT W/NUT

2шт.

11/32 X 7/8 X 16 GA. WASHER

2шт.

5/16" LOCK WASHER

2шт.

3

602603R1

"U" BOLT, connection strap

1шт.

3/8" HEX. NUT

2шт.

4

602604R91

SOCKET ASSEMBLY, warning lamp, Composed of:

1шт.

624341R1

SOCKET

1шт.

602602R1

STRAP

1шт.

602603R1

"U" BOLT

1шт.

102635

NUT,3/8"-16, G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

Q398

WASHER

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.
