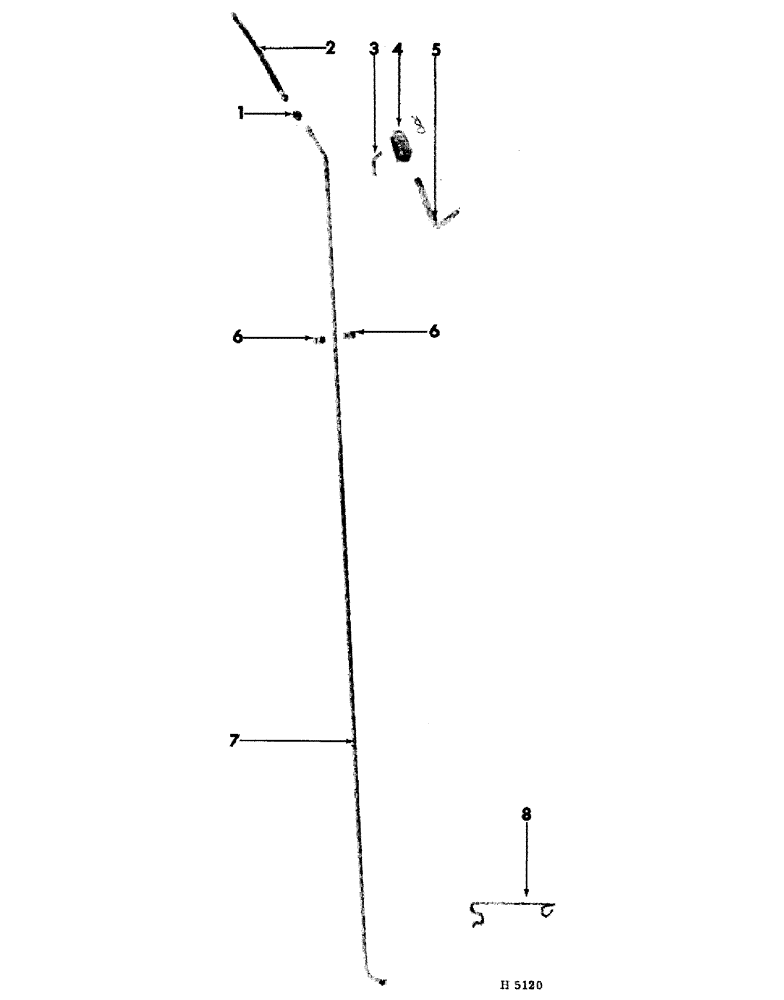

Запчасти Case IH 120 (02-11) - HYDRAULIC LIFT

1

9402749

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, Fem Pipe

CONNECTOR, hydraulic tube and hose

4шт.

2

363716R91

HOSE ASSEMBLY, hydraulic

1шт.

3

602801R1

PIN

locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

4

604763R1

LOOP, locking device

1шт.

5

604885R1

STUD, locking device

1шт.

1/4 X 1-1/2" COTTER PIN

2шт.

7/8" CAD-PLTD. HEX. NUT

2шт.

6

604886R1

CLAMP, hydraulic tube

1шт.

3/8 X 8-1/2" CAD-PLTD. CARRIAGE BOLT W/NUT

1шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

7

604887R11

TUBE ASSEMBLY, hydraulic (10 disk)

1шт.

7

604888R11

TUBE ASSEMBLY, hydraulic (13 disk)

1шт.

7

604889R11

TUBE ASSEMBLY, hydraulic (16 disk)

1шт.

7

604890R11

TUBE ASSEMBLY, hydraulic (19 disk)

1шт.

7

604891R11

TUBE ASSEMBLY, hydraulic (23 disk)

1шт.

7

604892R11

TUBE ASSEMBLY, hydraulic (27 disk)

1шт.

8

651793R11

SUPPORT

ASSEMBLY, flexible hose

1шт.

366064R1

CONNECTOR, ELEC

ADAPTOR, Serial Range: hose-cylinder

2шт.

461183R1

ADAPTER,1/2" - 14 ORB x 7/8" - 14 ORB

ADAPTOR, connector to front hose

2шт.
