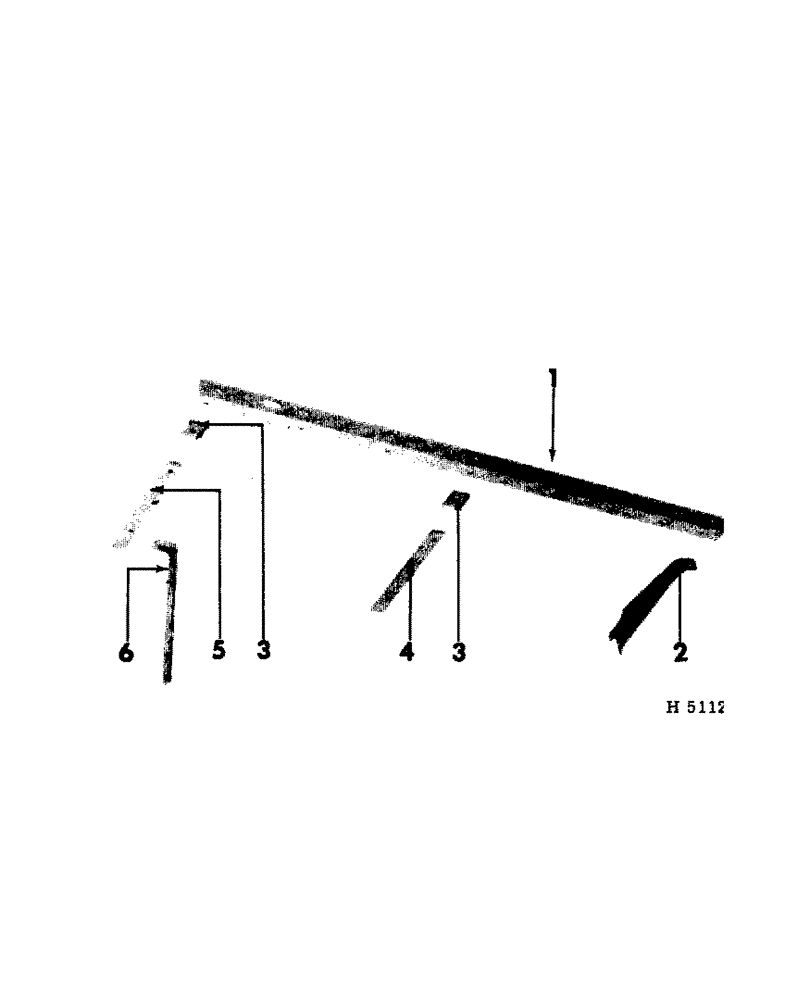

Запчасти Case IH 120 (02-10) - TRASH BAR ATTACHMENT
№
Артикул
Название
Примечание
Количество
1
604909R1
ANGLE, trash bar support (10 disk and 19 disk front)
1шт.
1
604912R1
ANGLE, trash bar support (13 disk)
1шт.
1
604810R1
ANGLE, trash bar support (16 disk rear)
1шт.
1
604908R1
ANGLE, trash bar support (16 disk front - 19 disk rear and 27 disk front and rear)
1шт.
1
604910R1
ANGLE, trash bar support (23 disk rear)
1шт.
1
604911R1
ANGLE, trash bar support (23 disk front)
1шт.
2
604906R1
SUPPORT, trash bar (22" disks)
1шт.
3/8 X 1-1/8" CAD-PLTD. HEX-HD. CAP SCREW
1шт.
551778R1
CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5
3/8 X 1-3/8" CARRIAGE BOLT W/NUT
1шт.
1/2 X 1-1/4" MACH. BOLT W/NUT
1шт.
13/32 X 3/4 X 16 GAUGE WASHER
2шт.
17/32 X 1 X 16 GAUGE WASHER (At slot)
1шт.
3/8" CAD-PLTD. LOCK WASHER
1шт.
3/8" LOCK WASHER
1шт.
1/2" LOCK WASHER
1шт.
2
604907R1
SUPPORT, trash bar (24 and 26" disks)
1шт.
3/8 X 1-1/8" CAD-PLTD. HEX-HD. CAP SCREW
1шт.
551778R1
CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5
3/8 X 1-3/8" CARRIAGE BOLT W/NUT
1шт.
1/2 X 1-1/4" MACH. BOLT W/NUT
1шт.
13/32 X 3/4 X 16 GAUGE WASHER
2шт.
17/32 X 1 X 16 GAUGE WASHER (At slot)
1шт.
3/8" CAD-PLTD. LOCK WASHER
1шт.
3/8" LOCK WASHER
1шт.
1/2" LOCK WASHER
1шт.
3
604798R1
CLAMP, trash bar
1шт.
7/16 X 1-1/2" MACH. BOLT W/NUT
1шт.
7/16" LOCK WASHER
1шт.
4
604804R1
PRONG, trash bar (22" disks)
1шт.
7/16 X 1-1/2" MACH. BOLT W/NUT
1шт.
7/16" LOCK WASHER
1шт.
4
604806R1
PRONG, trash bar (24 and 26" disks)
1шт.
7/16 X 1-1/2" MACH. BOLT W/NUT
1шт.
7/16" LOCK WASHER
1шт.
5
604805R1
PRONG, trash bar (22" disks) (At gang connection)
1шт.
7/16 X 1-1/2 MACH. BOLT W/NUT
1шт.
7/16" LOCK WASHER
1шт.
5
604807R1
PRONG, trash bar (24 and 26" disks) (At gang connection)
1шт.
7/16 X 1-1/2" MACH. BOLT W/NUT
1шт.
7/16" LOCK WASHER
1шт.
6
604905R1
BRACE, trash bar support
1шт.
3/8 X 1-3/8" MACH. BOLT W/NUT
1шт.
1/2 X 1-3/8" MACH. BOLT W/NUT
1шт.
13/32 X 1-1/4 X 16 GAUGE WASHER
1шт.
3/8" LOCK WASHER
1шт.
1/2" LOCK WASHER
1шт.
Выбрано товаров: 45
