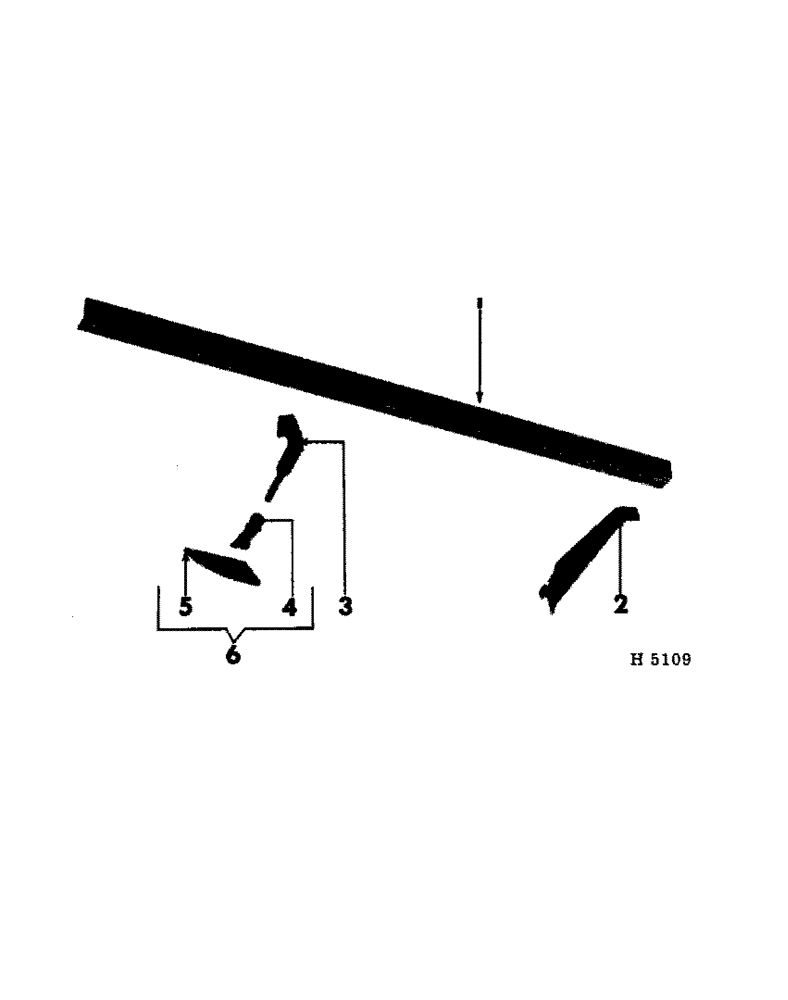

Запчасти Case IH 120 (02-10[A]) - SCRAPER ATTACHMENT

1

604909R1

ANGLE, scraper support (10 disk and 19 disk front)

1шт.

1

604912R1

ANGLE, scraper support (13 disk)

1шт.

1

604810R1

ANGLE, scraper support (16 disk rear)

1шт.

1

604908R1

ANGLE, scraper support (16 disk front and 19 disk rear and 27 disks front and rear)

1шт.

1

604910R1

ANGLE, scraper support (23 disk rear)

1шт.

1

604911R1

ANGLE, scraper support (23 disk front)

1шт.

2

604906R1

SUPPORT, scraper (22" disks)

1шт.

3/8 X 1-1/8" CAD-PLTD. HEX-HD. CAP SCREW

1шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

1шт.

13/32 X 3/4 X 16 GAUGE WASHER

1шт.

17/32 X 3/4 X 16 GAUGE WASHER

1шт.

17/32 X 1 X 16 GAUGE WASHER (At slot)

1шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

3/8" LOCK WASHER

1шт.

1/2" LOCK WASHER

1шт.

2

604907R1

SUPPORT, scraper (24 and 26" disks)

1шт.

3/8 X 1-1/8" CAD-PLTD. HEX-HD. CAP SCREW

1шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

1шт.

13/32 X 3/4 X 16 GAUGE WASHER

1шт.

17/32 X 1 X 16 GAUGE WASHER (At slot)

1шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

3/8" LOCK WASHER

1шт.

1/2" LOCK WASHER

1шт.

3

604818R2

STRAP, scraper (22" disks)

1шт.

7/16 X 1-1/4" MACH. BOLT W/NUT

1шт.

1/4 X 1-1/2" SPIROL PIN

1шт.

15/32 X 1-1/4 X 16 GA. WASHER

1шт.

7/16" LOCK WASHER

1шт.

3

604819R2

STRAP, scraper (24 and 26" disks)

1шт.

7/16 X 1-1/4" MACH. BOLT W/NUT

1шт.

1/4 X 1-1/2" SPIROL PIN

1шт.

15/32 X 1-1/4 X 16 GA. WASHER

1шт.

7/16" LOCK WASHER

1шт.

4

604817R1

PIVOT, scraper

1шт.

5

604820R1

BLADE, scraper (24 and 26" disks)

1шт.

9/32 X 7/8" BUTTON-HD. RIVET

3шт.

5

605978R1

BLADE, scraper (22" disks)

1шт.

9/32 X 7/8" BUTTON-HD. RIVET

3шт.

6

604821R91

SCRAPER ASSEMBLY, disk (24 and 26" disks), Composed of:

1шт.

604820R1

BLADE

1шт.

604817R1

PIVOT

1шт.

134685

RIVET

3шт.

6

605987R91

SCRAPER ASSEMBLY, disk (22" disks), Composed of:

1шт.

605978R1

BLADE

1шт.

604817R1

PIVOT

1шт.

134685

RIVET

3шт.
