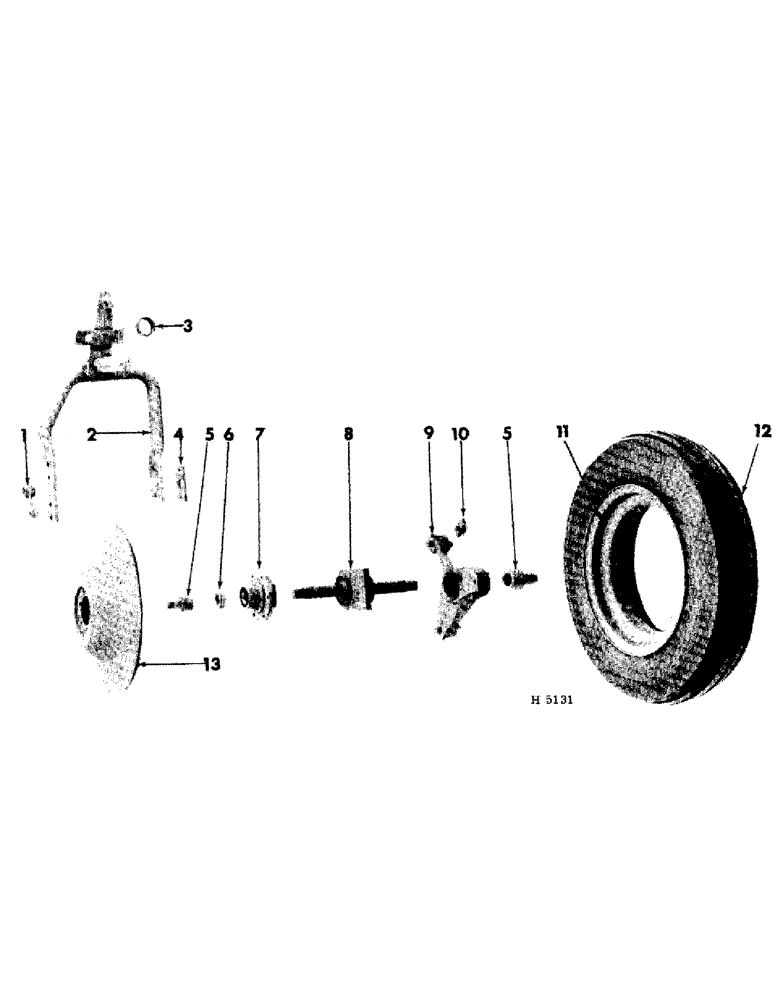

Запчасти Case IH 120 (02-09) - DUAL REAR FURROW WHEEL

1

604727R1

BRACKET

rear furrow wheel locating

2шт.

3/4 X 2-3/4" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

3/8 X 2" SPIROL PIN

1шт.

2

604741R91

FORK, dual wheel (1960-61)

1шт.

2-9/32 X 3 X 14 GA. WASHER (Or use as required)

4шт.

2

607162R91

FORK, dual wheel (1962-)

1шт.

607165R1

3/4 X 5-3/4" CAD-PLTD. HEX-HD. MACH. BOLT W/NUT (Special)

1шт.

2-9/32 X 3 X 14 GA. WASHER (Or use as required)

4шт.

3

604738R1

BUSHING

fork shank

1шт.

7/16 X 3-3/8" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.

4

604733R1

PLATE

fork locating

2шт.

1/2 X 1-5/8" MACH. BOLT W/NUT

4шт.

1/2" LOCK WASHER

4шт.

5

604728R1

EXTENSION

axle spindle

2шт.

3/8 X 2" SPIROL PIN

4шт.

1-9/32 X 2-1/2 X 16 GA. WASHER (Between spirol pin and lock plate) (Use as required)

1шт.

1-9/32 X 2-1/2 X 11 GA. WASHER (Or use as required)

2шт.

1-17/32 X 2 X 11 GA. WASHER (Or use as required)

2шт.

6

604701R1

BEARING, axle spindle

4шт.

7

604685R1

HUB

wheel

1шт.

8

604740R91

AXLE, dual wheel

1шт.

604703R1

NUT

1/4 X 2" COTTER PIN

2шт.

1-1/2" HEX-SLTD. NUT

2шт.

9

604724R1

HUB, three spoke wheel

1шт.

10

604725R1

CLAMP

three spoke wheel hub

3шт.

1/2-20 NF X 1-3/4" CAD-PLTD. HEX-HD. BOLT

3шт.

17/32 X 7/8 X 16 GA. WASHER

3шт.

1/2" CAD-PLTD. LOCK WASHER

3шт.

11

604739R1

RIM

drop center wheel

1шт.

12

TIRE, 5.90 x 15", 6 ply implement type pneumatic

1шт.

12

TUBE, 5.90 x 15" inner

1шт.

13

604726R1

WHEEL

rear furrow

1шт.

1/2-20 NF X 3-3/4" CAD-PLTD. HEX-HD. BOLT

6шт.

1/2" CAD-PLTD. LOCK WASHER

6шт.
