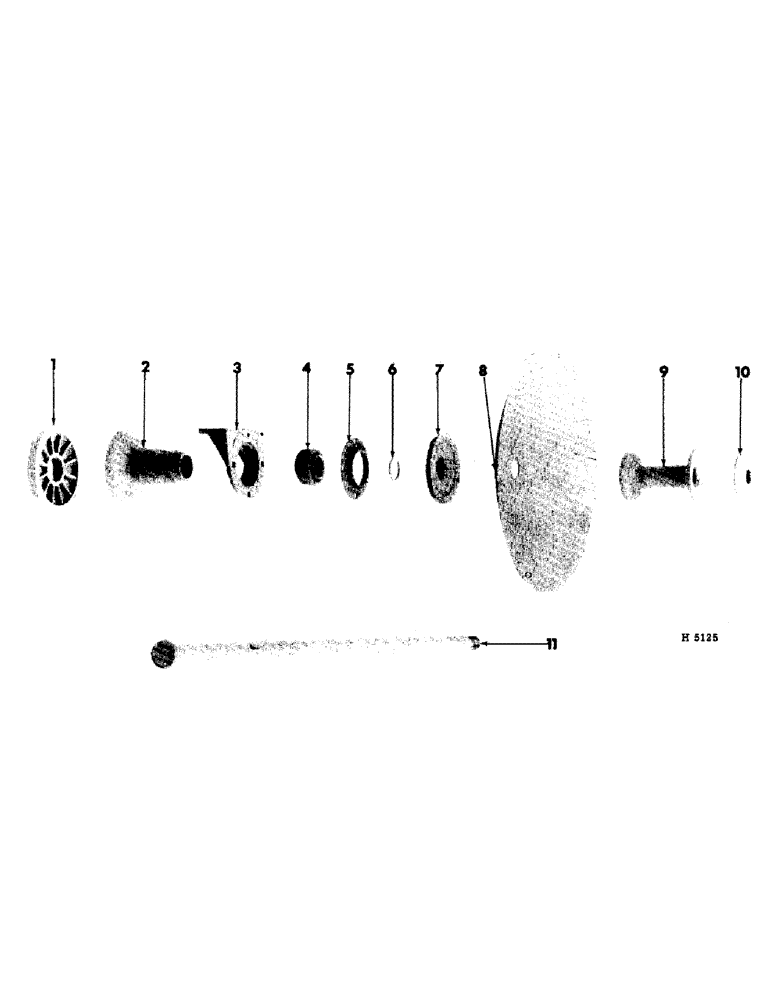

Запчасти Case IH 120 (02-05) - GANG ASSEMBLY

1

604551R1

WASHER

rear gang

1шт.

2

604544R1

SPACER

left bearing

1шт.

3

604823R1

STANDARD, anti-friction bearing

1шт.

3/8 X 3/4" CAD-PLTD. MACH. BOLT

1шт.

3/8 X 1" CAD-PLTD. CARRIAGE BOLT W/NUT

3шт.

5/8 X 2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

3/8" CAD-PLTD. LOCK WASHER

4шт.

5/8" CAD-PLTD. LOCK WASHER

2шт.

21/32 X 1-1/4 X 16 GA. WASHER

4шт.

4

ST607

BEARING, gang

1шт.

5

652386R1

FLANGE

RETAINER, bearing

1шт.

6

604640R1

WASHER, gang (Use only with 604858R1 8 ga. disk and 604634R1 - 9 ga. disk)

1шт.

7

604545R2

CAP

SPACER, bearing right

1шт.

8

604633R1

DISC

DISK, carbon steel, 22" dia. x 6 ga. (Special)

1шт.

8

604634R1

DISK, carbon steel, 22" dia. x 9 ga. (Special)

1шт.

8

604635R1

DISK, alloy steel, 22" dia. x 6 ga. (Special)

1шт.

8

604636R1

DISC

DISK, carbon steel, 24" dia. x 3/16" (Special)

1шт.

8

604637R1

DISC

DISK, alloy steel, 24" dia. x 3/16" (Special)

1шт.

8

604638R1

DISC

DISK, carbon steel, 26" dia. x 3/16" (Special)

1шт.

8

604639R1

DISC

DISK, alloy steel, 26" dia. x 3/16" (Special)

1шт.

8

604858R1

DISC

DISK, carbon steel, 24" dia. x 8 ga. (Regular)

1шт.

9

604555R1

SPOOL, spacer

1шт.

10

604550R2

WASHER

front gang

1шт.

11

604824R1

BOLT, arbor (10 and 19 disk front)

1шт.

218448

HANDLE

1-1/2" HEX. JAM NUT

2шт.

605990R1

1-17/32 X 2-1/2 X 7 GA. WASHER

1шт.

11

604825R1

BOLT, arbor (13 disk)

1шт.

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

1-1/2" HEX. JAM NUT

2шт.

605990R1

1-17/32 X 2-1/2 X 7 GA. WASHER

1шт.

11

604590R3

BOLT, arbor (16 disk rear)

1шт.

218448

HANDLE

1-1/2" HEX. JAM NUT

2шт.

605990R1

1-17/32 X 2-1/2 X 7 GA. WASHER

1шт.

11

604826R1

BOLT, arbor (16 disk front, 19 disk rear and 27 disk) (3 used 27 disk)

1шт.

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

1-1/2" HEX. JAM NUT (6 used 27 disk)

2шт.

605990R1

1-17/32 X 2-1/2 X 7 GA. WASHER (3 used 27 disk)

1шт.

11

604827R1

BOLT, arbor (23 disk rear)

1шт.

218448

HANDLE

1-1/2" HEX. JAM NUT

2шт.

605990R1

1-17/32 X 2-1/2 X 7 GA. WASHER

1шт.

11

604828R1

BOLT, arbor (23 disk front)

1шт.

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

1-1/2" HEX. JAM NUT

2шт.

605990R1

1-17/32 X 2-1/2 X 7 GA. WASHER

1шт.
