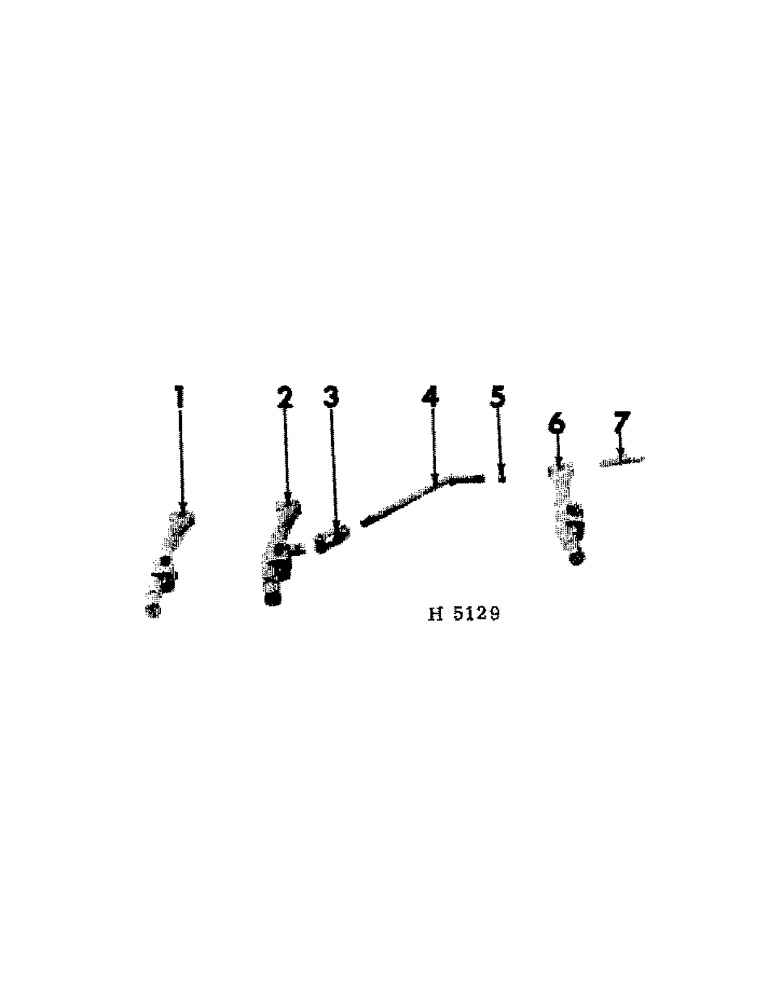

Запчасти Case IH 110 (01-04[A]) - DRAG LINKS AND THRUST ROD

1

604668R91

LINK, no. 1 drag (1960-61)

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8"-45 DEGREE LUBRICATION FITTING

1шт.

1

604667R91

LINK, no. 1 drag (1961-)

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8"-45 DEGREE LUBRICATION FITTING

1шт.

2

604669R91

LINK, no. 2 drag

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8"-45 DEGREE LUBRICATION FITTING

1шт.

3

604568R1

CLEVIS, thrust rod adjustable

1шт.

5/8 X 2-1/4" STD-HD. DLD. PIN

1шт.

3/16 X 1-1/4" COTTER PIN

1шт.

4

604573R11

ROD, thrust

1шт.

427648

NUT

1" HEX. SLTD. NUT

1шт.

1/4 X 2" COTTER PIN

2шт.

605884R1

1-1/32 X 1-1/2 X 11 GA. WASHER

2шт.

5

PO14726

SPACER, thrust rod

1шт.

6

604667R91

LINK, drag

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8"-45 DEGREE LUBRICATION FITTING

1шт.

7

604570R1

PIN

drag link

1шт.

3/16 X 1-3/4" COTTER PIN

2шт.

1-9/32 X 2 X 16 GA. WASHER

2шт.
