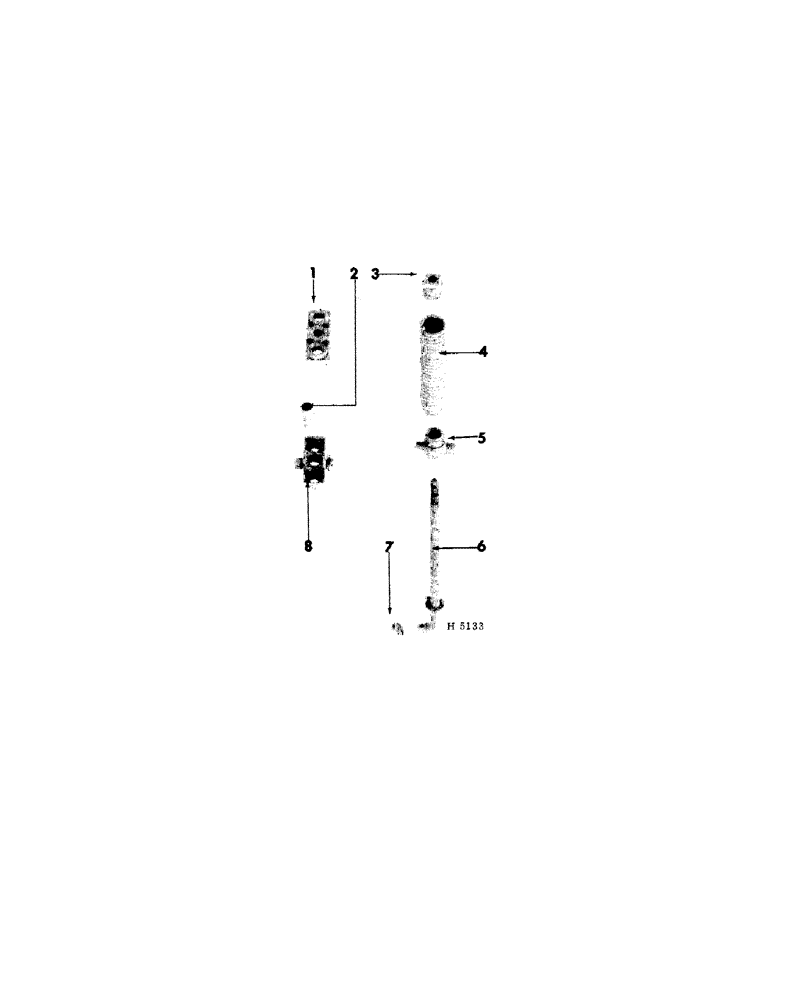

Запчасти Case IH 110 (01-03[A]) - GANG LIFT EXTENSION SPRING

1

604557R1

RETAINER, spring upper

1шт.

3/4 X 2" CAD-PLTD. MACH. BOLT

2шт.

3/4" CAD-PLTD. LOCK WASHER

2шт.

2

604643R1

BUSHING, spring retainer

1шт.

3

604540R1

PLUG, extension spring

1шт.

4

604645R1

SPRING, gang lift extension

1шт.

5

604541R1

PLUG, extension spring lower

1шт.

6

604575R11

ROD, lift

1шт.

5/16 X 1-1/2" COTTER PIN

1шт.

1-7/32 X 1-1/2 X 16 GA. WASHER

1шт.

3/4" HEX. NUT

1шт.

7

604642R1

BUSHING, lift rod

1шт.

8

604558R11

RETAINER, spring lower (Includes bushing - 604643R1)

1шт.

3/4 X 2" CAD-PLTD. MACH. BOLT

2шт.

3/4" CAD-PLTD. LOCK WASHER

2шт.
