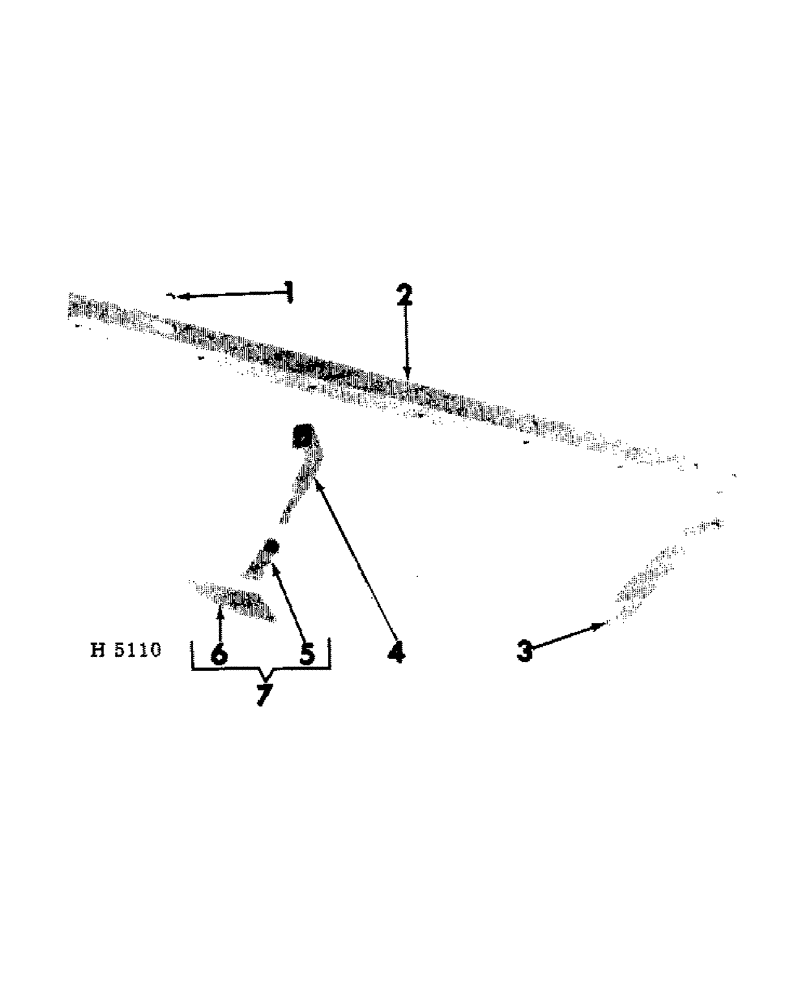

Запчасти Case IH 110 (01-14) - SCRAPER ATTACHMENT

1

L13765

GROMMET

SPACER, cross support angle

1шт.

2

605211R1

ANGLE, scraper cross support

1шт.

3

604800R1

SUPPORT, scraper angle (22" disks)

1шт.

3/8 X 1-1/8" CAD-PLTD. HEX-HD. BOLT

1шт.

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT (At spacer)

1шт.

13/32 X 3/4 X 16 GA. WASHER

2шт.

17/32 X 1-3/4 X 3/16" WASHER (At spacer)

1шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

3/8" LOCK WASHER

1шт.

1/2" LOCK WASHER

1шт.

3

604801R1

SUPPORT, scraper angle (24 and 26" disks)

1шт.

3/8 X 1-1/8" CAD-PLTD. HEX-HD. BOLT

1шт.

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT (At spacer)

1шт.

13/32 X 3/4 X 16 GA. WASHER

2шт.

17/32 X 1-3/4 X 3/16" WASHER (At spacer)

1шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

3/8" LOCK WASHER

1шт.

1/2" LOCK WASHER

1шт.

4

604818R2

STRAP, scraper (22" disks)

1шт.

7/16 X 1-1/4" MACH. BOLT W/NUT

1шт.

1/4 X 1-1/2" SPIROL PIN

1шт.

15/32 X 1-1/4 X 16 GA. WASHER

1шт.

7/16" LOCK WASHER

1шт.

4

604819R2

STRAP, scraper (24 and 26" disks)

1шт.

7/16 X 1-1/4" MACH. BOLT W/NUT

1шт.

1/4 X 1-1/2" SPIROL PIN

1шт.

15/32 X 1-1/4 X 16 GA. WASHER

1шт.

7/16" LOCK WASHER

1шт.

5

604817R1

PIVOT, scraper

1шт.

6

604820R1

BLADE, scraper (24 and 26" disks)

1шт.

9/32 X 7/8" BUTTON-HD. RIVET

3шт.

6

605978R1

BLADE, scraper (22" disks)

1шт.

9/32 X 7/8" BUTTON-HD. RIVET

3шт.

7

604821R91

SCRAPER ASSEMBLY, disk (24 and 26" disks), Composed of

1шт.

604820R1

BLADE

1шт.

604817R1

PIVOT

1шт.

134685

RIVET

3шт.

7

605987R91

SCRAPER ASSEMBLY, disk (22" disks), Composed of

1шт.

605978R1

BLADE

1шт.

604817R1

PIVOT

1шт.

134685

RIVET

3шт.
