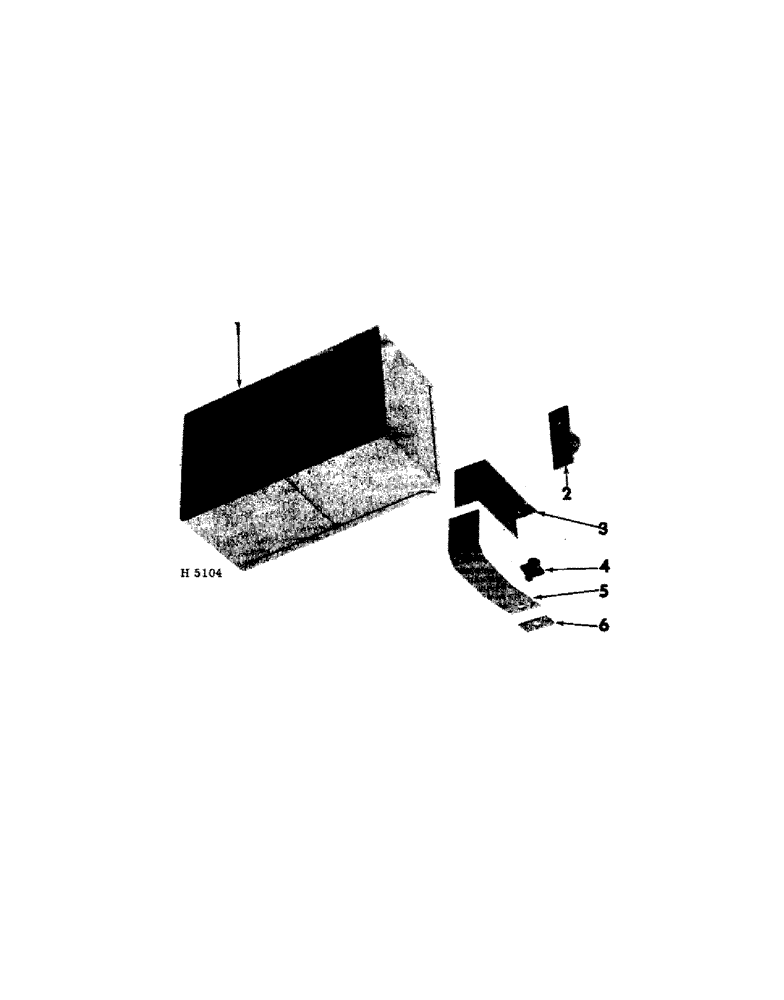

Запчасти Case IH 110 (01-13[B]) - SINGLE REAR FURROW WHEEL WEIGHT BOX ATTACHMENT

1

604769R91

BOX

ASSEMBLY, weight

1шт.

2

604779R91

STRAP ASSEMBLY, weight box reinforcement

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

3

604780R91

SUPPORT ASSEMBLY, weight box left

1шт.

3/8 X 1" MACH. BOLT W/NUT

2шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2 X 1-1/2" MACH. BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

1/2" LOCK WASHER

4шт.

4

604778R91

EXTENSION ASSEMBLY, single wheel axle

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

1/4 X 1-3/4" COTTER PIN

1шт.

1-9/32 X 2 X 11 GAUGE WASHER (Use as required0

2шт.

5

604775R1

SUPPORT, weight box right

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

6

604733R1

PLATE

right locking support

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.
