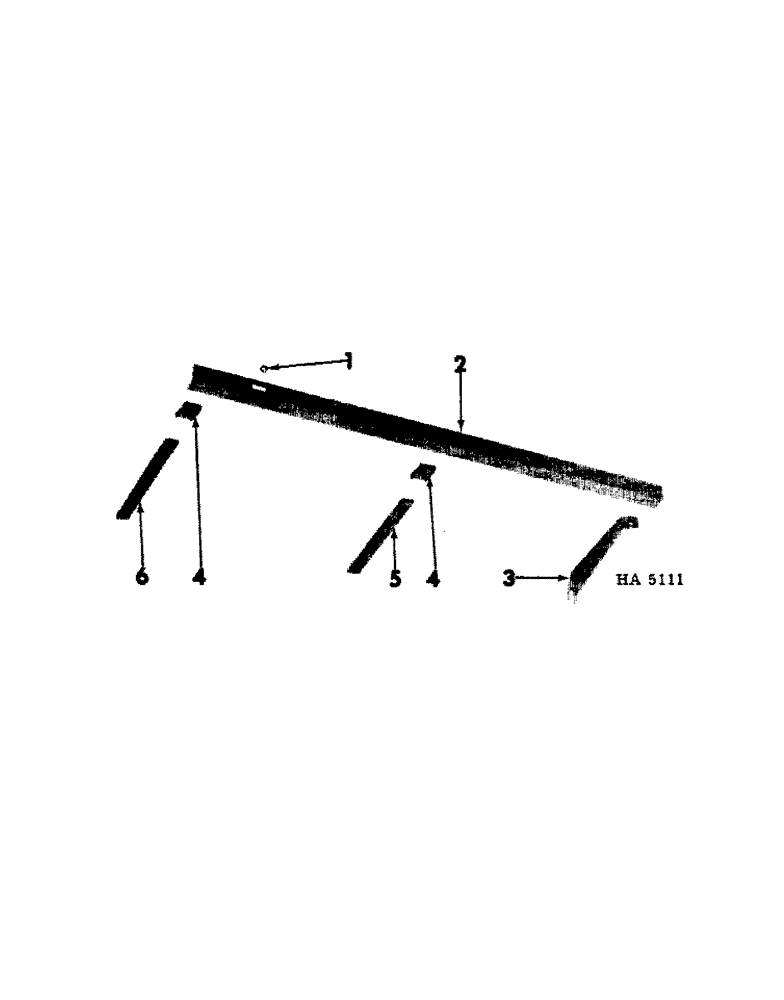

Запчасти Case IH 110 (01-12[B]) - TRASH BAR ATTACHMENT

1

L13765

GROMMET

SPACER, support channel

1шт.

2

605211R1

ANGLE, trash bar support

1шт.

3

604800R1

SUPPORT, trash bar (22" disk)

1шт.

3/8 X 1-1/8" CAD-PLTD. HEX-HD. CAP SCREW

1шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT (At spacer)

1шт.

13/32 X 3/4 X 16 GAUGE WASHER

2шт.

17/32 X 1-3/4 X 3/16" WASHER (At spacer)

1шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

3/8" LOCK WASHER

1шт.

1/2" LOCK WASHER

1шт.

3

604801R1

SUPPORT, trash bar (24" disks & 26" disks)

1шт.

3/8 X 1-1/8" CAD-PLTD. HEX-HD. CAP SCREW

1шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT (At spacer)

1шт.

13/32 X 3/4 X 16 GAUGE WASHER

2шт.

17/32 X 1-3/4 X 3/16" GAUGE WASHER (At spacer)

1шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

3/8" LOCK WASHER

1шт.

1/2" LOCK WASHER

1шт.

4

604798R1

CLAMP, trash bar

1шт.

7/16 X 1-1/2" MACH. BOLT W/NUT

1шт.

7/16" LOCK WASHER

1шт.

5

604804R1

PRONG, trash bar (22" disk)

1шт.

7/16 X 1-1/2" MACH. BOLT W/NUT

1шт.

7/16" LOCK WASHER

1шт.

5

604806R1

PRONG, trash bar (24" disks & 26" disks)

1шт.

7/16 X 1-1/2" MACH. BOLT W/NUT

1шт.

7/16" LOCK WASHER

1шт.

6

604805R1

PRONG, trash bar (22" disks) (At gang connection)

1шт.

7/16 X 1-1/2" MACH. BOLT W/NUT

1шт.

7/16" LOCK WASHER

1шт.

6

604807R1

PRONG, trash bar (24" disks & 26" disks) (At gang connection)

1шт.

7/16 X 1-1/2" MACH. BOLT W/NUT

1шт.

7/16" LOCK WASHER

1шт.
