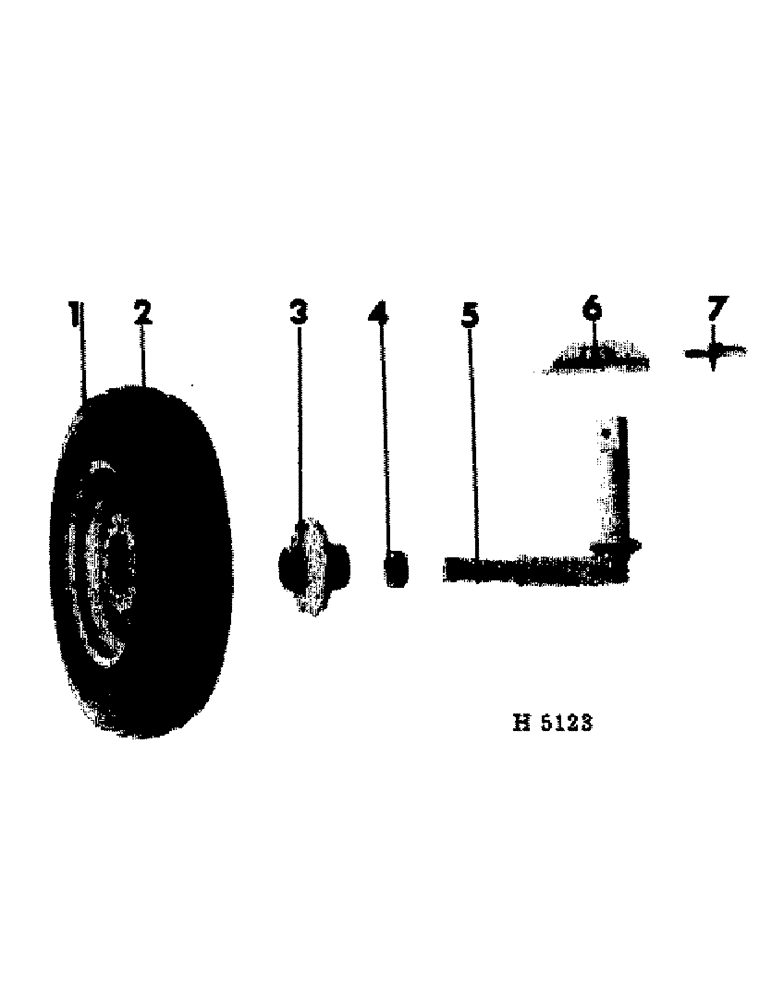

Запчасти Case IH 110 (01-10) - LAND WHEEL

1

604700R91

RIM

DISK AND RIM

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL BOLT

6шт.

2

TIRE, 5.90 x 15", 4 ply implement type pneumatic (Special)

1шт.

2

TIRE, 6.70 x 15", 6 ply implement type pneumatic (Regular)

1шт.

2

TUBE, 5.90 x 15" inner (Special)

1шт.

2

TUBE, 6.70 x 15" inner (Regular)

1шт.

3

604685R1

HUB

wheel

1шт.

4

604701R91

BALL BEARING

axle spindle

2шт.

5

604709R91

AXLE, land wheel

1шт.

604703R1

NUT

1-1/2" HEX. SLTD. NUT

1шт.

1/4 X 2" COTTER PIN

1шт.

6

604708R11

CONTROL, land wheel

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

7

600589R1

"U" BOLT, control arm

1шт.

5/8" HEX. NUT

2шт.

5/8" LOCK WASHER

2шт.
