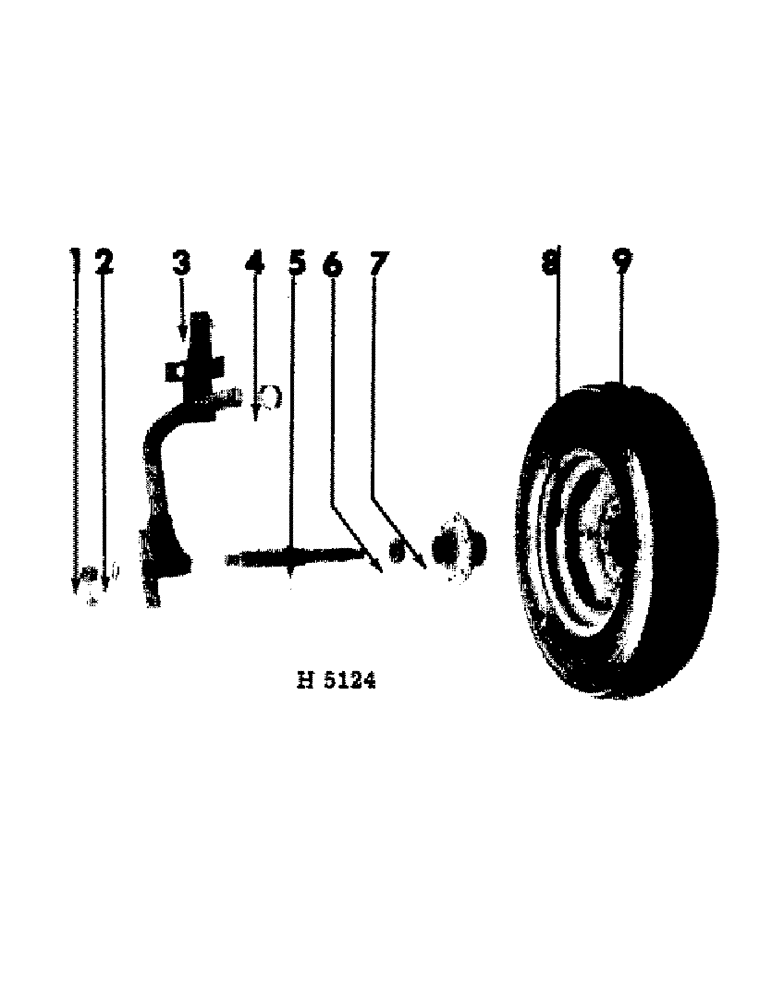

Запчасти Case IH 110 (01-10[A]) - SINGLE REAR FURROW WHEEL

1

604727R1

BRACKET

furrow wheel locating

1шт.

3/4 X 2-1/2" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

3/8 X 2" SPIROL PIN

1шт.

2

604925R1

WASHER

axle (1-1/32 x 2-3/4 x 1/4")

1шт.

3

604749R91

SHANK, single wheel (1960-62)

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2-5/16 X 3 X 11 GA. WASHER (Or use as required)

4шт.

3

607158R91

SHANK, single wheel (1962-)

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

607165R1

3/4 X 5-3/4" CAD-PLTD. HEX-HD. MACH. BOLT W/NUT (Special)

1шт.

2-5/16 X 3 X 11 GA. WASHER (Or use as required)

4шт.

4

604738R1

BUSHING

rear axle

1шт.

7/16 X 3-3/8" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.

5

604743R11

AXLE, single wheel

1шт.

604703R1

NUT

1-1/2" HEX. SLTD. NUT

1шт.

1/4 X 2" COTTER PIN

1шт.

1-9/32 X 2-1/2 X 16 GA. WASHER (Or use as required)

2шт.

6

604701R91

BALL BEARING

axle spindle

2шт.

7

604685R1

HUB

wheel

1шт.

8

604700R91

RIM

DISK AND RIM

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL BOLT

6шт.

9

TIRE, 5.90 x 15", 4 ply implement type pneumatic (Special)

1шт.

9

TIRE, 6.70 x 15", 6 ply implement type pneumatic (Regular)

1шт.

9

TUBE, 5.90 x 15" inner (Special)

1шт.

9

TUBE, 6.70 x 15" inner (Regular)

1шт.
