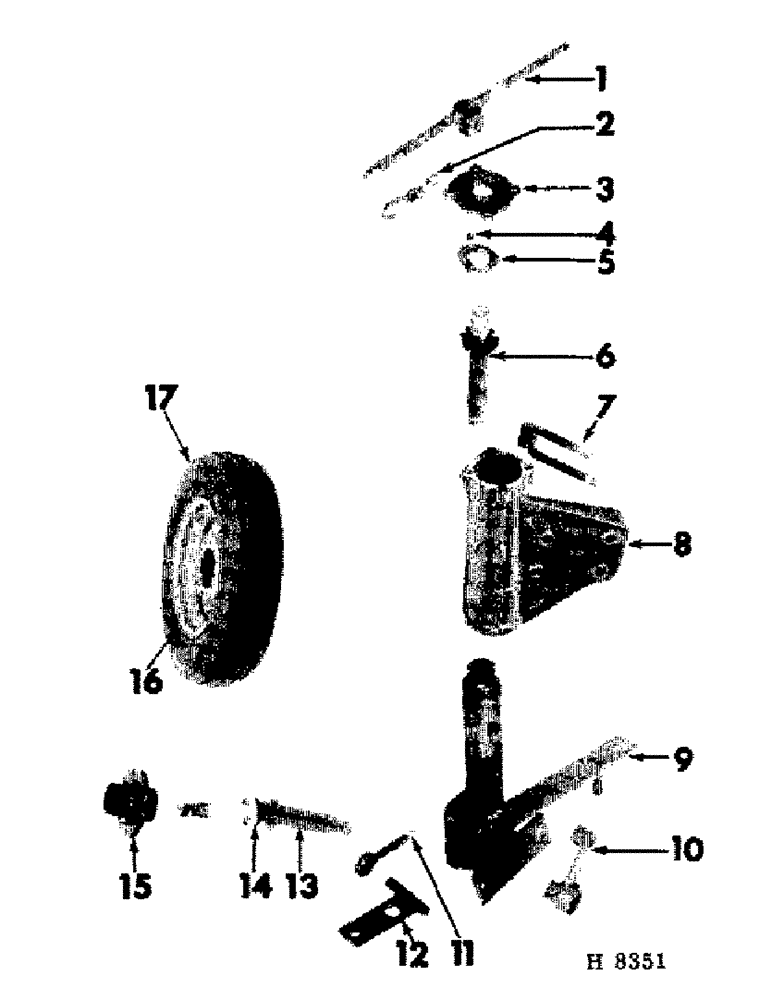

Запчасти Case IH 110 (01-09) - FRONT FURROW WHEEL (SPECIAL) (QUICK ADJUSTABLE)

1

604690R11

CRANK

W/SLEEVE

1шт.

3/8 X 2" SPIROL PIN

1шт.

2

604704R91

HOOK

AND CHAIN, locking

1шт.

3

604687R1

CAP, adjusting bracket

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7/16 X 1-1/4" HEX-HD. MACH. BOLT

3шт.

7/16 X 1-1/2" HEX-HD. MACH. BOLT

1шт.

15/32 X 1 X 16 GA. WASHER

1шт.

7/16" LOCK WASHER

4шт.

4

16012R1

BALL

steel 3/8"

16шт.

5

604688R1

RETAINER, ball

1шт.

6

604689R11

SCREW, adjusting

1шт.

1/4 X 1-1/2" SPIROL PIN

1шт.

1-11/32 X 2 X 16 GA. WASHER (Or as required)

3шт.

7

601630R1

"U" BOLT, adjusting crank bracket

2шт.

3/4" HEX. NUT

4шт.

3/4" LOCK WASHER

4шт.

8

604686R1

BRACKET, adjusting crank

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

9

606123R91

PIVOT, wheel

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8"-90 DEGREE LUBRICATION FITTING

1шт.

5/16 X 1-1/2" COTTER PIN

1шт.

29/32 X 1-1/2 X 11 GA. WASHER

1шт.

10

604727R1

BRACKET

locating

1шт.

3/4 X 2-1/4" STD-HD. DLD. PIN

1шт.

1-9/32 X 2-1/2 X 16 GA. WASHER

2шт.

3/8 X 2" SPIROL PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

604925R1

WASHER

1-11/32 X 2-3/4 X 1/4" AXLE WASHER

1шт.

11

606126R1

EYEBOLT, drawbar guide plate

2шт.

5/8" HEX. NUT

2шт.

5/8" LOCK WASHER

2шт.

12

606129R11

PLATE, drawbar guide

1шт.

13

604743R11

SPINDLE, axle

1шт.

604703R1

NUT

1-1/2" HEX. SLTD NUT

1шт.

1/4 X 2" COTTER PIN

1шт.

14

604701R91

BALL BEARING

axle

2шт.

15

604685R1

HUB

wheel

1шт.

16

604700R91

RIM

DISK AND RIM

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL BOLT

6шт.

17

TIRE, 5.90 x 15", 4 ply implement type pneumatic (Special)

1шт.

17

TIRE, 6.70 x 15", 6 ply implement type pneumatic (Regular)

1шт.

17

TUBE, 5.90 x 15", inner (Special)

1шт.

17

TUBE, 6.70 x 15", inner (Regular)

1шт.
