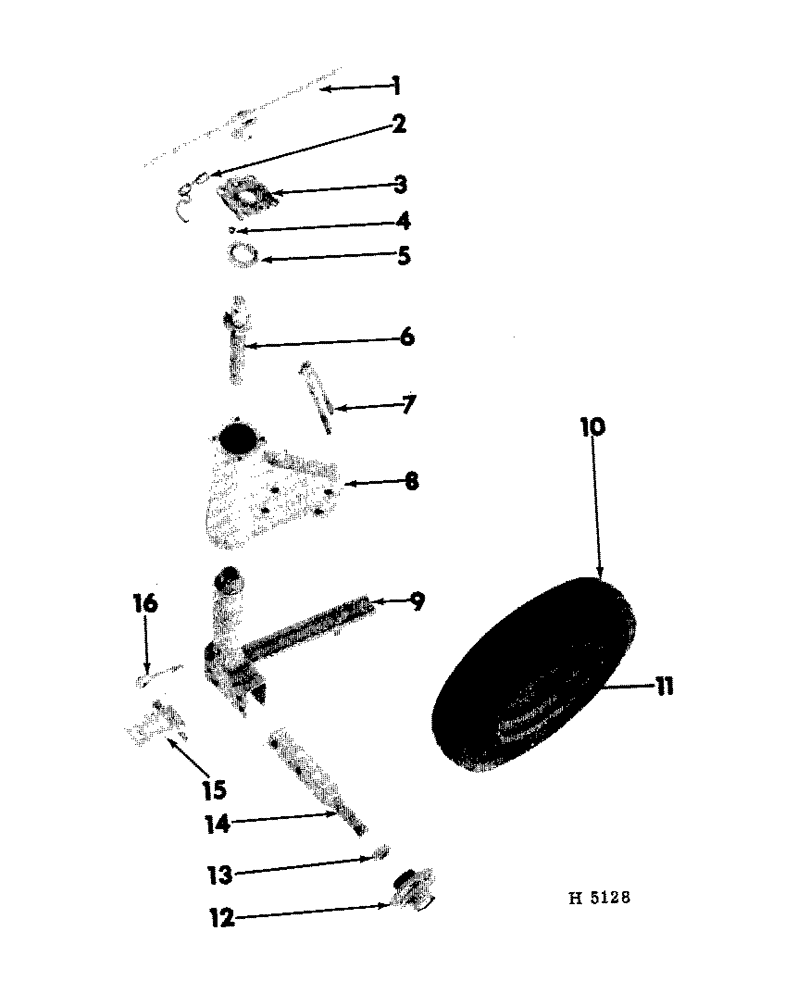

Запчасти Case IH 110 (01-08) - FRONT FURROW WHEEL

1

604690R11

CRANK

1шт.

3/8 X 2" SPIROL PIN

1шт.

2

604704R91

HOOK

AND CHAIN, locking

1шт.

7/16 X 1-1/2" MACH. BOLT

1шт.

7/16" LOCK WASHER

1шт.

3

604687R1

CAP, adjusting crank bracket

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7/16 X 1-1/4" MACH. BOLT

3шт.

7/16 X 1-1/2" MACH. BOLT

1шт.

15/32 X 1 X 16 GA. WASHER

1шт.

7/16" LOCK WASHER

4шт.

4

16012R1

BALL

3/8" steel

16шт.

5

604688R1

RETAINER, ball bearing

1шт.

6

604689R11

SCREW, adjusting

1шт.

1/4 X 1-1/2" SPIROL PIN

1шт.

1-11/32 X 2 X 16 GA. WASHER

3шт.

7

601630R1

"U" BOLT, front furrow axle bracket

2шт.

3/4" HEX. NUT

4шт.

3/4" LOCK WASHER

4шт.

8

604686R1

BRACKET, adjusting crank

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

9

604705R91

PIVOT ASSEMBLY, front furrow wheel

1шт.

3/4 X 3-3/4" MACH. BOLT W/NUT

2шт.

5/16 X 1-1/2" COTTER PIN

1шт.

29/32 X 1-1/2 X 11 GA. WASHER

1шт.

3/4" LOCK WASHER

2шт.

10

TIRE, 5.90 x 15", 4 ply implement type pneumatic (Special)

1шт.

10

TIRE, 6.70 x 15", 6 ply implement type pneumatic (Regular)

1шт.

10

TUBE, 5.90 x 15", inner (Special)

1шт.

10

TUBE, 6.70 x 15", inner (Regular)

1шт.

11

604700R91

RIM

DISK AND RIM

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL BOLT

6шт.

12

604685R1

HUB

wheel

1шт.

13

604701R91

BALL BEARING

axle spindle

2шт.

14

604691R1

SPINDLE

front furrow axle

1шт.

604703R1

NUT

1-1/2" HEX. SLTD. NUT

1шт.

1/4 X 2" COTTER PIN

1шт.

15

601091R91

PLATE, drawbar guide

1шт.

16

601073R1

EYEBOLT, drawbar guide plate

1шт.

5/8" HEX. NUT

1шт.

5/8" LOCK WASHER

1шт.
