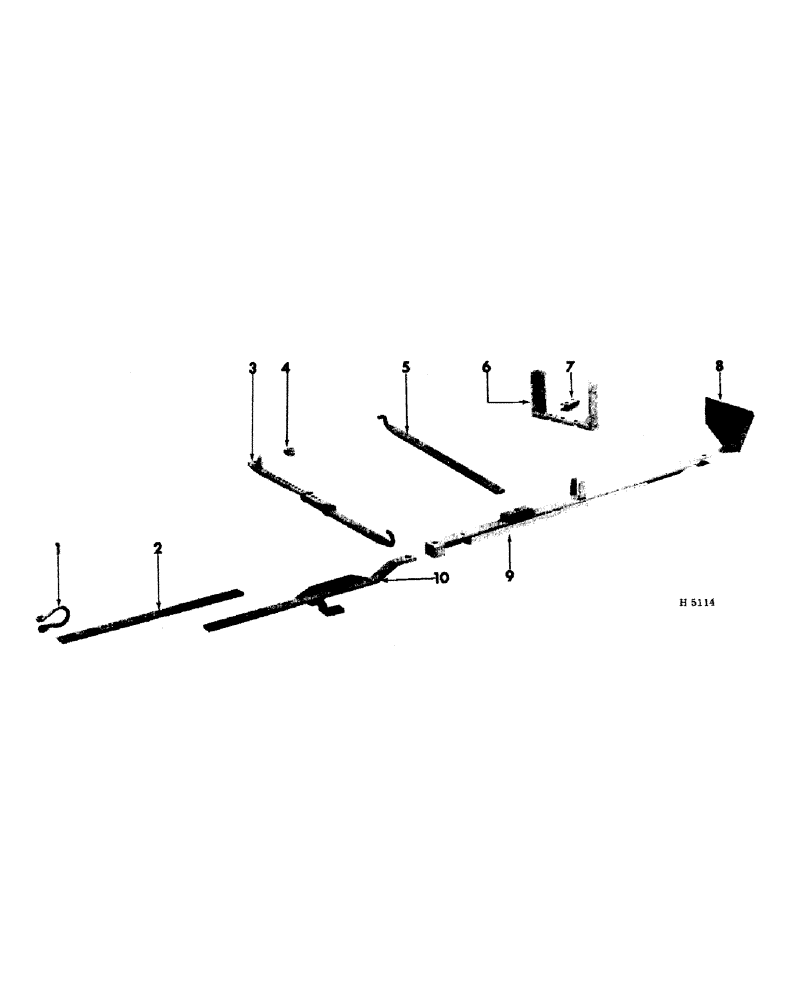

Запчасти Case IH 110 (01-07) - HITCH ASSEMBLY

1

PO13563

CLEVIS COUPLING

CLEVIS, tractor hitch

1шт.

3/4 X 3-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/4" COTTER PIN

1шт.

2

604677R1

EXTENSION, hitch

1шт.

3/4 X 2-1/2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

3/4" CAD-PLTD. LOCK WASHER

2шт.

3

605273R91

LINK ASSEMBLY, guide (9 ft.)

1шт.

5/8 X 2 1/8" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

5/16 X 1-1/2" COTTER PIN

1шт.

3

604684R91

LINK ASSEMBLY, guide (13-1/2 ft. & 18 ft.)

1шт.

5/8 X 2-1/8" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

5/16 X 1-1/2" COTTER PIN

1шт.

4

PO1517

STEERING KNUCKLE

KNUCKLE, front steering arm

1шт.

5

605265R1

STABILIZER, (9 ft.)

1шт.

5/8 X 2" CAD-PLTD. MACH. BOLT W/NUT (For transport)

1шт.

PO20069

7/8 X 4-7/8" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

5/8" CAD-PLTD. LOCK WASHER (For transport)

1шт.

5

601078R2

STABILIZER, (13-1/2 ft. & 18 ft.)

1шт.

5/8 X 2" CAD-PLTD. MACH. BOLT W/NUT (For transport)

1шт.

PO20069

7/8 X 4-7/8" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

5/8" CAD-PLTD. LOCK WASHER (For transport)

1шт.

6

605272R91

BRACKET ASSEMBLY, hitch support (9 ft.)

1шт.

5/8 X 7-1/2" CAD-PLTD. MACH. BOLT W/NUT

4шт.

5/8" CAD-PLTD. LOCK WASHER

4шт.

7

601100R1

CLEVIS, hitch support bracket (9 ft.)

1шт.

PO20525

PIN,7/8" x 2 3/8"

7/8 X 2-3/8" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/2" COTTER PIN

1шт.

8

604619R11

SUPPORT ASSEMBLY, hitch (13-1/2 ft. and 18 ft.)

1шт.

1/2 X 7-1/4" CAD-PLTD. MACH. BOLT W/NUT

6шт.

1/2" CAD-PLTD. LOCK WASHER

6шт.

9

605269R12

MEMBER ASSEMBLY, main hitch front (9 ft.)

1шт.

600539R1

7/8 X 3-7/16" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/2" COTTER PIN

1шт.

9

604681R2

MEMBER ASSEMBLY, main hitch front (13-1/2" ft.)

1шт.

551681R1

7/8 X 2-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/2" COTTER PIN

1шт.

9

604682R12

MEMBER ASSEMBLY, main hitch front (18 ft.)

1шт.

551681R1

7/8 X 2-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/2" COTTER PIN

1шт.

10

604674R11

BAR ASSEMBLY, hitch

1шт.

604683R1

HEADED PIN,1" x 4 1/2"

1 X 4-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-3/4" COTTER PIN

1шт.
