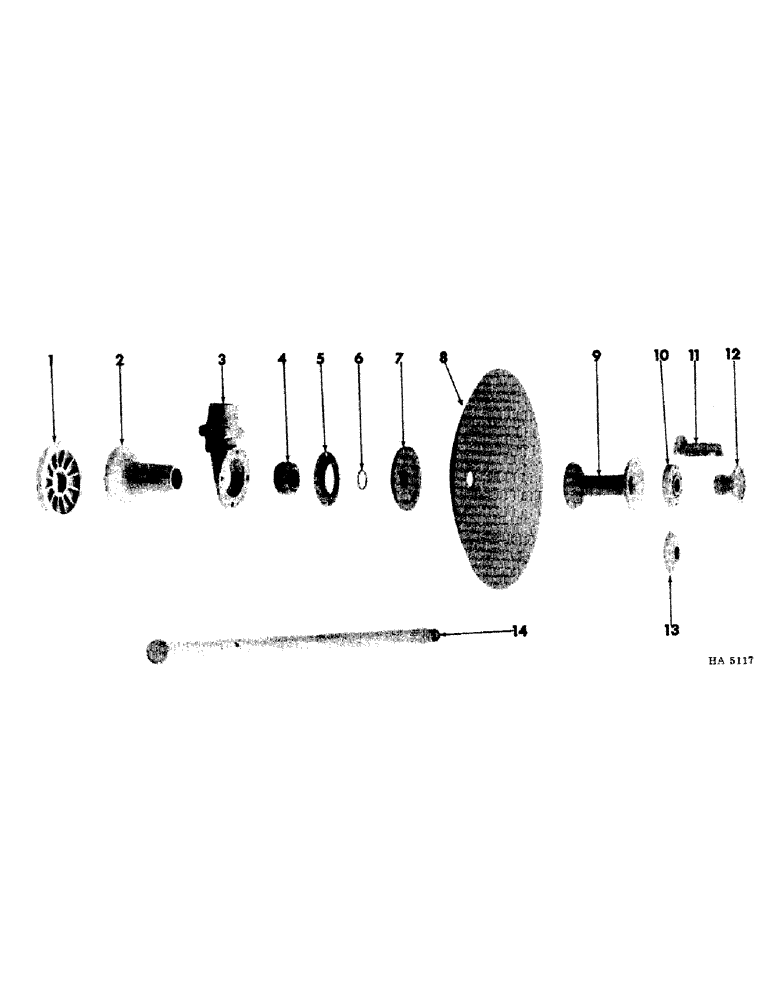

Запчасти Case IH 110 (01-06) - GANG ASSEMBLY

1

604551R1

WASHER

rear gang

1шт.

2

604544R1

SPACER

bearing left

1шт.

3

604566R1

SUPPORT ASSY.

STANDARD, anti-friction bearing

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3/8 X 3/4" CAD-PLTD. MACH. BOLT

1шт.

3/8 X 1" CAD-PLTD. CARRIAGE BOLT W/NUT

3шт.

1/2 X 3-1/4" STD-HD. DLD. PIN

2шт.

3/16 X 1" COTTER PIN

2шт.

3/8" CAD-PLTD. LOCK WASHER

4шт.

4

ST607

BEARING, gang

1шт.

5

652386R1

FLANGE

RETAINER, bearing

1шт.

6

604640R1

WASHER, gang (Used only with 604634R1, 9 gauge disk (Special))

1шт.

7

604545R2

CAP

SPACER, bearing right

1шт.

8

604633R1

DISC

DISK, carbon steel, 22" dia. x 6 gauge (Special)

1шт.

8

604634R1

DISK, carbon steel, 22" dia. x 9 gauge (Special)

1шт.

8

604635R1

DISK, alloy steel, 22" dia. x 6 gauge (Special)

1шт.

8

604636R1

DISC

DISK, carbon steel, 24" dia. x 3/16" (Regular)

1шт.

8

604637R1

DISC

DISK, alloy steel, 24" dia. x 3/16" (Special)

1шт.

8

604638R1

DISC

DISK, carbon steel, 26" dia. x 3/16" (Special)

1шт.

8

604639R1

DISC

DISK, alloy steel, 26" dia. x 3/16" (Special)

1шт.

9

604555R1

SPOOL, spacing

1шт.

10

604553R2

SUPPORT, flexible gang connection

1шт.

11

604562R1

HUB, flexible gang connection

1шт.

3/8 X 1-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

1/2 X 1-3/8" CAD-PLTD. MACH. BOLT

3шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

1/2" CAD-PLTD. LOCK WASHER

3шт.

12

604560R1

BALL, flexible gang connection

1шт.

13

604550R2

WASHER

front gang

1шт.

14

604589R4

BOLT, gang arbor

1шт.

606160R1

NUT

1-1/2" HEX. SLTD. JAM NUT

2шт.

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

1-1/2" HEX. JAM NUT

2шт.

218448

HANDLE

1-17/32 X 2-1/2 X 7 GA. WASHER

2шт.

5/16 X 3" COTTER PIN

2шт.

14

604590R3

BOLT, gang arbor rear

1шт.

606160R1

NUT

1-1/2" HEX. SLTD. JAM NUT

2шт.

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

1-1/2" HEX. JAM NUT

2шт.

605990R1

1-17/32 X 2-1/2 X 7 GA. WASHER

2шт.

5/16 X 3" COTTER PIN

2шт.
